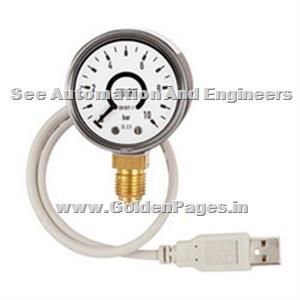

Bourdon Tube Pressure Gauge With Usb Interface

Design EN 837-1 Nominal size in mm 50 Accuracy class 2.5 Scale ranges 0 ... 1.6 to 0 ... 400 bar or all other equivalent vacuum or combined pressure and vacuum ranges Pressure limitation Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: Full scale value Permissible temperature Ambient: -20 … +60 °C Medium: +60 °C maximum

Other Details:


• USB interface for measured-value display on the PC
• Non-contact sensor (wear-free)
• Nominal size 50
• Scale ranges 0 ... 1,6 bar to 0 ... 400 bar

Specifications:

Pressure limitation:


• Steady: 3/4 x full scale value
• Fluctuating: 2/3 x full scale value
• Short time: Full scale value

Permissible temperature:


• Ambient: -20 … +60 °C
• Medium: +60 °C maximum
•
