The Universal Penetrometer is employed for testing a wide variety of materials as measured by penetration of weighted needles or cones. Main applications are for bituminous materials, but waxes, greases, foods, and pharmaceuticals are among other products tested. Penetration is read from a 5" (127mm) diameter indicator dial of 0-400 divisions, each representing 0.1mm of penetration. Global offers heavy-duty units for manual and automatic use and a lighter, portable model for field work or for users with limited work load or limited budget. All meet ASTM and IS standards when fitted with proper needle or cone.

Description :-
Unit consists of steel balls and brass rings as per IS specified dimensions, ball guide for ball centering, support for the ring, all mounted in a beaker which is provided with magnetic stirrer and a Immersion heater to heat the liquid inside. Temperature is maintained with the help of a programmable digital temp. Controller provided with PT100 sensor to achieve 5 degree C/min. temperature rise.


Types :- Kinematic viscosity bath (As per IS: 1206 (part III) - 1976)

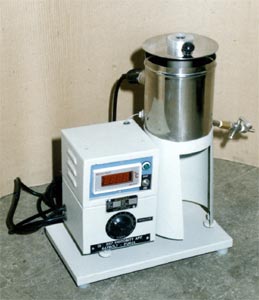

For Bitumen Emulsion for Roads (Anionic type): the instrument is basically used to cover the standard of physical & chemical requirements of bitumen emulsion (Anionic type) for roads. The apparatus consists of oil tubes made entirely of brass material As per laid down dimension .the oil tube is housed in cemme in a cylindrical SS bath with Electrical heating coil & Stirring arrangement & timer .A receiver flask of 60ml is kept at bottom just below Drain of oil tube .a sprit level is given along with the apparatus to maintain the perfect level of whole instrument .the instrument is mounted on a powder coated CRCA platform for easy accessibility .By following the test procedure laid down in above is standard gives perfect result .For measuring viscosity by say bolt furol method.

All - Glass water distillation is a unique & intelligent Water distillation unit. The unit incorporates all Borosilicate glass parts, viz, Jacketed condenser, glass boiler, quartz silica tube, automatic water level tube etc. The heating element is ceramic bobbin heater with Nichrome heating wire. The unit has ultra unique feature for automatic water level maintain by solid -state device. It gives audible alarm when the water level is insufficient. The distillates of unit have very low conductivity (less than 1 mho). The company has two model viz, 1.5 liters/hr distillation water output for continuous run & 4.5 liters/hr capacity. Both the unit comes in 3phase/single phase electrical power supply model. The whole unit of the system is housed in power - coated GI sheet with excellent look. The unit is totally hassle & maintenance free with intelligent & user friendly.

Construction :-
The unit is Laboratory type, with a double walled construction. The Inner Chamber is made of Stainless Steel (SS-304) 22G. The outer chamber is made of GI / CRCA, with powder coated finish in two tone colour (Stainless Steel Buffed finished outer chamber can also be provided on request). Glass wool insulation of 65mm is present in between the walls to avoid heat dissipation. The Control panel is located at the top of oven. The heater compartment is at the bottom. A Flush door fitting coupled with virgin silicon square rubber gasket of 15mm & special lock and handle arrangement for locking the door is provided for perfect sealing of chamber. The Tray is made of GI mesh, Crimped and of size ¾ ”x 12G wire thickness with stainless steel Border. The spacing between the shelves is 4”.

Highly stable viscosity bath temperatures.
Digital measurement and display.

The Viscosity Bath is designed to simplify ASTM D 445; IS-1206 (Part III)-1978 kinematic viscosity testing. A top-mounted controller keypad permits quick entry of bath set point temperature while a sophisticated microprocessor controls the bath heating and stirring. To further enhance the input, the unit accommodates up to a maximum of six individual capillaries.

The HVB features a measuring range of 5ºC to 230ºC and can be used with mineral oil, silicone oil, or water as the bath media. Bath

temperature is displayed on a bright, easy-to-read digital display. In addition, the unit features a built-in over-temperature circuit and bath liquid level detector to automatically cut heater power in the event of thermal runaway or insufficient bath media.

Construction :-
The heating plates are rectangular in shape and made up of MS Cast Iron plates with Groves for Heating Coil (SS Plate can also be provided on request) .The top plates overhang by supporting MS pillar which allows air insulation between plate and control Compartment to keep it cool. Long lasting Nicrome Heating wire with ceramic Beads are used for the heating process. A choice of Energy Regulator / Digital Temperature controller is provided.

Laboratory Muffle Furnace of Max Temp :-
1200 c Working temp: 1150 degree c. MS body with epoxy powder coat finish & door with Heat resistance hand.

Double Decker type construction with muffles body at top & control box at bottom with 1"solid spacer in between Coil type Heater of Kanthal wire wounded on muffle with cerewool blanket &Brick insulation of 4" to have skin temp. of furnace less than 50 C Hinge door with lock system to open/close muffle Furnace. The control panel: At base of furnace with controller, stand by solid-state fuse with Cr/Al Thermocouple. Microprocessor based temperature controller cum indicator controls heating
