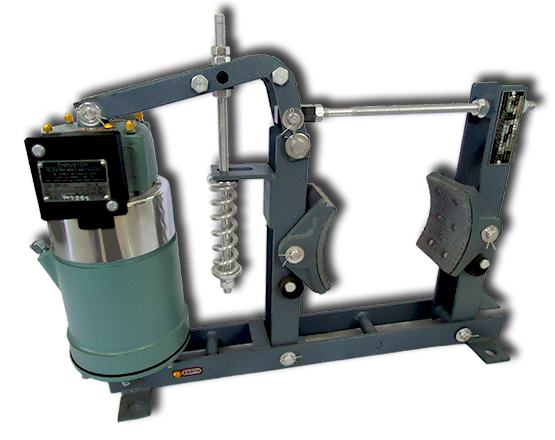

Electro Hydraulic Thrustor Operated Brakes Type Mtob

Electro Hydraulic Thrustor Brake is a heavy duty brake designed to withstand the severe duty conditions imposed by heavy duty machinery in various industries. Electro Hydraulic Thrustor transmits useful thrust through the lever onto the brake shoe thereby releasing the brake. When the power is switched OFF, the brake is smoothly applied because the hydraulic thrust acting against the spring pressure is gradually reduced.

Non-Asbestos (Asbestos-Free) lining can be supplied as optional at extra cost.

Electro Hydraulic Thrustor: It consists of a cylinder filled with oil and having a centrifugal pump at the bottom of the cylinder. The centrifugal pump is driven by a 3phase fractional horse power Class ‘B’ insulated, continuously rated rotor and stator. Specially designed radial impeller permits operation of the pump in either direction of rotation. Thrustor conforming to IP-55 & adjustable time lag on both up & down stroke can be supplied at extra price.

100 mm to 1000 mm diameter, Torque range from 61 kgm to 2500 kgm

Following information are required to quote

HP / KW of Motor
RPM of Motor
Shaft dia or Brake Drum dia
