Electro Hydraulic Thrustor Brake is a heavy duty brake designed to withstand the severe duty conditions imposed by heavy duty machinery in various industries. Electro Hydraulic Thrustor transmits useful thrust through the lever onto the brake shoe thereby releasing the brake. When the power is switched OFF, the brake is smoothly applied because the hydraulic thrust acting against the spring pressure is gradually reduced.

Non-Asbestos (Asbestos-Free) lining can be supplied as optional at extra cost.

Electro Hydraulic Thrustor: It consists of a cylinder filled with oil and having a centrifugal pump at the bottom of the cylinder. The centrifugal pump is driven by a 3phase fractional horse power Class ‘B’ insulated, continuously rated rotor and stator. Specially designed radial impeller permits operation of the pump in either direction of rotation. Thrustor conforming to IP-55 & adjustable time lag on both up & down stroke can be supplied at extra price.

100 mm to 1000 mm diameter, Torque range from 61 kgm to 2500 kgm

Following information are required to quote

HP / KW of Motor
RPM of Motor
Shaft dia or Brake Drum dia

D.C.Electro Magnetic Shunt Brake is designed to withstand a large number of switching operations per hour. The minimum number of pivots ensures minimum wear & tear of moving parts. The Brakes are manufactured for different voltages and are supplied if necessary with Transformer Rectifier Panels. This brake confirms to IPSS specification.

100 mm to 600 mm diameter, Torque range from 2.2 kgm to 650 kgm

Following information are required to quote

HP / KW of Motor
RPM of Motor
Shaft dia or Brake Drum dia

‘ELEKTROMAG’ Electro Magnetic Single Phase A.C. Brake is rugged constructed to withstand the effect of mechanical shocks and vibrations. Brake complies to B.S Specification.

A hand release lever is provided for manual release of the brake. A.C. EM Brakes can also be supplied with Dust Proof Cover made up of sheet steel for only the magnet at extra cost.

100 mm to 400 mm diameter, Torque range from 2.2 kgm to 80 kgm

Following information are required to quote

HP / KW of Motor
RPM of Motor
Shaft dia or Brake Drum dia

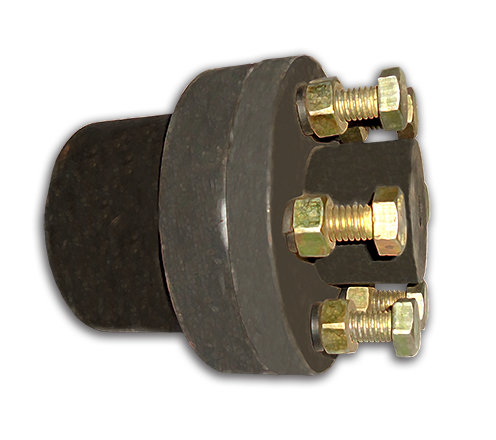

These are used to couple Motor shaft and Gear Shaft with the capability of holding Brakes. We manufacture these coupling in different sizes according to the Brakes Drum Diameter (100mm dia. – 400mm dia.). The Coupling are made of Cast Iron and supplied with Pilot Bore.

This is used for the brake shoe to brake, motor shaft to bring the motor to a stop. We manufacture & supply Brake Drum from 100mm-600mm dia. The Coupling are made of Cast Iron and supplied with Pilot Bore.
