Being the market leader in this domain, we are actively committed towards offering Electromagnetic Flow Meter. The offered flow meter is developed by our professionals utilizing optimum quality components and leading technology in conformity with the set standards of industry. This flow meter accurately measures the flow rate of conductive liquids & slurries in closed pipes. Our valuable clients can avail this flow meter from us at affordable rates.

Features:


• Provides wide flow ranges
• Pulsed DC coil excitation
• Outstanding accuracy

Other Details:


• Indication through LCD / LED
• Full bore type
• Simple & cost effective structure
• Microprocessor based
• Provides wide flow ranges
• Outstanding accuracy
• Pulsed DC coil excitation
• Operates over broad ranges of pressure & temperature
• Easy maintenance as no moving parts
• Flame-proof, IP-65, IIA, IIB CMRI certified housing
•

We are an acclaimed name in offering a superior quality range of AXF Magnetic Flowmeter Integral Flowmeter /Remote Flow tube which is a sophisticated product with outstanding reliability and ease of operation. The product offered by us is accessible in assorted specifications as per the variegated needs of customers. This product is featured with three line LCD display with infrared programming. We provide this product in a committed time period with quality packing.

Features:

• Enhanced dual frequency excitation method
• Lower minimum fluid conductivity
• Diagnostics to detect insulating coatings on the electrodes

Other Details:


• Enhanced dual frequency excitation method: Selectable 165 Hz component ensures quicker response and greater stability in high concentration slurries
• Lower minimum fluid conductivity: With the newly designed AXF flow converter, improvements to the input circuit now permit the measurement of fluids with conductivity as low as 1 µS/cm
• Diagnostics to detect insulating coatings on the electrodes: The amount of insulating material on the electrode is constantly monitored to determine when maintenance should be performed
• Optional replaceable electrodes: Simplifies electrode maintenance and cleaning
• Improved accuracy specification: Standard performance specification of 0.35% of reading
• Optional high accuracy calibration rated at 0.2% of reading
• Three line LCD display with infrared programmings
•

Our company is widely appreciated in offering Venturi Tube to the clients. This product is broadly known for robust construction, corrosion resistance, easy installation and elevated service life. Venturi Tube is designed by a team of experts using premium quality material and sophisticated technology. Offered range is manufactured by utilizing exceptional quality raw material and pioneering techniques by deft professionals. This product can be availed from professionals in various sizes and dimensions according to the customers' requirements and widely demanded in various industries.

Features:

• High stress stability
• Rugged design
• Smooth finish

We feel immense proud to acquaint ourselves as the leading manufacturer and supplier of Glass Tube Roatameters. Our product is developed with precision using high quality components & leading techniques following the set industry norms. The product offered by us is design for industrial usage high precision tapered borosilicate glass tubes. Clientele can avail this product from us at nominal prices.

Features:


• Heavy Duty Design with Maximum Visibility
• Easy to Maintain and Replace
• Two Tone Powder Coated Excellent Finish

Other Details:


• Various Material of Construction
• Line Size from 15 NB to 80 NB
• Heavy Duty Design with Maximum Visibility
• Ranges between 2.0 LPH to 25000 LPH
• Two Tone Powder Coated Excellent Finish
• No Threads in Body, Avoids Corrosion
• Face-To-Face Distance: 500 mm
• Single Piece (jointless) PTFE / PP claded end connections
• Easy to Maintain and Replace
• Suitable for on Line Installation
• Measuring Span: 1:10
• Glass: Borosilicate
• Linear Scale
• Slip on Flange - facilitates change in line of sight
• Accuracy: +/- 2% of Full Scale

Specifications:


• Meter Body: Powder coated M.S. optional SS 304, SS 316 etc
• Float: SS 316L, SS 316, PTFE, Monel, PVC etc
• Wetted Parts: SS 316L, SS 316, SS 304, MS PTFE, PVC, P.P., Monel etc
• Packings: Neoprene, PTFE , Silicon etc
• Tube: Borosillicate glass
• Scale Length: 175-225 mm
• Temperature Max.: Upto 200°C depends on gland
• Connections: Flanged, threaded etc
• Accuracy: ±2% of full scale
• Repeatibility: 0.5%
• Rangeability: 10:1
• Accessories: Hi- low flow switch, Steam jacketed

Owing to our highly-advanced infrastructure unit and immense knowledge, we are engaged in manufacturing and supplying Orifice Plate with Annular Chamber. This orifice plate is ideal for non-corrosive and corrosive gases, vapors and liquids. Our orifice plate is developed from the top quality material & contemporary techniques keeping in pace with industry norms. The offered orifice plate is provided in assorted specifications to meet the needs of the patrons.

Features:


• Suitable for wide ranges of temperature and pressure
• No calibration required as the process is standardized
• The electronics required in addition

Benefits:


• Orifice flowmeters are very robust and can be used in a wide range of nominal diameters
• Suitable for wide ranges of temperature and pressure
• No calibration required as the process is standardized
• The electronics required in addition can be used over a long distance from the measuring location
• The differential pressure measurement is well known and has a large installed base

Specifications:


• Nominal Sizes: From DN 10 to DN 1000, From ½ inch to 40 inches
• Temperature Range: From -60 to 570 °C, From -76 to 1058 °F
• Nominal pressure: PN 6 to PN 160
• Seals: smooth, with a return, with groove
• Materials: Ring chambers normal steel, 1.0460 orifice, normal stainless steel, 1.4571
• Tappings: Normal steel, 1.0305

Orifice Flange Assemlies are mode to AGA/ASME recommendation and provide means to flow measurement. Assemblies to other international Standards viz.-ISO,BS,DIN etc. are also available.
Orifice flanges cover complete range of sizes and  as . are available on request. These flanges are available in various types such as Weld neck, slip on, Screwed with facing FF, therefore, RJ, TG etc various types of tappings available are viz. Flange, corner and D-D/2 Orifice Bore calculatoins can be carried out as per . Orifice Flange Asemblies are supplied ready to install in Piplines complete with tud, nuts, Jack Bolts, Gaskets and Drain Pulgs. Orifice Flanges are manufactured in broad variety of material to ASTM Standard viz. Concentric Bore: For standard fluid condition an Orifice Plate would have a centrally located orifice bore Eccentric Bore: The orifice would be set off center and tangent to the bottom inside line I.D. to allow heavy solid or sluries to flow through the orifice. Also used when the Orifice bore is less than 1" in diameter and the line require vent od drain hole. Quadrant Bore: The quadrant bored orifies plate has a quarter round upstream edge and is designed for viscosity flows with Reynolds Number below 10,000

Other Details:


• Available with raised face or RTJ face
• Used for flow/rate metering of piping systems
• SFF can supply the plate, pressure connection holes, and jack screws with the orifice flange unit
• Stud Bolts: A.S.T.M. A-193, Grade B 7 Alloy Steel
• Hexagonal Nuts: A.S.T.M. A-194, Grade 2 H Semi-finished Carbon Steel
• Jackscrews: per union. C-1038 Heat-treated Carbon Steel below 6” length. A-307 Carbon Steel, 6” andlonger.
• Pipe Plugs: Forged steel, hex head.
• Gaskets: per union. Precision cut, treated Asbestos

Specifications:


• Pressure Ratings: upto ASA 2500 of ANSI B16.36
• Standards: viz,-API,MSS,BS and DIN etc
• Tapping Size: ASME MFC-3M, ASME 19.5, ISO 5167/ BS,1042, R.W. Miller and L.K. SPINK etc

We are a topnotch Manufacturer, Supplier, and Exporter of premium quality Metal Tube Rotameter (FDI-MTR-201) which is appreciated by clients all over the world. This instrument is relied upon by our clients for measuring the flow of liquids or gases in their industries. The most prominent among all where this Measuring Instrument finds application are the food & beverages industry, oil drilling fields, chemical plants, and petroleum industry. The Metal Tube Rotameter (FDI-MTR-201) offered by our enterprise is the outcome of a perfect amalgamation among the high grade inputs, advanced technologies and rigorous quality testing. Without the support of our trusted vendors and adroit professionals hired by us, we could have never earned the accolades and trust of our customers. This product is highly appreciated by them for its durable service life, stable performance, easy maintenance, and nominal pricings.

Other Details:


• Quality raw materials used
• High tech machinery used
• High accuracy
• Available in in-line and panel mount styles
• One piece meter body acrylic Body
• Quick Lock Half Union Adaptors
• Permanent Silk Screen Printing with black ink for optimum contrast
• Enhanced meter readability using precision textured light admitting surface on the rear of the body flow control valve model is available.
• Measure liquid and Gas at any Range.

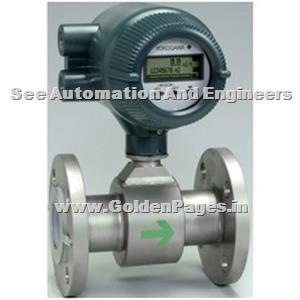

The AXF magnetic flowmeter series are sophisticated products with outstanding reliability and ease of operation, developed on the basis of decades of field proven experience. The combination of a replaceable electrode and the diagnostic to defect adhesion level on the electrodes dramatically improves maintainability. The AXF employs the fluid noise free “Dual Frequency Excitation Method” and the newly added “Enhanced Dual Frequency Excitation Method” as an option for more difficult applications to ensure greater stability and quicker
response.

Other Details:


• Enhanced dual frequency excitation method: Selectable 165 Hz component ensures quicker response and greater stability in high concentration slurries
• Lower minimum fluid conductivity: With the newly designed AXF flow converter, improvements to the input circuit now permit the measurement of fluids with conductivity as low as 1 µS/cm
• Diagnostics to detect insulating coatings on the electrodes: The amount of insulating material on the electrode is constantly monitored to determine when maintenance should be performed
• Optional replaceable electrodes: Simplifies electrode maintenance and cleaning
• Improved accuracy specification: Standard performance specification of 0.35% of reading. Optional high accuracy calibration rated at 0.2% of reading
• Three line LCD display with infrared programmings
•

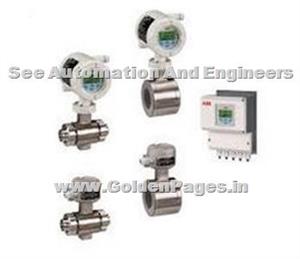

ABB is an established world force in the design and manufacture of instrumentation for industrial process control, flow measurement, gas and liquid analysis and environmental applications. As a world leader in process automation technology our worldwide presence, comprehensive service and application oriented know-how make ABB a leading supplier of flow measurement products.

Other Details:


• ProcessMaster improves your process control by as much as 60% using innovative signal processing and enhanced noise filtering technology
• FSM4000 flow meter provides best in class performance for Pulp & paper, Mining and other high solid content flow measurement
• With its robust measurement and ease of installation WaterMaster is the rugged product you can rely on in the water and waste water industry.
• In water applications where power and communications are limited the AquaMaster, with its battery and wireless communications is

Specification:


• Sizes: DN 3 … 100 (1/10 … 4")    DN 1 … 100 (1/25 … 4")    DN 1 ... DN 100 1/25 ... 4 in.
• Accuracy: 0,4% of rate,
• Option: 0,2% of rate, 0,3% of rate,
• Option: 0,2% of rate, 0.5 % of rate
• Medium Temperature: -40 ... 180 °C -55 ... 400 °C -50 ... 200 °C
• Ambient Temperatures: -25 ... 60 °C -55 ... 70 °C -20 ... 60 °C
• Pressure Ratings: PN 10-40, 150-300 lb, JIS K 10

The SITRANS F M MAG 5000 is a microprocessor-based transmitter engineered for high performance, easy installation, commissioning and maintenance. The transmitter is truly robust, cost-effective and suitable for all-round applications and has a measuring accuracy of ± 0.4% of the flow rate (incl. sensor).

Other Details:

In order to have a complete flow meter, please combine it with one of the following MAG sensors

SITRANS F M MAG 1100: Small sizes and wafer design

SITRANS F M MAG 1100 F: Food and pharma applications

SITRANS F M MAG 5100 W: Water applications

SITRANS F M MAG 3100: Chemical and process applications

SITRANS F M MAG 3100 P: Comprehensive product program

The transmitter can be combined with the energy calculator SITRANS FUE950

Applications:

Water and waste water

General process industry

Food & beverage industry

Benefits:

Cost effective transmitter with good performance

SENSORPROM technology facilitates easy transmitter without loss of data and accurace

Multiple functional output for process control

Multi-lingual display and keypad interface

Comprehensive diagnostic and service menu enhancing trouble shooting and meter verification

SITRANS F M MAG 1100 is a Wafer Design Sensor in stainless steel with highly resistant liners and electrodes and is designed for the general industry environment. The flangeless wafer design meets all flange standards. The SITRANS F M MAG 1100 is used in all industries where the corrosion-resistant stainless steel housing and the highly resistant liner and electrodes fit even the most extreme process media.

Other Details:

In order to have a complete flowmeter please combine it with one of the following MAG transmitters

SITRANS F M MAG 5000: Cost efficient transmitter, accuracy of 0.4 % of flow rate

SITRANS F M MAG 6000: Bus communication, batch function and accuracy of 0.2 % of flow rate

SITRANS F M MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of 0.2 % of flow rate

Applications:

Process industry

Chemical industry

Water treatmen

Benefits:

Compact wafer design meets EN 1092, DIN and ANSI flange standards

Easy Plug & Play field changeability of transmitter

Compact or remote mounting possible

Highly resistant liner and electrodes that are suitable for most extreme process media

Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprint

The SITRANS F M MAG 5100 W with its patented liners of hard rubber NBR or ebonite and EPDM is a sensor for all water applications such as ground water, drinking water, cooling water, waste water, sewage or sludge applications.

Other Details:

In order to have a complete flowmeter, please combine it with one of the following MAG transmitters

SITRANS F M MAG 5000: Cost efficient transmitter, accuracy of 0.4 % of flow rate

SITRANS F M MAG 6000: Bus communication, batch function and accuracy of 0.2 % of flow rate

SITRANS F M MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of 0.2 % of flow rate

The sensor can be combined with the energy calculator SITRANS FUE950

Applications:

Water abstraction

Water distribution network

Waste water and as custody transfer water meter or cooling meter

Benefits:

Short lead time

Rugged NBR hard rubber liner for all water and wastewater applications

EPDM liner specifically for drinking water applications requiring special approvals

Ebonite liner for drinking water, water and wastewater applications

Increased low flow accuracy for water leakage detection (NBR or EPDM liner)

Suitable for direct burial and constant flooding (IP68)

Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprint

The SITRANS F M MAG 3100 P sensor is designed to meet the most common specifications within the chemical and process industries. It has PTFE or PFA liners and Hastelloy electrodes being the ideal combination. The fully welded construction provides a ruggedness that fits almost every flow application.

Other Details:

In order to have a complete flowmeter, please combine it with one of the following MAG transmitters

SITRANS F M MAG 5000: Cost efficient transmitter, accuracy of 0.4 % of flow rate

SITRANS F M MAG 6000: Bus communication, batch function and accuracy of 0.2 % of flow rate

SITRANS F M MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of 0.2 % of flow rate

Applications:

Process industry

Chemical industry

Pulp & paper industry

Benefits:

Short lead time 5 days transportation

Excellent chemical resistance also during high process temperature

Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprints

Approved for hazardous areas

The high-powered flowmeter consists of the SITRANS F M TRANSMAG 2 transmitter and the sensor SITRANS F M 911/E being the best choice for special applications such as pulsating flow, media with low conductivity and high percentage of solids.

Applications:

Pulp & Paper industry

Mining industry

Benefits:

The pulsed alternating field technology give a strong magnetic field, high excitation frequency and stable zero point

Accurate, repeatable, fast responding and stable flow signal on heavy duty applications

SmartPLUG concept with all the calibration data

Compensation for magnetic particles

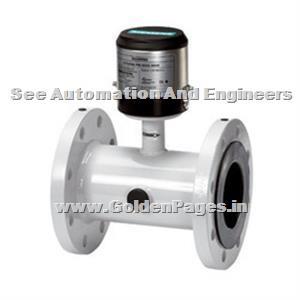

The SITRANS F M MAG 8000 program of battery-operated water meters gives you the flexibility to install a reliable water flow meter virtually anywhere without sacrificing accuracy or performance. No mains power is required. MAG 8000 complies with the custody transfer approvals MID and OIML R49 water meter standards and is specially engineered for stand-alone water applications such as abstraction, distribution network, revenue metering and irrigation.

Applications:

Abstraction and distribution network, Revenue and bulk metering and Irrigration

The SITRANS F M MAG 8000 program features a basic version for general water applications or an advanced version for more advanced functionality and information.

An optional build-in GSM/GPRS Wireless Communication Module opens up for receiving logged flow measurement data via email, SMS and to OPC server – keeps the operator up-to-date regardless of location and makes it possible to change settings without visiting the site.

The flowmeter can be combined with the energy calculator SITRANS FUE950

Benefits:

Simple meter placement - floating chamber IP 68 (NEMA 6P) design ensures continuous filterless performance regardless of position or in-line piping stresses, even when buried underground

Low pressure loss - unrestricted flow tube ensures minimal pressure loss even at high flow rates and reduces overall network system pressure, helping to prevent leakage from burst pipes and excess stress placed on pumping stations

Zero maintenance – no moving parts and 10-year battery life

Bi-directional measurement - only one meter required for measurement in both directions

Installation requires 0D inlet to and outlet from the sensor - eliminating concerns about where the meter is installed

Intelligent meter – capable of leak detection, data logging and error self-detection

Remote capabilities – stay up-to-date on measurement data without having to visit the site through optional GSM/GPRS Wireless Communication Module

The SITRANS FX300 vortex flowmeter provides accurate volumetric and mass flow measurement of steam, gases and liquids as an all-in-one solution with integrated temperature and pressure compensation. The vortex flowmeter product program consists of two types of flow meters, a flange and a sandwich version, making Siemens unique as it covers all possible applications. The flange version is available with a single or dual converter, whereas the sandwich version is only available with a single converter. Both versions have the temperature sensor integrated and the pressure sensor as an option. The SITRANS FX300 vortex flowmeter is available in a compact or remote version (Cable length: 5m, 10m or 15m). This product is also available as a customized product, please see Product Variation Request (PVR). Key applications for the SITRANS FX300 are found in supply processes (auxiliary service), Chemical industry, HVAC, Power plants, Food & beverage industry and Oil & gas industry.

Benefits:

Maintenance-free due to fully welded sensor construction providing excellent stability and reliability

Contains three measuring points in one device with no extra equipment, installation or cabling costs

Saves downtime because of isolation valve, which makes an exchange of pressure sensor possible without interrupting the process

Easy installation because of Plug & Play

Redundant system as a dual transmitter version is available

Flow Transmitter /SITRANS-F-M-MAG-6000-I-6000-I-Ex-de

SITRANS-FC300Flow Sensor

Description / Specification of Sitrans Fug1010 Flow Measuring Instruments

We are involved in offering a wide range of Sitrans Fug1010 Flow Measuring Instruments to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Sitrans Fug1010 Flow Measuring Instruments. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Electric Flow Register

We are involved in offering a wide range of Electric Flow Register to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Electric Flow Register. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Pointek CLS300 is an inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam and interfaces in demanding conditions where high pressure and temperatures are present. The digital version (with PROFIBUS PA) includes a display and provides additional diagnostic features. The Pointek CLS300 is offered in standard and digital versions. The standard version has 3 LED indicators with basic relay or solid-state switch alarms. The digital version provides an integral LCD display for standalone use, with PROFIBUS PA communication (Profile version 3.0, Class B) when required. Solid-state switch alarm is standard. The robust design of CLS300 makes it specifically applicable for heavy solids applications where abrasive materials occur as in the mining industry. The fully potted electronics are unaffected by condensation, dust or vibration. Wetted parts are made of stainless steel or stainless steel with a PFA shield for high chemical resistance. Ceramic inserts are supplied with high temperature CLS300 devices. Materials with low or high dielectric constants can be accurately detected. The unique Active Shield suppresses interference from material buildup. The unique modular design of the Pointek CLS300 provides a wide range of configurations, process connections, extensions and approvals to meet the temperature and pressure requirements of specific applications. The modular design makes ordering easier and reduces stocking requirements. A wide range of probe configurations are available, including rod and cable versions.

Applications:

Liquids, slurries, bulk solids, relatively high pressure and temperature, hazardous areas, milling and mining applications

Benefits:

Patented Active-Shield technology so measurement is unaffected by material buildup in active shield section

Performs in extremely abrasive conditions because of solid rod construction

Standard version: 3 LED indicators for adjustment control, output status and power

Digital version: integral LCD display, and PROFIBUS PA communication

Push-button calibration, full-function diagnostics

Multiple output options

Pointek CLS200 is a versatile inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output, ideal for detection of liquids, solids, slurries, foam and interfaces. The digital version (with PROFIBUS PA) includes a display and provides additional diagnostic features. The Pointek CLS200 is offered in standard and digital versions. The standard version has 3 LED indicators with basic relay and solid-state switch alarms. The digital version provides an integral LCD display for standalone use, and also provides PROFIBUS PA communication (Profile version 3.0, Class B) for connection to a network. The power supply is galvanically isolated and accepts a wide range of voltages (12 to 250 V AC/DC for standard version and 12 to 30 V DC for digital version). The stainless steel and PPS (PVDF optional) materials used in the probe construction provide a temperature rating up to 125 °C ( 257 °F) on the process wetted portion of the probe. The switch responds to any material with a dielectric constant of 1.5 or more by detecting a change in oscillating frequency, and it can be set to detect before contact or on contact with the probe.The CLS200 operates independently of the tank wall or pipe so it does not require an external reference electrode for level detection in a non-conductive vessel such as concrete or plastic.

Applications:

Liquids, slurries, powders, granules, pressurized applications, hazardous areas

Benefits:

Potted construction protects signal circuit from shock, vibration, humidity and/or condensation

High chemical resistance

Level detection independent of tank or pipe earth reference

Insensitive to product buildup due to high frequency oscillation

High sensitivity allows installation in a wide range of liquids, solids or slurry applications

Integral LCD display allows for easy setup of CLS200 when you can configure switching threshold, even under the most demanding process conditions (digital version only)

Extended rod, cable and sanitary versions available

Standard version: 3 LED indicators for adjustment control, output status and power

Digital version: integral LCD display, and PROFIBUS PA communication

SITRANS LPS200 is a rotary paddle switch for point level detection in bulk solids. The paddle switch technology detects full, empty or demand conditions on materials such as grain, feed, cement, plastic granulate and wood chips. The paddle switch can handle bulk densities as low as 15 g/l (2.19 lb/ft³) with the optional hinged vane or 100 g/l (6.25 lb/ft³) with the standard measuring vane. A low revolution geared motor with slip clutch drives a rotating measuring vane which senses the presence of material at the mounted level of the LPS200. As material comes into contact with the rotating paddle, rotation stops, which changes the microswitch state. When the paddle is no longer covered by material, rotation resumes and the relay reverts to its normal condition. The LPS200 has a rugged design for use in harsh conditions in the solids industry. The sensitivity of the paddle can be adjusted for varying material properties like buildup on the vane. The LPS200 comes in a variety of configurations including compact, extended and cable extension. It is equipped with a standard vane which is effective in most applications, but can be configured with a hinged or rectangular vane for increased sensitivity for light materials.

Applications:

Bulk solids such as grain, feed, cement, plastic granulate, wood chips

Benefits:

Proven paddle switch technology for bulk solids

High integrity mechanical seal

Optional switch selectable power supply

Unique friction clutch mechanism

Rotatable enclosure

Optional paddle for use with low density materials

Simple installation through existing process connection

High temperature model and optional extension kit available

Optional fail-safe configuration

SITRANS LVL100 is a compact vibrating level switch for use in liquid applications such as overflow, high, low and demand applications, as well as pump protection. It is ideal for use in confined spaces. SITRANS LVL100 is a compact level switch designed for industrial use in all areas of process technology and can be used with liquids and slurries. With an insertion length of only 40 mm (1.57“), SITRANS LVL100 can be mounted in small pipes and confined space applications. It is also virtually unaffected by the chemical and physical properties of the liquid. The LVL100 can also be used in difficult conditions including turbulence, air bubbles, foam generation, buildup, or strong external vibration. The tuning fork is piezoelectrically energized and vibrates at its mechanical resonance frequency of approximately 1200 Hz. The vibration frequency changes when the tuning fork is covered by the medium. This change is detected by the integrated oscillator and converted into a switching command. The integrated electronics evaluate the level signal and output a switching signal, directly operating connected devices.

Applications:

For use in liquids and slurries

For level measurement, overfill, and dry run protection

Benefits:

Proven vibrating level switch technology for liquids

Compact insertion length of 40 mm (1.57”) for confined space applications

Fault monitoring for corrosion, loss of vibration, or line break to the piezo drive

SITRANS LR200 is a 2-wire, 6 GHz pulse radar level transmitter for continuous monitoring of liquids and slurries in storage and process vessels including high temperature and pressure, to a range of 20 m (66 ft). SITRANS LR200’s unique design allows safe and simple programming using the Intrinsically Safe handheld programmer without having to open the instrument’s lid. It also features a built-in alphanumeric display in four languages. The SITRANS LR200 has a standard Uni-Construction polypropylene rod antenna that offers excellent chemical resistance and is hermetically sealed. The Uni-Construction antenna features an internal, integrated shield that eliminates vessel nozzle interference. Start-up is easy with as few as two parameters for basic operation. Installation is simplified as the electronics are mounted on a rotating head that swivels, allowing the instrument to line up with conduit or wiring connections or simply to adjust the position for easy viewing. SITRANS LR200 features patented Process Intelligence signal-processing technology for superior reliability.

Applications:

Liquid bulk storage tanks, process vessels with agitators, vaporous liquids, high temperatures, asphalt, digesters

Supplementary Components are designed to work with most types of instrumentation to provide enhanced functionality such as remote displays and remote monitoring solutions. Please find more information here

Benefits:

Graphical local user interface (LUI) makes operation simple with plug-and-play setup using the intuitive Quick Start Wizard

LUI displays echo profiles for diagnostic support

Communication using HART® or PROFIBUS PA

Process Intelligence signal processing for improved measurement reliability and Auto False-Echo Suppression of fixed obstructions

Programming using infrared Intrinsically Safe handheld programmer or over a network using SIMATIC PDM

Emerson AMS, or Field Device Tools, such as PACTware or Fieldcare via SITRANS DTM

SITRANS LR250 is your first choice for liquid level measurement in storage and process vessels up to 20 meters (66 ft). With its range of antennas, this transmitter can handle whatever you need it to. Its new flanged and hygienic encapsulated antennas mean corrosive or aggressive materials and hygienic or sanitary requirements are no challenge for this transmitter.

Other Details:

SITRANS LR250 Horn antenna

SITRANS LR250 is a 2-wire, 25 GHz pulse radar level transmitter for continuous monitoring of liquids and slurries in storage and process vessels including high temperature and pressure, to a range of 20 m (66 ft)

SITRANS LR250 PVDF antenna

SITRANS LR250 with threaded PVDF antenna is a 2-wire, 25 GHz pulse radar level transmitter for continuous monitoring of liquids and slurries in storage and process vessels including corrosives ft)-antenna dependent

SITRANS LR250 PVDF antenna

All the benefits of SITRANS LR250 Horn antenna and the following

Fully insulated Threaded PVDF antenna designed for use in simple applications within chemical environments where aggressive and corrosive materials are used

Cost effective replacement for transmitters made of exotic materials

2" (50 mm) threaded process connection/antenna allow for easy mounting in nozzles

SITRANS LR250 Flanged encapsulated antenna

All the benefits of SITRANS LR250 Horn antenna and the following

Fully encapsulated horn antenna design with flange mount and FDA approved flush faced TFM 1600 PTFE lens for use in chemical and sanitary environments where aggressive and corrosive materials are used

Flush lens antenna allows for easy cleaning and less intrusion in vessel

Cost effective replacement for transmitters made of exotic materials

2 inch (50 mm) process connection/antenna allow for easy mounting

SITRANS LR250 Hygienic Encapsulated Antenna

All the benefits of SITRANS LR250 Flanged Encapsulated antenna and the following

< 0.8 μ Ra surface finish for maximum cleanability and hygiene requirements commonly required in sanitary environments

Industry standard process connections (DIN 11851, ISO 2852 (tri-clamp), DIN 11864

Tuchenhagen Varivent Types F and Type N

3-A, EHEDG EL Aseptic Class I, EHEDG EL Class I

FDA and USP Class VI approved materials

Benefits:

SITRANS LR250 Horn antenna

Graphical local user interface (LUI) makes operation simple with plug-and-play setup using the intuitive Quick Start Wizard

LUI displays echo profiles for diagnostic support

25 GHz high frequency allows for small horn antennas for easy mounting in nozzles

Insensitive to mounting location and obstructions, and less sensitive to nozzle interference

Short blanking distance for improved minimum measuring range to 50 mm (2") from the end of the horn

Communication using HART® or PROFIBUS PA, or FOUNDATION Fieldbus TM

Process Intelligence signal processing for improved measurement reliability and Auto False-Echo Suppression of fixed obstructions

Programming using infrared Intrinsically Safe handheld programmer or over a network using SIMATIC PDM, Emerson AMS, or Field Device Tools, such as PACTware or Fieldcare via SITRANS DTM.

Suitable for use in safety related systems in accordance with IEC 61508/61511 (SIL-2)

3mm (0.118 inch) accuracy in accordance with IEC 60770-1

Description / Specification of Metal Tube Rota Meter

We are involved in offering a wide range of Metal Tube Rota Meter to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Metal Tube Rota Meter. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design
