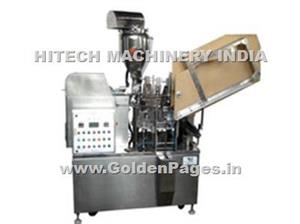

Automatic Tube Filling Machine

Fully Automatic Lami and Plastic Tube Filling / Sealing / Coding and Cutting Machine Model No-ATF-150
Salient Features:-

Semi Automatic Lami/Plastic Tube Filling machine, with have high operating speed and 12 Stations compact rotary.

filling from 5 gm to 150gm

Its contact parts are manufactured using quality stainless steel of grades 316

These machines are no tube - no fill device, with a bottom up filling system and filling accuracy +/ - 0.1%.

These machines have a tube diameter of 16-60mm and height 60-258mm

The tube holding Cup is manufactured using quality stainless steel of grade 304.

8. Manifold cam indexing device Make Cam filed.

Geared Motor 0.5 HP, RPM-40 REMI make

Belt Less Stirrer Device with augur to keep the product in Continuous homogeneous condition

Optional Accessories:

Sealing & Crimping Types: Hot air/ hot jaw / ultrasonic’s, double triple & saddle type fold for metal tubes.

Jacketed hopper & stirrer.

Batch Coating Arrangement [Male or Female] Type is also provided.

Transfers Pumps.

Tube cleaning Attachment.

Technical Specification:-

Output 40 to 45 Tube/per min

Filling Range 5 gm to 150 gm

Tube Diameter 10 mm to 50 mm

Power Consumption 5kw

Air Pressure 6 to 7 kg

Net weight 450kg

Gross Weight 555 kg

Dimension 38"L x 36"W x 72"H
