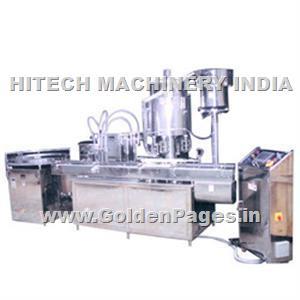

Automatic Liquid Filling Machine
Automatic volumetric liquid filling machines are very useful for filing any free flowing thin or medium viscous liquid into any shape container/jars/bottles etc. It can be used in food, beverages, chemical, pharma & allied industries.
According to its applications machine are given below:
- Oil filling machine
- Juice filling machine
- Milk filling machine
- Syrup filling machine
- Hair oil filling machine
- Shampoo filling machine
- Gum filling machine
- Mouth freshener filling machine
Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose. The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum of time. The main drive consists of a helical gearbox driven by A/c motor & through controlled by an Ac frequency drive. The speed can be set in terms of bottles per minute. The conveyor drive consists of a hallow shaft, geared motor controlled by an Ac frequency drive. A knob can set the speed of conveyor
Salient Features:-
- ± 1 % Filling accuracy on single dose.
- No bottle No filling system.
- Rigid vibration free construction for trouble free performance.
- S.S. Elegantly matt finished body.
- Elegant and easy control panel for total control on operation.
- Minimum change overtime, from one size to another container or fill size.
- Self lubricating UHMW- PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying.
- Drain tray around machine platform.
- Mechanical or Pneumatic bottle stopping arrangement.
- Synchronized two nos. A/C drives for main motor & conveyor belt.
