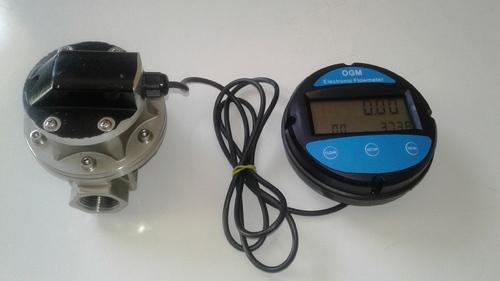

Pulse Oval Gear Flow Meter
STAINLESS STEEL PULSE OVAL GEAR FLOW METER
FOR CHEMICALS, FLAMMABLE MEDIA, SOLVENTS
For continuous, intermittent pipe line flow measurement , down stream of pumps
Flow measurement of high precision composed of measuring cavity, seal coupling
and counter of three parts ( Instantaneous , Current , Volumetric ) Accuracy - + 0.3%, MOC – Stainless Steel SS304 , Flow Range – 20-120 LPM, Line Size – 1”
Max Operating Pressure – 34 Bar, Liter Registration, BSPF
Ports. Electronic Display with 5 digit subtotal with floating from
0.01-99999.99
9 digit Non Resettable Totaliser
Max Temperature – 50 Degree C
