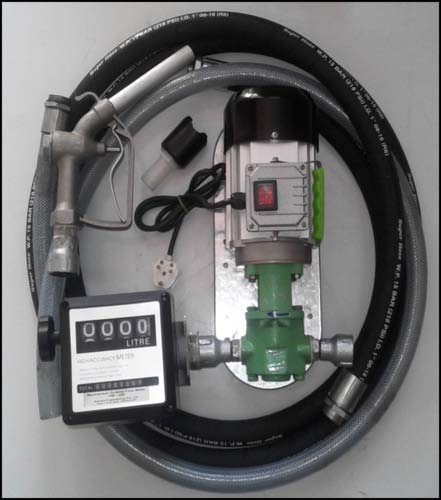

Oil Dispenser

CAST IRON GEAR PUMP DISPENSER

                    ( B-30ATSN12)

FOR DIESEL, OIL , LUBRICANTS,

FURNACE OIL, BIO DIESEL

 Specifications

Working Principle – Double Gears

Max Operating Pressure – 80 degree C, Casing Parts Material – Cast Iron, Max Viscosity – 300 CST , Drive Rating – 370W, In / Out Caliber – 20 mm, Discharge side pressure – 3 Bar

Flow Rate – 30 LPM, Self Priming

Negative Suction- 3 meter

Head – 30 meter, Available in 220 V

Turbine Type Flow Meter 1”

Manual Nozzle – ¾”inlet

4 meter black Crimped Rubber Hose for delivery, 2 meter crimped nylon wire braised  hose for suction. Foot Valve

Additional Information:

• Minimum Order Quantity: 1 Piece
