Featured Products

Highest quality standards are achieved through the implementations of latest technology, decades of experience and everlasting moral values , which have helped us to retain our customers as well as multiply them.

Welcome to AMSPA ENGINEERING PRIVATE LTD.

Automatic Fuel Nozzle

  /> </div>
<div class=

TSN-11 Aluminum 0-80 LPM, Inlet 3/4 BSPF, Spout 13/16", 3/4"
Additional Information:

Minimum Order Quantity: 1 Piece

Aviation Fuel Nozzle

  /> </div>
<div class=

TSN-200 Auto Cut off Nozzle is made of Alloy Aluminum and designed for big flow rate upto 260 LPM.BSPF 1.5” inlet.

Service and body with Cast Aluminum, Machined Stem, Seal Viton Flow Rate – 0-290 LPM.

Needs 3 Bar line pressure to operate.

Weight 2.4 kg

Manual Fuel Nozzle

  /> </div>
<div class=

TSN-12A Manual Nozzle

Suitable for Gravity Feed and Low Pressure Applications.

Superior quality Manual Fuelling Nozzle
Inlet thread 1" , 3/4", , diameter of spout 3/4",
Flow range 0-80 LPM
For use with pump or gravity feed application
Surface treatment - Sand Blast Finish


Additional Information:

Minimum Order Quantity: 1 Piece

Swivel

  /> </div>
<div class=

Approx Price: Rs 975 / Piece

Minimum Order Quantity: 1 Piece

Product Details:

Size 1 inch
Brand AMSPA

Swivel used for connecting

Nozzle and the Hose

1” 360 degree action

Chemical Nozzle

  /> </div>
<div class=

TSN-600C

Manual Plastic Nozzle PP

For Acids and Chemicals

Seals- Highly resistant Florine Rubber

Wetted Parts PP/SS3044

Oil inlet ¾”

Flow rate – 0-70 LPM

Nominal Pressure – 0.18 M Pa


Additional Information:

Minimum Order Quantity: 1 Unit

Fuel Nozzle Cover

  /> </div>
<div class=

Fuel Nozzle Cover

Air Grease Gun

  /> </div>
<div class=

1. Heavy duty aluminum die cast head with internal bore precision honed for rapid action
2. Ergnomic pistol grip and acute angle design allows for ease of operation, especially in narrow spaces
3. Air inlet threaded 1/4" NPT(F) Each gun supplied with a male quick coupler fitting
4. Head casting fitting with bulk loaded valve
5. Intermittent Action with grease discharger per shot, For use with 14OZ. (400gms) grease cartridge or 500cc bulk cartridge.
6. cylinder cap
7. Weight approx 1. 5 kg
8. Load 14 oz or 400 cc grease cartridge
9. Spout and nylon hose with coupler 9" long
10. Air pressure 30-150 psi
11. Average air consumption 6 CPM
12. Air inlet NPT - 1/4"
13. Hose (ID) - 3/8"
Additional Information:

Minimum Order Quantity: 1 1 PIECE

Grease Gun

  /> </div>
<div class=

HIGH PRESSURE GREASE GUNS Aluminium Head. Produces pressure of 6000 psi. Air can be released either through filler nipple or by half turn of the head assembly. Duly fitted with filler nipple. Knurled barrel for easy grip. Available in 500 cc. Available with 6

Fuel Consumption Meter

  /> </div>
<div class=

Rotary piston flow meter

wide flux, no flow adjustment

is required, measuring mediums

diesel, distilled water, juice,

chemical reagent, pulse output

precision – 0. 3%

min flow – 25 liter/hour

max flow – 500 liter/hour

this flow meter reads both total volume passing & flow rate in liter per minute.
Additional Information:

Minimum Order Quantity: 1 Unit

Manual Fuel Flow Meter Nozzle

  /> </div>
<div class=

Approx Price: Rs 10,000 / Piece

Minimum Order Quantity: 1 Piece

Screw Wing Type Mechanical Flow Meter Nozzle is designed to measure volume flow of liquid flowing through the Pipes.

Suitable for Petrol, Diesel, Solvents, Kerosene.

Maximum Working Pressure 0.1 M Pa. Accuracy +1%

Inlet - 25 mm (1”, 1.25")

Flow range 25-200 LPM

Meter Volume ( 1~ 9999)

Mechanical Fuel Flow Meter

  /> </div>
<div class=

Mechanical Turbine Type

Flow Meter. Designed for Metering

Diesel, Fuel, Gasoline, Kerosene,

Mineral Spirits. Reset register

999.9 Liters .Totalizer 99999999.

Measurement – Liters, Max Pressure

3 Bar. Flow Rate 20-120 LPM, Inlet/Outlet – 1”. Precision + 1%,

Net Wt. 2.5 Kg.

Digital Diesel Oval Gear Flow Meter

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA
Display Digital
Model OGM-13E
Flow range 3-35 LPM

Oval Gear Digital Disel Flow Meter

This oval gear meter is for controlling and measuring low, medium and high viscosity, such as fuel, lubrication oil with advantage of high precision and low pressure loss, compact light weight design and easy installation. It is with LCD display.
5-digital subtotal, with floating point from 0.001 to 999.99. 8-digital non-resettable totalizer. And with pulse output, reed switch built in, signal channel output.

Media < 1000 cps
Inlet 1/2" BSPT
Flow rate 3-35 LPM
Accuracy +/- 0.5%
Max Pressure 70 Bar
Max Operating Temperature - 45 C

Mechanical Oval Gear Oil Flow Meter

  /> </div>
<div class=

Product Details:

Brand AMSPA

offering oval gear flow meters for diesel

(a) size 1"
flow rate 20-120 liter/minute
accuracy - 0. 5%
repeatability - 0. 5%
max operating pressure - 3. 4 mpa



(b) size 1 1/2"
flow rate 25-250 liter/minute
accuracy - 0. 5%
repeatability - 0. 5%
max operating pressure - 1. 8 mpa

(c) size - 2"

minimum flow rate - 30 l/mi
maximum flow rate - 300 l/min
accuracy - +/- 0. 5%
repeatability-0. 03%
max viscosity - 1000 cps
max pressure-1. 8 mpa

available in aluminium only

Mechanical Fuel Flow Meters

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA

Mechanical Flow meters designed for metering diesel fuel, gasoline, kerosene, mineral spirits, with the advantage of large easy to read no. S. Quick reset knob. Flexible flow ports can be positioned vertically or horizontally. The easy reset register indicates product use up to 999. 9 gallons or liters. The master totalizer. registers up to 99999999 liters. Max pressure 3 bar

Max flow rate 25-250 LPM

BSPF/NPT – 2 inch

Precision 1% Aluminum housing

Max temperature - 70 degree C

Weight - 2. 5 kg

Digital Oval Gear Diesel Flow Meter

  /> </div>
<div class=

Aluminium Electronic Oval Gear Flow Meter

OGM Type flow meter have the advantage of compact size, easy maintenance, Easy to read and operate mechanical display, horizontal and vertical flexibility of installation options. Low pressure drop. Widely used in industries of petroleum, chemical processing, medicine, transportation food etc.

Available in 1" & 1.5"

OGM-25 E

Size 1"

Flow Rate ( 20-120 LPM )
Accuracy +/- 0.5%
Repetability 0.03%
Max Viscosity - 1000 cps
Max Operating Pressure 3.4 MPa

Size 1.5"

Flow Rate (25-250 LPM )
Accuracy +/- 0.5%
Repatability 0.03%
Max Viscosity - 1000 cps
Max Operated Pressure 1.8 MPa

Diesel Flow Meter Nozzle

  /> </div>
<div class=

inlet – connectors - ¾” or 1”
outlet- 1”
accuracy – 1%
flow range – 18. 9-190 liter per minute
max pressure – 20 bar
temperature – (-40 to 80 degree c)
suitable for measuring diesel transferred from tanks to barrel and vehicles.
connector - (optional)
3/4" automatic cut off nozzle - (optional)
1" automatic cut off nozzle - (optional)

flow meter available in aluminium only. Can be clamped to 3/4" & 1" nozzle


Additional Information:

Minimum Order Quantity: 1 Unit(s)
Item Code: TSN-120K24

Plastic Flow Meter Nozzle

  /> </div>
<div class=

TSN-600C

Manual Plastic Nozzle PP

For Acids and Chemicals

Seals- Highly resistant Florine Rubber

Wetted Parts PP/SS3044

Oil inlet ¾”

Flow rate – 0-70 LPM

Nominal Pressure – 0.18 M Pa

Connector

Electronic Turbine Flow meter K24


Additional Information:

Minimum Order Quantity: 1 Unit

Diesel Flow Meter Nozzles

  /> </div>
<div class=

MANUAL FUEL NOZZLE 1”

0-60 LPM, Inlet 1” BSPF, Spout ¾” Suitable Diesel Gasoline

MOC - Aluminum

Electronic Flow Meter, Turbine Type

+1% Accuracy. Current Flow Qty and Totaliser.

Diesel Flow Meters Nozzle

  /> </div>
<div class=

AUTOMATIC FUEL NOZZLE 1”

0-120 LPM, Inlet 1” BSPF, Spout 1” Suitable Diesel Gasoline

MOC - Aluminum

Electronic Flow Meter, Turbine Type

+1% Accuracy. Current Flow Qty and Totaliser.

Pulse Oval Gear Flow Meter

  /> </div>
<div class=

STAINLESS STEEL PULSE OVAL GEAR FLOW METER

FOR CHEMICALS, FLAMMABLE MEDIA, SOLVENTS

For continuous, intermittent pipe line flow measurement , down stream of pumps

Flow measurement of high precision composed of measuring cavity, seal coupling

and counter of three parts ( Instantaneous , Current , Volumetric ) Accuracy - + 0.3%, MOC – Stainless Steel SS304 , Flow Range – 20-120 LPM, Line Size – 1”

Max Operating Pressure – 34 Bar, Liter Registration, BSPF

Ports. Electronic Display with 5 digit subtotal with floating from

0.01-99999.99

9 digit Non Resettable Totaliser

Max Temperature – 50 Degree C

Electronic Diesel Flow Meter

  /> </div>
<div class=

1" Electronic Diesel Flow Meter
Digital Turbine Flowmeters are best suited for petroleum based products. The modular design allows for maximum flexibility in meeting customers applications. Models are available in BSP fittings.
High Precision, durable and compact turbine flow meters.
Resettable and Cummulative total reading.
Reading in gallons and liters.
Light weight compact design allows easy installation.
Powered by lithium batteries.
Additional Information:

Minimum Order Quantity: 1 Piece

Electric Barrel Pump

  /> </div>
<div class=

Product Details:

Power Source Electric
Motor Horsepower 1 HP
Maximum Discharge Flow 110 LPM

Rated input Power-720 W

Rated Frequency- 50 Hz

No-load speed-300--15000 r/min.

Hydraulics lift-3-7 m.

Delivery Capacity- 30-100 L/min.
Material of Construction - Suction (Aluminium), Impeller (Plastic)

Stainless Steel Gear Pump

  /> </div>
<div class=

Product Details:

Brand AMSPA
Model B-75S
Max Flow Rate 75
Head 30

Stainless Steel Gear Pump. It is widely used in oil, drum carrier, oil refinery, electric power plant, substation and oil depot.By adopting stainless steel material, it works for medium like non lubricating oil, beverage and corrosive liquid.

BSPT - 1"


Flow rate - 75 lpm
Power 750 W
Current Power - 220V
Suction Distance - 5 meter
Head - 30 meter

Dc Diesel Transfer Pump

  /> </div>
<div class=

DUAL VOLTAGE HIGH FLOW DC ROTARY VANE PUMP

Dual Voltage 12V/24V DC

Positive Displacement, Rotary Vane Pump for transferring Diesel Fuel. Suitable for Diesel,

Kerosene, Bio Diesel. Ideal for mounting into plant equipment, excavators etc. Vane Pump with rotor. Foot mounting plate. By pass valve incorporated

into pump body. Integrated ON/OFF switch. Flow rate – 70 LPM, 550 W, RPM – 2800

Head – 10 m

Inlet / Outlet 1”

MOC – CAST IRON

Micro Peristaltic Pump

  /> </div>
<div class=

Make : AMSPA

Flow range: ≤90mL/min

·Fixed speed

·Drive: DC motor or Brushless DC motor

·High cost-effective

·Easy-load type

·Power supply: DC 12V

·Electric current: 0.8A (12V)/0.38A(24V)·

·Continuous working hours:1000 hours

·Power consumption: 4.11W

·Shell materials: POM

·Roller materials: POM

·Motor connection plate: PPS

·Operating condition: Relative humidity 95%

·Weight:90g



·Application: Automatic biochemistry analyzer, medical testing instrument, laboratory equipment and other automatic suction liquid system.

·Flow and tubing: (INNER DIAMETER * WALL THICKNESS)



FLOW RANGE

0.6mm*1.35mm 8ml/min

1.5mm*1.35mm 35ml/min

2.4mm*1.35mm 90ml/min
MC10 Micro peristaltic pumps have small size, easy setup.

One can install variable tubing’s , change tubing’s easily and conveniently. Comes with direct current brushless motors.


Additional Information:

Minimum Order Quantity: 1 Unit

Rotary Diesel Vane Pump

  /> </div>
<div class=

Compact Rotary Vane Type Diesel transfer Pump.
Self Priming
20 meter head
Model No. AM40B
Material of Construction - Cast Iron
Medium - Diesel, Kerosene
Inlet / Outlet - BSPT - 1"
Flow rate - 40 LPM
Max Operating Pressure - 3 Bar
Power 600 W
Current Power 220 V
Negative Suction 5 meter
Head 20 meter
Additional Information:

Minimum Order Quantity: 1 Piece

Flameproof Fuel Transfer Pump

  /> </div>
<div class=

Model – B80 Ex-Cast Iron

Electric Self Priming Pump for flammable media

Gasoline, Diesel , Kerosene, Chemicals and

Solvents. Methanol, Stainless Steel SS304 Rotary Vane

Pump. Built in Bypass Valve. Built in Filter.

Easy accessible for cleaning. Explosion Proof

Induction motor with Aluminium casing.

Continuous working principle. Applicable for

Transferring media from barrel, underground

Tanks, tankers and overhead tank.

Flow rate -80 LPM, 1” Port, 220V, 550 W,

2800 rpm, Suction – 5m , Head – 15 m

NET WEIGHT – 10 KG

Dc Diesel Transfer Pumps

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Piece
Brand AMSPA
Model B-70 DC Dual 12/24
Max Flow Rate 70 LPM
Head 10 Meter

B-70 DC Dual 12/24

70 LPM Dual Voltage DC diesel Transfer Pump. Dual 12 24 V. 550W. Positive Displacement Rotary Vane Pump. Suitable for Kerosene, Bio Diesel. Idea for mounting on Plant equipment, excavators etc. Vane Pump with rotor. Foot Mounting plate. By-pass valve incorporated into the pump Body. Complete with switch, carry handle. Standard 2 meter long battery cable and

Crocodile clips. 550W, 2800 rpm.

Rotary Diesel Vane Pumps

  /> </div>
<div class=

Vane Pump, 60 LPM

Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar

Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction

Motor with aluminum casing.

Continuous Duty.

Flameproof Barrel Pump

  /> </div>
<div class=

PUMP B40 Stainless Steel

Explosion Proof Motor Rating

 Inlet 55 mm

Outlet 20 mm

Head 2.5 m

Flow 50L/min

Power 0.12 KW

Speed  2800 rpm

Voltage  220V

50 Hz

Explosion Proof

Tube Stainless Steel

Gear Oil Pump

  /> </div>
<div class=


B-Series Gear Oil Pump

It is widely use in oil drum trasfer pump. oil refinery, electric power plant, substation and oil depot.
Petrolchemical industry, heavy oil, lipid , various catalyst, chemical fibrous slurry, water, diesel ,avaiation , kerosene.
AES, LAS, AOS, K12, Glycerol, sorbitol, fatty alcohol, shampoo, dishwashing liquid, body wash, toothpaste, washing powder slurry, Fuel pigment, various slurry, auxiliary chemicals, leather auxiliries, silicone oil, suspension, various kind of colloid material etc.
Paint, dope, printing ink, insulation varnish, resin, auxiliaries, organic solvent etc. Working principle - Double Gears, Max Operating temperature - 80 degree celcius, Casing parts material - Cast Iron, Max Viscosity - 300 CST, Drive rating 370 Watt, In/Out Caliber - 20 mm, Discharge pressure - 3 bar, Flow rate - 30 LPM, Discharge Head 30 meter, Negative suction 3 meters, Self Priming, Available in 230V.


Dc Gear Oil Pump

  /> </div>
<div class=

HEAVY DUTY REAR MOUNT OIL GEAR PUMP 12 V SCAVENGE

PRODUCT DESCRIPTION

This pump is a gear pump, the best kind of pump for oil scavenging. Bronze gears. Brass pump body.

12v DC with splash resistant wiring. Two 1/2" barbed fitting included.

The same oil that it scavenges also lubes up its gears. These pumps are suitable for remote systems as oil scavenge pumps.

FEATURES

Self Priming, Corrosion resistance, Soft Noise Absorbing Mounts, Pump body: Brass, Shaft: Steel

Seal: Fluoro elastomer lip seal, Voltage: 12V DC, Flow capacity: 14 Litre per, 120 Watt

Self-priming - Max. lift 3M, Can be mounted in any position

Twin core wire Current Draw: 6 Amp (max. 10 Amp)

Dimensions: Length 155.5mm x Width 119mm x Height 103mm

Diaphragm Pump

  /> </div>
<div class=

Model – B-30 DC

Diaphragm Pump

Open Flow – 10 Liter / min

Pressure – 17 PSI

Amps – 2.2

Suction – 6 meter

Head – 5 meter

Can be used for Chemicals, Water

Transfer, Water Sprinkler Systems

Built in Pressure Switch.

Motor – Permanent Magnet

Dc Submersible Pump

  /> </div>
<div class=

For transfering diesel, water, chemicals  from Tanks and Barrels

Voltage - 12 V
Current - 2A / 1A
Capacity Max - 16 L/min
Max Head - 5 meter
Dia of the outlet - 19 mm
Dia of Submersible Pump - 50 mm
Overall length of Cable with battery - 2 meter
Clamps


Additional Information:

Minimum Order Quantity: 1 Piece

Dc Diesel Transfers Pump

  /> </div>
<div class=

B-40 DC12

Available in 12volts  version, By-pass valve, incorporated in the pump body. DC brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate  - 40 LPM, Head 7 m , Negative Suction 5 meter, 1” Connectors


Additional Information:

Minimum Order Quantity: 1 Piece

Dc Continuous Diesel Transfer Pump

  /> </div>
<div class=

HIGH FLOW DC TRANSFER PUMP

B-100 DC 12V Continuous Duty

Positive displacement Rotary

Vane Pump, designed for heavy. Duty working upto 100 LPM with low noise. Only suitable for Diesel and Biodiesel. Inlet 1” . Strong self suction, Upto 4 m vertical. Head Max 15m. Bypass Valve incorporated. In pump body. Ideal for mounting into plant equipment, excavators

etc. Max Flow – 100 LPM.

Low Box with gear box to reduce Motor speed. Rotor diameter 68 mm. RPM 2800

Static Mixers

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 10 Piece
Brand AMSPA
Design Type Standard

The offered Disposable Static Mixers are widely used by our clients for resin and hardener. These are available in different specifications in terms of gauge sizes and length. In addition, these can be easily attached to dispense valve in the dispense machinery. We offer these mixers at the most affordable prices to our valuable clients.

Te Glue Dispensing Needles

  /> </div>
<div class=

The TE series consist of stainless steel cannula with double helix polypropylene hub. This premium line of dispensing tips is bur free, and has an electro polish cannula for unobstructed and consistent material flow. In addition they are silicone and chloride free. Available in 14, 15, 18, 20 gauges. Pack size 50 pc.

Tt Glue Dispensing Needles

  /> </div>
<div class=

Product Details:

Brand AMSPA

These tips are molded in high density polyethylene with UV light block additive and include a double helix Luer lock hub. The tapered tip prevents blockage and increases the flow of high viscosity materials. Techcon UK make. Sold in packs of 50.


Available guage sizes - 14", 16", 27"

Additional Information:

Item Code: TT

Adhesive Syringe Barrel

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 50 Piece
Brand AMSPA

Adhesive dispensing barrel. Highly stable and accurate design with minimal resistance and ultra parallel uniformity over length of syringe barrel enables this premium product the first choice for packaging high value fluids and accurate dispensing.

All dispensing barrels are designed to be integrated seamlessly with any of our liquid dispensing units. Designed for any production setting, they come in size from 3 cc to 55 cc and in UV blocking amber and black versions for sensitive UV materials. All disposable barrels have a Luer Lock Adapter to easily attach dispensing tips. The round bottom design allows for ease of dispensing more viscous materials.

Available in Clear , Amber and Black

3 cc, 5 cc, 10 cc, 30 cc, 55 cc
MOQ 55 CC Barrel

Liquid Dispenser Barrel Adapter

  /> </div>
<div class=


The adapter assembly consists of a clear tubing with an adapter head on one end (which holds the barrel) to an adapter tab on the other end which fits into the dispenser controller. The adapter assembly that connects the barrel to the controller delivers the air supply to the piston inside the syringe. The piston pushes the material forward and, using vacuum, pulls back to control dripping. O rings in the adapter head keep the syringe snug.


Adhesive Barrel End Caps

  /> </div>
<div class=

Designed to seal large end of the barrel to ensure no contaminants come in contact with material during storage and shipment. Made from polypropylene.

Barrel Piston

  /> </div>
<div class=

Designed with close tolerences to precisely fit inside the syringe barrel, the easy flow series piston requires less pressure to dispense fluids consistently and prevent air from becoming trapped during the dispensing process.

Dispensing Gun Valve For Sealants

  /> </div>
<div class=

Dispensing gun for silicone and hemflange sealants for automotive body shop
for applying sealant to closure panels. Low cost economical. Good substitute for graco guns. For automotive industry.

Used for applying sealants like Silicone directly from pumps.

Stainless Steel Pressure Pot

  /> </div>
<div class=

Product Details:

Brand AMSPA

The pressure pot high pressure

100 PSI is designed to accommodate

all Solvent and Epoxy Fluids as well

As CA and UV’s. It also accommodates for continuous path from the reservoir to the point of use.

Easily handles fluids with viscosity

Up to 50000 cps.

Capacity 1 liter

Te Bent Dispensing Tips

  /> </div>
<div class=

The TE tips are precision bent at 45 degree angles. Perfect for dispensing fluid in hard to reach places.

1/2"

Colour - Olive 14G , Amber 15G, Green 18G, Pink20G, Purple 21G, Blue 22G, Orange 23G , Red 25G, Transparent 27G, Light Purple 30 G, Yellow 32G, Light Green 34 G
Additional Information:

Minimum Order Quantity: 10 Piece

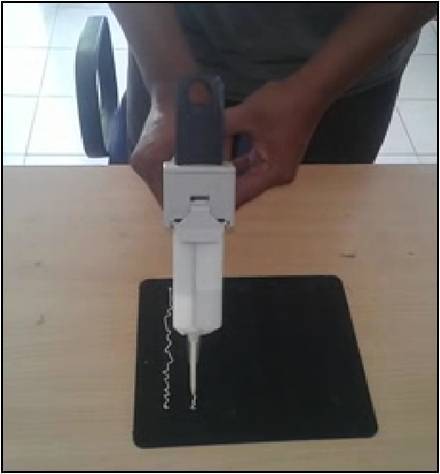

Caulking Gun

  /> </div>
<div class=

2 component, 50 ml, 3 mm .Type 1:1 & 2:1 ratio manual Caulking gun.

Cc Helix Dispenser Syringe Barrel

  /> </div>
<div class=

Helix Luer Lock Tip Dispenser Syringe Barrel w Adapter and Piston. The dispenser barrels made in PP. It's the best application for your liquid dispensing, glue and other adhesive dispensing. 300 cc syringe barrel.

Unit consists of 300 cc barrel + Piston + Adaptor

Cartridge

  /> </div>
<div class=

Two Component Adhesive 50 ml

AB Glue Cartridge (1:1.01) Mixing

Ratio. Material of Cartridge PP,

Material of Plunger PE.

Can be used with 2 Component Dispenser of 5 ml AB Glue Gun

Additional Information:

Minimum Order Quantity: 1 Piece

Dispensing Needles

  /> </div>
<div class=

7 mm Flat Type Brush.

Round brush hub 42 mm x 6 mm

Length and hub diameter.

Plastic hard hair in yellow.

14,15,18,20,21,22,23,25,27G.


Additional Information:

Minimum Order Quantity: 10 Piece

Metal Cartridge

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Piece
Brand AMSPA

330 g toughned metal cartridge

for disepensing directly from silicone cartridge

Static Mixer

  /> </div>
<div class=

Product Details:

Model AMSPA

Static Mixers for 50 ml Cartridges.

Uhmwpe Diaphragm Valve

  /> </div>
<div class=

Approx Price: Rs 35,000 / Piece

Minimum Order Quantity: 1 Piece

Product Details:

Brand AMSPA

Max Operating Pressure 5 Bar

Operating Pressure 4 Bar

500 Cycles per minute

Diaphragm Valve

Body – AL

Piston SS303

O ring NBR

Valve Head UHMW PE / Diaphragm UHMW PE

0.3 Liter / Min Max

1~5000 Cps

Barrel Pump

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Power Source Electric

PUMP

Rated input Power-750W (1HP)

Rated Frequency- 50 Hz, 220

Variable Speed Motor

No-load speed-300--15000 r/min. Hydraulics lift- 15 m.

Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP

Inlet – 40 mm, Outlet – 25 mm

OPTIONAL ACCESSORIES

Mechanical Turbine Flow meter 1 % accuracy

Assorted Connectors

Automatic Cut Off Nozzle 1”

Black Crimped Rubber Hose 4 meter

Mechanical Flow Meter Nozzle

Diesel Barrel Pump

  /> </div>
<div class=

Product Details:

Power Source Electric
Motor Horsepower 1 HP
Maximum Discharge Flow 110 LPM

PUMP

Rated input Power-750W (1HP)

Rated Frequency- 50 Hz, 220

Variable Speed Motor

No-load speed-300--15000 r/min. Hydraulics lift- 15 m.

Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP

Inlet – 40 mm, Outlet – 25 mm

OPTIONAL ACCESSORIES

Electronic Turbine Flow meter 1 % accuracy

Assorted Connectors

Automatic Cut Off Nozzle 1”

Black Crimped Rubber Hose 4 meter

Mechanical Flow Meter Nozzle

Diesel Dispenser

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Piece
Brand AMSPA
Machine Type Semi-Automatic

Model - ETP-60AF AC 220 V

Cast Iron Vane Pump Continuous Working Principle. Pump In & Out – 1”.Max Flow – 60 LPM Power – 550W , Speed – 2800 rpm, Voltage – 220 V SINGLE PHASE, SELF PRIMING. Suction – 5m, Head – 10 m, Connector, Filter, MS Panel Frame, Mechanical Turbine Flow meter 20-120 LPM , Accuracy 1%, Rubber Hose 4 m for delivery, 2 meter Nylon hose for suction. 50 Micron Filter, 1” Manual Nozzle, Crimped Hoses.

Diesel Dispenser - 1

Flame Proof Fuel Dispenser

  /> </div>
<div class=

Model – B80 ExA-Cast Iron

Electric Self Priming Pump for flammable media

Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof

Induction motor with Aluminium casing. Continuous working principle. Applicable for

Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m

1” Manual Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose, 1” Mechanical Turbine Flow Meter, Accuracy + 1%

Assorted Connectors

Flame Proof Fuel Dispensers

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Piece
Brand AMSPA
Capacity 80 LPM
Machine Type Semi-Automatic

ETP-80EX120

Model – B80 Ex-Cast Iron

Electric Self Priming Pump for flammable media . Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof

Induction motor with Aluminium casing. Continuous working principle. Applicable for

Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m.1” Automatic Cut Off Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose. MS Panel. Mechanical Aluminum Oval Gear Flow Meter.

Flame Proof Fuel Transfer Skid

  /> </div>
<div class=

ETP-80EX120

Model – B80 Ex-Cast Iron

Explosion Proof Motor .Electric Self Priming Pump for flammable media

Gasoline, Diesel , Kerosene. Rotary Vane Pump. Built in Bypass Valve. Built in Filter. Easy accessible for cleaning. Explosion Proof

Induction motor with Aluminium casing. Continuous working principle. Applicable for

Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 15 m

1” Automatic Cut Off Nozzle.4 meter crimped rubber hose. Filter. 2 meter Nylon crimped Hose.

Additional Information:

Minimum Order Quantity: 1 Unit

Diesel Transfer Skid

  /> </div>
<div class=

For Fuelling Diesel, Kerosene.  Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.

Continuous Duty ROTARY VANE PUMP. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual  Nozzle,  strainer


Additional Information:

Minimum Order Quantity: 1 Unit

Diesels Dispenser

  /> </div>
<div class=

For Fuelling Diesel, Kerosene.  Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.

Continuous Duty Rotary Vane Pump. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” Mechanical Flow Meter  Nozzle, Accuracy + 1% strainer.


Additional Information:

Minimum Order Quantity: 1 Piece

Diesels Dispensers

  /> </div>
<div class=

For Fuelling Diesel, Kerosene. Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.

Continuous Duty ROTARY VANE PUMP. Assorted Connectors. 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual Nozzle, strainer, 1” Mechanical Oval Gear Flow Meter. + 0.3%

Accuracy.

Additional Information:

Minimum Order Quantity: 1 Piece

Diesels Dispenserss

  /> </div>
<div class=

For Fuelling Diesel, Kerosene.  Vane Pump, 60 LPM , Voltage – 230V, 550W, Speed – 2800 rpm, Max Pressure – 3 bar, Head – 10 m, Negative suction – 5 m, Self Priming, Cast Iron Casing, Steel Rotor, Bypass Valve, Built in Filter, Induction Motor with aluminum casing.

Continuous Duty Vane Pump. Electronic turbine  Flow  meter. Assorted Connectors., Accuracy  + 1%, 4 meter crimped rubber hose, 2 meter Nylon wire braided crimped hose, Filter , 1” manual  Nozzle,  strainer


Additional Information:

Minimum Order Quantity: 1 Unit

Flameproof Barrel Pumps

  /> </div>
<div class=

PUMP B40

Explosion Proof

 Inlet 55 mm

 Outlet 20 mm

 Head 2.5 m

 Flow 50L/min

 Power 0.12 Ex

 Speed  2800 rpm

 Voltage  220V

 50 Hz

 Explosion Proof

Tube Material

 STAINLESS

 STEEL

Impeller port PP



OPTIONAL

4 meter Crimped Rubber Hose

1” Manual Nozzle

 Nozzle

Mechanical Flow Meter Nozzle

Mechanical Flow Meter.

Additional Information:

Minimum Order Quantity: 1 Unit

Dc Diesel Pump Flow Meter Unit

  /> </div>
<div class=

Available in 12 /24 volts , 1” treaded connectors . Cast Iron pump. Vane pump. By-pass valve, Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM. Head 7-10 meter, Negative Suction – 5 meter. 1” Electronic Turbine Type Flow meter 20-120 LPM clamped on the discharge of the pump. 1% Accuracy.

Dual Voltage Dc Diesel Transfer Kit

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Piece
Brand AMSPA
Model B-70 DCN Dual 12/24
Max Flow Rate 70 LPM
Head 10 Meters

B-70 DCN Dual 12/24

70 LPM Dual Voltage DC diesel Transfer Pump. Dual 12 24 V. 550W. Positive Displacement Rotary Vane Pump. Suitable for Kerosene, Bio Diesel. Idea for mounting on Plant equipment, excavators etc. Vane Pump with rotor. Foot Mounting plate. By-pass valve incorporated into the pump Body. Complete with switch, carry handle. Standard 2 meter long battery cable and Crocodile clips. 550W, 2800 rpm. 2 meter black crimped hose, Filter, 1” Automatic Cut Off Nozzle.

Flameproof Mobile Fuel Dispenser

  /> </div>
<div class=

ETP- 75AOGMRFT

Ready flameproof flow metering units for fitting directly to Tankers. Comes in Box

with Filter. Can be mounted directly. For diesel, gasoline, kerosene, mineral spirits, Standard solvent . Flame-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve Ball bearing construction, no lubrication required 1" diameter, 4 meter hose and 1 automatic shut off nozzle, boot that protects against dirt and contamination. 2" threaded base for tank openings Corrosion-Proof section pipe. Rain proof, water proof 30-minute duty cycle/not for continuous operation. Body – Cast Iron, Available flow rate – 75 LPM , Voltage DC12 DC24, Inlet 3/4” NPT, 1” NPT, Threaded tank adapter 2” NPT, Oval Gear Flow Meter Accuracy +/- 0.5%, Repeatability 0.2%, 360 degree Swivel

Flameproof Mobile Fuel Dispensers

  /> </div>
<div class=

ETP- 75ATSMFT

Ready flameproof flow metering units for fitting directly to Tankers. Comes in Box

with Filter. Can be mounted directly. For diesel, gasoline, kerosene, mineral spirits, Standard solvent . Flame-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve Ball bearing construction, no lubrication required 1" diameter, 4 meter hose and 1 automatic shut off nozzle, boot that protects against dirt and contamination. 2" threaded base for tank openings Corrosion-Proof section pipe. Rain proof, water proof 30-minute duty cycle/not for continuous operation. Body – Cast Iron, Available flow rate – 75 LPM , Voltage DC12 DC24, Inlet 3/4” NPT, 1” NPT, Threaded tank adapter 2” NPT, Mechanical Turbine Type Flow Meter Accuracy +/- 1%, Repeatability 0.2%, 360 degree Swivel.

Mobile Diesel Dispenser

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Piece
Machine Type Semi-Automatic

ETP-70OGMFT ( DUAL VOLTAGE 12 & 24 v ) – Ready to Mount

For fuelling Diesel and Kerosene. Pump head with Iron material and 100% Cooper line. IP54 protection. Pump with bypass and self priming . Flow rate – 70 LPM, 550W, Pressure 3 bar. Suction 5 m, Head 10.Analog Oval Gear Flow Meter 20-120 LPM range + 0.5% Accuracy. Crimped Rubber Hose 4 meter , 1” Automatic Nozzle, Connectors, MS Panel Box and Filter and Secure Lock. 360 degree Swivel

Mobile Diesel Dispensers

  /> </div>
<div class=

ETP-70AFT ( DUAL VOLTAGE 12 & 24 V ) – Ready to Mount. For fuelling Diesel and Kerosene. Pump head with Iron material and 100% Cooper line. IP54 protection. Pump with bypass and self priming . Flow rate – 70 LPM, 550W, Pressure 3 bar. Suction 5 m, Head 10. Mechanical Turbine Flow Meter 20-120 LPM range + 1% Accuracy. Crimped Rubber Hose 4 meter , 1” Manual Nozzle, Connectors, MS Panel Box and Filter and Secure Lock. 360 degree Swivel.

Mobiles Diesel Dispenser

  /> </div>
<div class=

ETP-40AFT – READY TO MOUNT. Mechanical Turbine Type Flow meter1”, inlet. 20-120 LPM range 1% Accuracy. Cast Iron pump 40 LPM, 12V with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Motor protection class IP54. Rubber Hose 4 meter, Manual  Nozzle, Connectors , MS Box frame and Filter. Crimped Hoses. 360 Degree Swivel.

Brass Y Strainer

  /> </div>
<div class=

High quality fabricated Brass Y Strainers 25mm, Its high ability to bear pressure, long life and resistance to corrosion make it ideal for use in various water treatment, oil and gas plants. Available in Screwed End

Features:

High accuracy
Rugged in performance
Robust designing

Diesel Filter

  /> </div>
<div class=

Diesel Filter 1”

Outstanding fuel filtration efficiency

High fuel flow rate

Low flow resistance

High dust holding capacity

Heavy duty construction

Good temperature resistance

Good anti-humidity performance

Durable and long lifespan

Economical, practical and easy to install.


Additional Information:

Minimum Order Quantity: 1 Piece

Flameproof Mobiles Fuel Dispenser

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA
Capacity 75
Machine Type Semi-Automatic

ETP- 75AOGM40FT

Ready flameproof flow metering units for fitting directly to Tankers. Comes in Box

with Filter. Can be mounted directly. For diesel, gasoline, kerosene, mineral spirits, Standard solvent . Flame-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve Ball bearing construction, no lubrication required 1" diameter, 4 meter hose and ¾” automatic shut off nozzle, boot that protects against dirt and contamination. 2" threaded base for tank openings Corrosion-Proof section pipe. Rain proof, water proof 30-minute duty cycle/not for continuous operation. Body – Cast Iron, Available flow rate – 75 LPM , Voltage DC12 DC24, Inlet 3/4” NPT, 1” NPT, Threaded tank adapter 2” NPT, Oval Gear Flow Meter Accuracy +/- 0.5%, Repeatability 0.2%.

Grease Guns

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Piece
Brand AMSPA
Model 500 CC

Aluminium Head. Produces pressure of 6000 psi.

Air can be released either through filler nipple or by half turn of the head assembly.

Duly fitted with filler nipple.

Knurled barrel for easy grip.

Available in 500 cc.

Available with 6" crank tube with 4 jaw coupler.

Threads available in : 1/8BSPT, 1/8NPT or M10.

Mobile Digital Dispenser

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Piece
Brand AMSPA
Capacity 60 LPM
Machine Type Semi-Automatic

ETP-60EFT – Ready to  Mount

For fuelling Diesel and Kerosene. Pump head with Iron material and 100% Cooper line. IP54 protection. Pump with bypass and self priming.

Flow rate – 60 LPM, 200W, 12V 3 bar. Suction 5 m, Head 10. Digital Oval Gear Flow Meter 20-120 LPM range  + 0.5% Accuracy. Crimped Rubber Hose 4 meter , Manual Nozzle, Connectors, MS panel Box and filter and Secure Lock.

360 degree Swivel

Oil Dispenser

  /> </div>
<div class=

CAST IRON GEAR PUMP DISPENSER

                    ( B-30ATSN12)

FOR DIESEL, OIL , LUBRICANTS,

FURNACE OIL, BIO DIESEL

 Specifications

Working Principle – Double Gears

Max Operating Pressure – 80 degree C, Casing Parts Material – Cast Iron, Max Viscosity – 300 CST , Drive Rating – 370W, In / Out Caliber – 20 mm, Discharge side pressure – 3 Bar

Flow Rate – 30 LPM, Self Priming

Negative Suction- 3 meter

Head – 30 meter, Available in 220 V

Turbine Type Flow Meter 1”

Manual Nozzle – ¾”inlet

4 meter black Crimped Rubber Hose for delivery, 2 meter crimped nylon wire braised  hose for suction. Foot Valve

Additional Information:

  • Minimum Order Quantity: 1 Piece

Dc Diesel Transfers Pumps

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA
Model B-40 DC
Max Flow Rate 40 LPM
Head 7 M

Battery DC ( 12/24 V DC Fuel Pump )

Material - Cast Iron , Head - 10 meter, Power - 160 W, Flow rate 40 LPM
Only suitable with diesel or bio diesel kerosene
Ideal for mounting into plant equipment, excavators etc.
Maximum Flow 40 LPM, 3/4" BSPF ports
Direct Drive Vane Pumping unit with bypass valve
Complete with switch, carry handle.
Battery Cable and Crocodile clips.
Weather proof to IP54 for outdoor use.
Maximum run time 30 minute
Self Priming DC Oil Pump
Fluid viscosity - 2-20 cst

Negative suction 2 meter
Working Speed 2800 rpm
Noise Level < 70 dB(A)
Bypass Valve
Cast Iron Casing. Sintered steel rotor, acetalic vanes

Diesel Barrel Pump Dispensers

  /> </div>
<div class=

PUMP

Rated input Power-750W (1HP)

Rated Frequency- 50 Hz, 220

Variable Speed Motor

No-load speed-300--15000 r/min. Hydraulics lift- 15 m.

Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP

Inlet – 40 mm, Outlet – 25 mm

OPTIONAL ACCESSORIES

Electronic Turbine Flow meter 1 % accuracy

Assorted Connectors

Automatic Cut Off Nozzle 1”

Black Crimped Rubber Hose 4 meter

Diesel Dispenser For Tankers

  /> </div>
<div class=

Product Details:

Machine Type Semi-Automatic

ETP-40AFProduct Details:

Machine Type Semi-Automatic

ETP-40AF

Mechanical Turbine Type Flow meter1”, inlet. 20-120 LPM range 1% Accuracy. Cast Iron pump 40 LPM, 12V/24V with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Motor protection class IP54. Rubber Hose 4 meter delivery , Nylon hose 2 meter on the suction. Manual Nozzle, connectors , MS panel frame and Filter. Crimped Hoses

Mechanical Turbine Type Flow meter1”, inlet. 20-120 LPM range 1% Accuracy. Cast Iron pump 40 LPM, 12V/24V with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Motor protection class IP54. Rubber Hose 4 meter delivery , Nylon hose 2 meter on the suction. Manual Nozzle, connectors , MS panel frame and Filter. Crimped Hoses

Dieselss Dispensers

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA
Capacity 40 LPM
Machine Type Semi-Automatic

ETP-40AFG

Mechanical Turbine Type Flow meter1”, inlet. 20-120 LPM range 1% Accuracy. Cast Iron pump 40 LPM, 12V/24V with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Motor protection class IP54. Rubber Hose 4 meter delivery , Nylon hose 2 meter on the suction. Manual Nozzle, connectors , MS panel frame and Filter. Crimped Hoses.

Diesel Pump Flow Meter Nozzle Dispenser

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA
Display Remote
Model B-40LLY
Flow range(Min-Max) 40 LPM

Available in 12 /24 volts,155 W version, provide with 1” treaded connectors . Cast Iron pump with anti corrosion paint. Vane pump with sintered steel rotor. By-pass valve, pressure control valve and overload protector incorporated in the pump body. Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, self priming, Head 7 meter, Crimped Rubber Hose(4 meters) for delivery, 2 meter crimped Nylon wire braided hose on the suction. Filter, Mechanical Turbine Flow Meter Nozzle.

Diesel Pump Flow Meter Nozzle Dispensers

  /> </div>
<div class=

Available in 12 /24 volts,155 W version, provide with 1” treaded connectors . Cast Iron pump with anti corrosion paint. Vane pump with sintered steel rotor.

By-pass valve, pressure control valve and overload protector incorporated in the pump body. Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, self priming, Head 7 meter, Crimped Rubber Hose(4 meters) for delivery, 2 meter crimped Nylon wire braided hose on the suction. Filter,

Oval Gear Flow Meter Nozzle.

Additional Information:

Minimum Order Quantity: 1 Piece

Diesel Pumps Flow Meter Nozzle Dispenser

  /> </div>
<div class=

Available in 12 /24 volts,155 W version, provide with 1” treaded connectors . Cast Iron pump with anti corrosion paint. Vane pump with sintered steel rotor.

By-pass valve, pressure control valve and overload protector incorporated in the pump body. Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, self priming, Head 7 meter, Crimped Rubber Hose(4 meters) for delivery, 2 meter crimped Nylon wire braided hose on the suction. Filter,

Manual Nozzle – Inlet ¾” inch

Electronic Flow Meter.

Max Flow Rate 40 LM
Additional Information:

Minimum Order Quantity: 1 Unit

Diesel Transfer Kit

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA
Model B-40DC
Max Flow Rate 40 LPM
Head 7 Meters

Available in 12 /24 volts,155 W version, provide with 1” treaded connectors . Cast Iron pump with anti corrosion paint. Vane pump with sintered steel rotor.

By-pass valve, pressure control valve and overload protector incorporated in the pump body. Direct current brush motor with permanent magnet stator. Motor protection class IP55. Used in 30 minute cycle. Flow rate - 40 LPM, self priming, Head 7 meter, Crimped Rubber Hose(4 meters) for delivery, 2 meter crimped Nylon wire braided hose on the suction. Filter,

Manual Nozzle – Inlet 1 inch

Digital Turbine Diesel Flow Meter

  /> </div>
<div class=

Application:

Digital turbine flow meters are best suited for petroleum based products. The modular design allows for maximum flexibility in meeting customer’s applications. Models are available with BSP fittings.

Features:

High precision, durable and compact turbine flow meters.

Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Factory Calibration in gallons and liters

Lightweight, compact design allows for easy installation.

Powered by Lithium batteries

Housing Material - Aluminium
Meter sizes available - 1"
Flow range - 1" (18.9 - 190 LPM)
Accuracy - 1%
Repeatability - /- 0.1%
Pressure rating - 21 Bar
Operating Temperature - ( - 40 degree C - 121 degree C)

Explosion Proof Steel Pump Flow Meter Unit

  /> </div>
<div class=

Suitable for Alcohol

Model - B-80 Ex-SS304

Electric Self Priming Pump for flammable media, Alcohol, Gasoline, Diesel , Kerosene, Chemicals and Solvents. Stainless Steel SS304 Rotary Vane

Pump. Built in Bypass Valve. Built in Filter.

Easy accessible for cleaning. Explosion Proof, Induction motor with Aluminium casing. Continuous working principle. Applicable for Transferring media from barrel, underground Tanks, tankers and overhead tank. Flow rate -80 LPM, 1” Port, 220V, 550 W, 2800 rpm, Suction – 5m , Head – 20m -

Connectors – Stainless Steel (SS304)

Mechanical Turbine Flow meter

PP Wetted Parts, Buna – N Seal

Flame Proof Barrel Pump

  /> </div>
<div class=

Explosion proof barrel pump

PUMP B40

Explosion Proof Motor

Inlet 55 mm

Outlet 20 mm

Head 2.5 m

Flow 50L/min

Power 0.12 Ex

Speed 2800 rpm

Voltage 220V

50 Hz

Explosion Proof

Tube Material

Aluminum

Also available in Stainless Steel.

Flame Proof Barrel Pump Dispensers

  /> </div>
<div class=

PUMP B40

Inlet 55 mm

Outlet 20 mm

Head 2.5 m

Flow 50L/min

Power 0.12 Ex

Speed 2800 rpm

Voltage 220V

50 Hz

Explosion Proof

Tube Material

Aluminum

Impeller port PP

OPTIONAL

Black Crimped Rubber Hose

4 meter

1” Manual Nozzle

Flow Meter Nozzle

Additional Information:

Minimum Order Quantity: 1 Unit
Delivery Time: Immediate

Flameproof Mobiles Fuel Dispensers

  /> </div>
<div class=

Product Details:

Machine Type Semi-Automatic

ETP-75AFT FLAME PROOF – READY TO MOUNT

Ready flameproof flow metering units for fitting directly to Tankers. Comes in Box

with Filter. Can be mounted directly. For diesel, gasoline, kerosene, mineral spirits, Standard solvent . Flame-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve Ball bearing construction, no lubrication required 1" diameter, 4 meter hose and 1" manual nozzle boot that protects against dirt and contamination. 2" threaded base for tank openings Corrosion-Proof section pipe. Rain proof, water proof 30-minute duty cycle/not for continuous operation. Body – Cast Iron, Available flow rate – 75 LPM , Voltage DC12 & DC24, Inlet 3/4” NPT, 1” NPT, Threaded tank adapter 2” NPT, Accuracy +/- 1%, Repeatability 0.2%.

Plastic Digital Flow Meter

  /> </div>
<div class=

Product Details:

Minimum Order Quantity 1 Unit
Model AMSPA

K24 Turbine flow meter for water, fuels & chemicals

(PPC BODY (POLYPHENYLENE PLASTIC)

The K24 is a high accuracy

durable and compact

Flow meter which has 2

Cumulants 1 resetting &

1 accumulating) and gallon

or liter option, PPS body.

It us suitable for diesel,

Chemical industry, medicine

And other corrosive medium

Measurement.

Inlet & Outlet NPT 1”, BSP1”

Flow range - 20-120 LPM

Accuracy – /- 1%

Repeatability Error < 0.2%

Pressure Class – 20 Bar
Digital LCD
Temperature range -10 -50 degree C
Power - 2x1.5V DC AAA Batterie

Dc Continuous Duty Pump

  /> </div>
<div class=

Positive displacement Rotary

Vane Pump, designed for heavy. Duty working upto 100 LPM with low noise. Only suitable for Diesel and Biodiesel. Inlet 1” . Strong self suction, Upto 4 m vertical. Head Max 15m. Bypass Valve incorporated. In pump body. Ideal for mounting into plant equipment, excavators

etc. Max Flow – 100 LPM.

Low Box with gear box to reduce Motor speed. Rotor diameter 68 mm. RPM 2800

Flameproof Stainless Steel Transfer Pump

  /> </div>
<div class=

Model - B-80 Ex-SS304

Explosion Proof Motor Rating – ExdII BT4 IP55

Electric Self Priming Pump for flammable media

Gasoline, Diesel , Kerosene, Chemicals and

Solvents. Methanol, Stainless Steel SS304 Rotary Vane

Pump. Built in Bypass Valve. Built in Filter.

Easy accessible for cleaning. Explosion Proof

Induction motor with Aluminium casing.

Continuous working principle. Applicable for

Transferring media from barrel, underground

Tanks, tankers and overhead tank.

 Flow rate -80 LPM, 1” Port, 220V, 550 W,

 2800 rpm, Suction – 5m , Head – 15 m

NET WEIGHT – 10 KG

Additional Information:

Minimum Order Quantity: 1 Piece

Syringe Caulking Gun

  /> </div>
<div class=

Syringe Gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard 55cc/ 55ml size syringe barrels. Ideal for low volume production, re-work or repair.

Push the top button to release and pull back the plunger rod. Simple bayonet twist on/ twist off syringe barrel attachment. Ideal manual gun for dots or beads of solder paste, solder flux, RTV, silicones, sealants, gels, greases and compounds.

Simple bayonet twist on/ twist off barrel attachment. Ideal for applying solder paste, solder flux, RTV, silicones, sealants, gels, greases, compounds, PVA glues and other liquids. Each Syringe Gun includes the 55cc manual hand gun, (1) dispensing reservoir with piston, (2) dispensing tip.

Additional Information:

Minimum Order Quantity: 1 Piece

Diesel Barrel Pumps

  /> </div>
<div class=

PUMP

Rated input Power-750W (1HP)

Rated Frequency- 50 Hz, 220

Variable Speed Motor

No-load speed-300--15000 r/min. Hydraulics lift- 15 m.

Delivery Capacity- 30-100 L/min. Suction Tube – Aluminium, Impeller – PP

Inlet – 40 mm, Outlet – 25 mm

OPTIONAL ACCESSORIES

Mechanical Turbine Flow meter

Electronic Turbine Flow Meter

1% Accuracy

Assorted Connectors

Automatic Cut Off Nozzle 1”

Black Crimped Rubber Hose 4 meter

Additional Information:

Minimum Order Quantity: 1 Unit

Our Vision

* To embrace new technologies and methods. * To give unsurpassed products and services to the clients. * To constantly look for improvement and changes.

Site Designed & Maintained by Aman Infotech
Adhesive Barrel End Caps, Adhesive Syringe Barrel, Air Grease Gun, Automatic Fuel Nozzle, Aviation Fuel Nozzle, Barrel Piston, Barrel Pump, Brass Y Strainer, Cartridge, Caulking Gun, Cc Helix Dispenser Syringe Barrel, Chemical Nozzle, Dc Continuous Diesel Transfer Pump, Dc Continuous Duty Pump, Dc Diesel Pump Flow Meter Unit, Dc Diesel Transfer Pump, Dc Diesel Transfer Pumps, Dc Diesel Transfers Pump, Dc Diesel Transfers Pumps, Dc Gear Oil Pump, Dc Submersible Pump, Diaphragm Pump, Diesel Barrel Pump, Diesel Barrel Pump Dispensers, Diesel Barrel Pumps, Diesel Dispenser, Diesel Dispenser For Tankers, Diesel Filter, Diesel Flow Meter Nozzle, Diesel Flow Meter Nozzles, Diesel Flow Meters Nozzle, Diesel Pump Flow Meter Nozzle Dispenser, Diesel Pump Flow Meter Nozzle Dispensers, Diesel Pumps Flow Meter Nozzle Dispenser, Diesel Transfer Kit, Diesel Transfer Skid, Diesels Dispenser, Diesels Dispensers, Diesels Dispenserss, Dieselss Dispensers, Digital Diesel Oval Gear Flow Meter, Digital Oval Gear Diesel Flow Meter, Digital Turbine Diesel Flow Meter, Dispensing Gun Valve For Sealants, Dispensing Needles, Dual Voltage Dc Diesel Transfer Kit, Electric Barrel Pump, Electronic Diesel Flow Meter, Explosion Proof Steel Pump Flow Meter Unit, Flame Proof Barrel Pump, Flame Proof Barrel Pump Dispensers, Flame Proof Fuel Dispenser, Flame Proof Fuel Dispensers, Flame Proof Fuel Transfer Skid, Flameproof Barrel Pumps, Flameproof Fuel Transfer Pump, Flameproof Mobile Fuel Dispenser, Flameproof Mobile Fuel Dispensers, Flameproof Mobiles Fuel Dispenser, Flameproof Mobiles Fuel Dispensers, Flameproof Stainless Steel Transfer Pump, Fuel Consumption Meter, Fuel Nozzle Cover, Gear Oil Pump, Grease Gun, Grease Guns, Liquid Dispenser Barrel Adapter, Manual Fuel Flow Meter Nozzle, Manual Fuel Nozzle, Mechanical Fuel Flow Meter, Mechanical Fuel Flow Meters, Mechanical Oval Gear Oil Flow Meter, Metal Cartridge, Micro Peristaltic Pump, Mobile Diesel Dispenser, Mobile Diesel Dispensers, Mobile Digital Dispenser, Mobiles Diesel Dispenser, Oil Dispenser, Plastic Digital Flow Meter, Plastic Flow Meter Nozzle, Products, Pulse Oval Gear Flow Meter, Rotary Diesel Vane Pump, Rotary Diesel Vane Pumps, Stainless Steel Gear Pump, Stainless Steel Pressure Pot, Static Mixer, Static Mixers, Swivel, Syringe Caulking Gun, Te Bent Dispensing Tips, Te Glue Dispensing Needles, Tt Glue Dispensing Needles, Uhmwpe Diaphragm Valve
