Rotary piston flow meter

wide flux, no flow adjustment

is required, measuring mediums

diesel, distilled water, juice,

chemical reagent, pulse output

precision – 0. 3%

min flow – 25 liter/hour

max flow – 500 liter/hour

this flow meter reads both total volume passing & flow rate in liter per minute.
Additional Information:

Minimum Order Quantity: 1 Unit

Approx Price: Rs 10,000 / Piece

Minimum Order Quantity: 1 Piece

Screw Wing Type Mechanical Flow Meter Nozzle is designed to measure volume flow of liquid flowing through the Pipes.

Suitable for Petrol, Diesel, Solvents, Kerosene.

Maximum Working Pressure 0.1 M Pa. Accuracy +1%

Inlet - 25 mm (1”, 1.25")

Flow range 25-200 LPM

Meter Volume ( 1~ 9999)

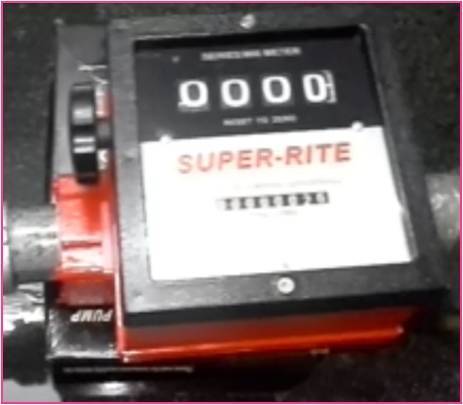

Mechanical Turbine Type

Flow Meter. Designed for Metering

Diesel, Fuel, Gasoline, Kerosene,

Mineral Spirits. Reset register

999.9 Liters .Totalizer 99999999.

Measurement – Liters, Max Pressure

3 Bar. Flow Rate 20-120 LPM, Inlet/Outlet – 1”. Precision + 1%,

Net Wt. 2.5 Kg.

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA
Display Digital
Model OGM-13E
Flow range 3-35 LPM

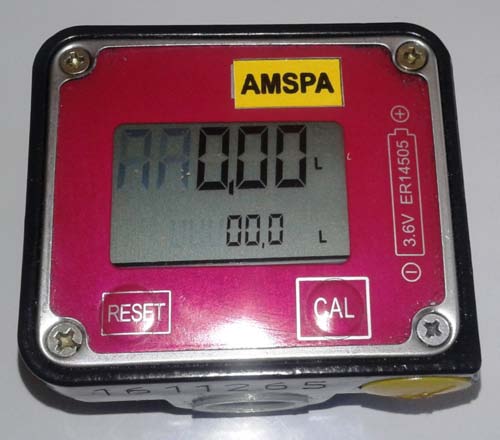

Oval Gear Digital Disel Flow Meter

This oval gear meter is for controlling and measuring low, medium and high viscosity, such as fuel, lubrication oil with advantage of high precision and low pressure loss, compact light weight design and easy installation. It is with LCD display.
5-digital subtotal, with floating point from 0.001 to 999.99. 8-digital non-resettable totalizer. And with pulse output, reed switch built in, signal channel output.

Media < 1000 cps
Inlet 1/2" BSPT
Flow rate 3-35 LPM
Accuracy +/- 0.5%
Max Pressure 70 Bar
Max Operating Temperature - 45 C

Product Details:

offering oval gear flow meters for diesel

(a) size 1"
flow rate 20-120 liter/minute
accuracy - 0. 5%
repeatability - 0. 5%
max operating pressure - 3. 4 mpa

(b) size 1 1/2"
flow rate 25-250 liter/minute
accuracy - 0. 5%
repeatability - 0. 5%
max operating pressure - 1. 8 mpa

(c) size - 2"

minimum flow rate - 30 l/mi
maximum flow rate - 300 l/min
accuracy - +/- 0. 5%
repeatability-0. 03%
max viscosity - 1000 cps
max pressure-1. 8 mpa

available in aluminium only

Product Details:

Minimum Order Quantity 1 Unit
Brand AMSPA

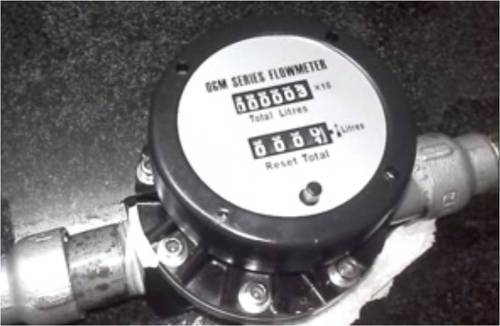

Mechanical Flow meters designed for metering diesel fuel, gasoline, kerosene, mineral spirits, with the advantage of large easy to read no. S. Quick reset knob. Flexible flow ports can be positioned vertically or horizontally. The easy reset register indicates product use up to 999. 9 gallons or liters. The master totalizer. registers up to 99999999 liters. Max pressure 3 bar

Max flow rate 25-250 LPM

BSPF/NPT – 2 inch

Precision 1% Aluminum housing

Max temperature - 70 degree C

Weight - 2. 5 kg

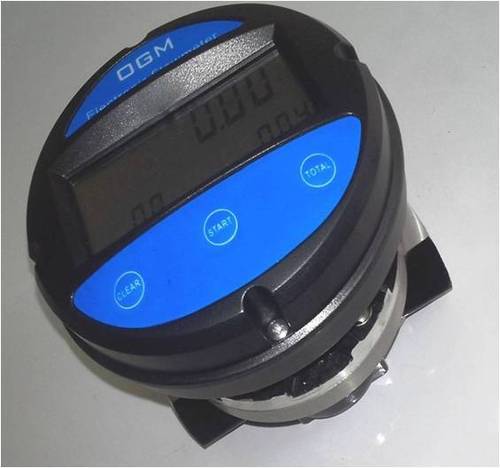

Aluminium Electronic Oval Gear Flow Meter

OGM Type flow meter have the advantage of compact size, easy maintenance, Easy to read and operate mechanical display, horizontal and vertical flexibility of installation options. Low pressure drop. Widely used in industries of petroleum, chemical processing, medicine, transportation food etc.

Available in 1" & 1.5"

OGM-25 E

Size 1"

Flow Rate ( 20-120 LPM )
Accuracy +/- 0.5%
Repetability 0.03%
Max Viscosity - 1000 cps
Max Operating Pressure 3.4 MPa

Size 1.5"

Flow Rate (25-250 LPM )
Accuracy +/- 0.5%
Repatability 0.03%
Max Viscosity - 1000 cps
Max Operated Pressure 1.8 MPa

inlet – connectors - ¾” or 1”
outlet- 1”
accuracy – 1%
flow range – 18. 9-190 liter per minute
max pressure – 20 bar
temperature – (-40 to 80 degree c)
suitable for measuring diesel transferred from tanks to barrel and vehicles.
connector - (optional)
3/4" automatic cut off nozzle - (optional)
1" automatic cut off nozzle - (optional)

flow meter available in aluminium only. Can be clamped to 3/4" & 1" nozzle

Additional Information:

Minimum Order Quantity: 1 Unit(s)
Item Code: TSN-120K24

TSN-600C

Manual Plastic Nozzle PP

For Acids and Chemicals

Seals- Highly resistant Florine Rubber

Wetted Parts PP/SS3044

Oil inlet ¾”

Flow rate – 0-70 LPM

Nominal Pressure – 0.18 M Pa

Connector

Electronic Turbine Flow meter K24

Additional Information:

Minimum Order Quantity: 1 Unit

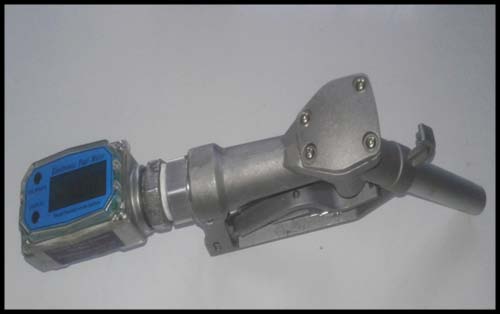

MANUAL FUEL NOZZLE 1”

0-60 LPM, Inlet 1” BSPF, Spout ¾” Suitable Diesel Gasoline

MOC - Aluminum

Electronic Flow Meter, Turbine Type

+1% Accuracy. Current Flow Qty and Totaliser.

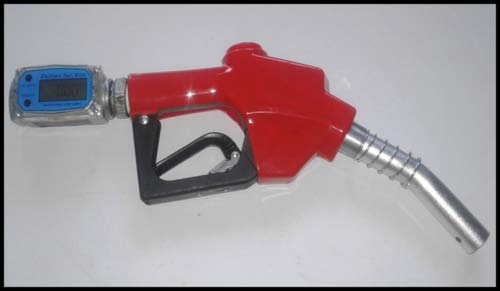

AUTOMATIC FUEL NOZZLE 1”

0-120 LPM, Inlet 1” BSPF, Spout 1” Suitable Diesel Gasoline

MOC - Aluminum

Electronic Flow Meter, Turbine Type

+1% Accuracy. Current Flow Qty and Totaliser.

STAINLESS STEEL PULSE OVAL GEAR FLOW METER

FOR CHEMICALS, FLAMMABLE MEDIA, SOLVENTS

For continuous, intermittent pipe line flow measurement , down stream of pumps

Flow measurement of high precision composed of measuring cavity, seal coupling

and counter of three parts ( Instantaneous , Current , Volumetric ) Accuracy - + 0.3%, MOC – Stainless Steel SS304 , Flow Range – 20-120 LPM, Line Size – 1”

Max Operating Pressure – 34 Bar, Liter Registration, BSPF

Ports. Electronic Display with 5 digit subtotal with floating from

0.01-99999.99

9 digit Non Resettable Totaliser

Max Temperature – 50 Degree C

1" Electronic Diesel Flow Meter
Digital Turbine Flowmeters are best suited for petroleum based products. The modular design allows for maximum flexibility in meeting customers applications. Models are available in BSP fittings.
High Precision, durable and compact turbine flow meters.
Resettable and Cummulative total reading.
Reading in gallons and liters.
Light weight compact design allows easy installation.
Powered by lithium batteries.
Additional Information:

Minimum Order Quantity: 1 Piece
