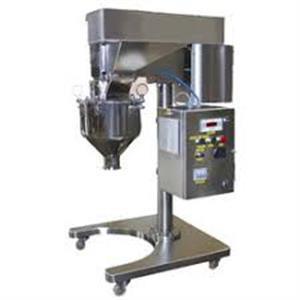

Multi Mill

Multi Mill is used for wet and dry granulation, pulverization etc. The Unit consists of Stainless Steel Hopper, Processing Chamber with Beater Assembly, Motor, DOL Starter, Variable Speed Pulley, Screen and Sturdy Body. It operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container which is kept below the processing chamber. Output and Quality of the final product depends on three key factors like Shape of Beaters (Knife/Impact Edges), Speed and Screen.

Salient Features

Stainless Steel 304 / 316 quality hopper and processing chamber with high degree of surface finish. cGMP construction. • Beaters and scrapper blades made in stainless steel. The same can be easily dismantled and cleaned. + Mill with motor, electrical switchgear along with pillar are mounted on a SS Cladded base plate with castor wheel for mobility. + Available with 3HP & 5HP motor, 1HP motor for R & D model.

Optional :


• Flame-proof motor with Flame-Proof ON-OFF Push Buttons.
• The unit can be provided with Direct Driven with VFD control.
• Discharge Hopper with Jacket
• Single Drive with Dry/Wet Mechanical Seal.
