Sintered Positive and Pasted Negative batteries

Nickel cadmium KRM, KRX batteries are specially designed using sintered positive plates and pasted negative plates for rail applications.

The sintered positive plates are manufactured using a high-temperature sintering process to form strong plates, which can survive the rigors of rail applications. The pasted negative plates are specially designed with high power density and have reduced water consumption. The sintered micro-porous separators and membrane separators provide insulation between the plates and permits free flow of ions.

Superior Features

Taurus Tubular batteries are made of robust & aesthetically superior PPSFM (Polypropylene Structural Foam Molded for improved rigidity) container. Batteries also available in SAN container.
Positive spine grids produced on high pressure die casting machines gives defect-free grid with fine grain structure. Results in excellent corrosion resistance and long life.
High acid reservoir resulting in reduced need for water top-up even in extreme environmental conditions.
Low antimony alloy minimizes water loss there by reduces the topping up frequencies.
Heavy duty tubular plates for excellent cycle life.
Lower self discharge - Increased storage period.

Description / Specification of Invamagic

We are involved in offering a wide range of Invamagic to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Invamagic. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Nickel Cadmium Fibre electrode batteries may be seen as 3rd generation (1980’s) technology. Pocket plate is 1st generation (1919's) and Sintered Plate is 2nd generation (1950’s). The Fibre Electrode Technology has been provided by DAUG, Germany (research venture of Mercedes Benz & Volkswagen).

Taurus Industrial Batteries

Taurus offers two types of series NDP (Normal Discharge Performance) & HDP (High Discharge Performance) complying to IS 1651 specification. These products cover a wide capacity range that permits selection of an optimum battery for a given application.

Sintered Positive and Pasted Negative

Nickel cadmium KSH range of batteries for high power industrial applications are specially designed using sintered positive plates and plastic bonded negative plates.

The sintered positive plates are manufactured using a high-temperature sintering process to form plates which are strong and porous. The plastic bonded negative plates are specially designed with high power density and have reduced water consumption. The sintered micro-porous separators and membrane separators provide insulation between the plates and permits free flow of electrolyte.

Benefits

Excellent high rate performance to suit application require

THERMAL BATTERIES

HBL has established a significant presence in meeting the specialised power requirements of the Defence sector. HBL can design and supply Thermal batteries to customer specification requirements with electrical and mechanical activation systems.

Chemistry: Lithium- Iron Di-Sulphide

Triumph - Tubular Gel VRLA Batteries for Solar Photovoltaic

Charge input from solar arrays sometimes is insufficient to keep the batteries fully charged. During sun-less days, batteries are discharged but not charged. These conditions result in battery operating in Partial State of Charge (PSOC), Cycling and Deep-cycling. Also, solar systems are installed in open atmosphere exposing the batteries to extreme temperatures. Other lead acid batteries fail in such conditions due to sulphation, stratification, corrosion and plate shedding. Moreover, remote solar installations make water top-up difficult and costs money.

To meet such rigors of usage HBL introduces a maintenance free (no water top-up) Tubular Gel VRLA battery with unbeatable combination of Tubular plate and gelled electrolyte, which is a perfect fit for all solar applications.

A battery is a critical component of any power supply system and has a significant impact on its performance and reliability. Today, there is a distinct preference for high-performance, compact and light weight batteries.

Engineered by HBL, Lead-X redefines performance. Lead-X batteries employ Pure Lead-Tin, thin plate design for high performance. These Valve Regulated Lead Acid (VRLA) batteries are designed using Absorbent Glass Mat (AGM) separators that render the batteries spill-proof. Use of AGM separators in combination with self-resealing, pressure regulating valves and a starved electrolyte design enable recombination of gasses generated during normal operation. This eliminates the need for electrolyte top-up.

Construction:

The construction is based on conventional pocket plate technology by introducing special features to enhance the low water usage, giving extended service life and outstanding performance specially when operating at high temperature.

The active materials are encapsulated between folded steel strips, which are perforated on both sides, thereby increasing the effective surface area and making battery more efficient. These batteries use a special separator, which allows gases generated during charging to recombine inside the cell thus ensuring minimal water loss. This concept enables the batteries exceeding the gas recombination requirements defined in IEC 62259. In normal conditions, VentPro battery shall have only one topping up with water in its total service life.

Superior Features

The positive tubular plate electrode is made by pressure die-casting using a low-antimony lead alloy
The cell cover is made of high quality Glass-fiber Reinforced plastic (GRP). It is resistant to dilute sulfuric acid and is designed for demanding standards of shock resistance
A measurement sensor in form of a lead strip is provided between the container walls and the rubber lining to sense any possible acid leakage from the cell container

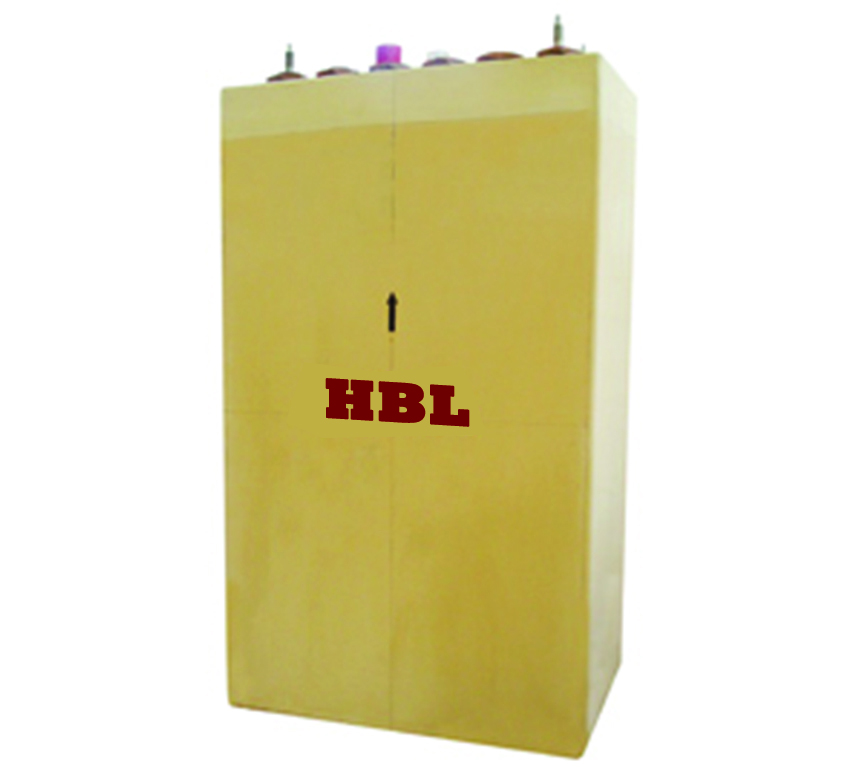

Each cell is equipped with an acid circulation system. Compressed air from submarine’s pressurized air supply system is used to circulate the electrolyte inside the cell using the principle of an air pump
Use of very low antimony alloys, high purity materials and superior separators ensures very low hydrogen generation rate making the battery very safe for use in submarines

ATTERIES  »

BATTLE READY BATTERIES FOR DEFENCE

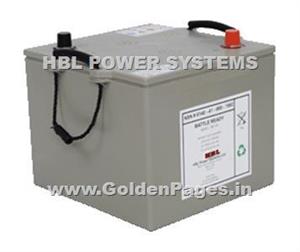

Battle Ready Batteries for Defence

HBL’s Battle Ready batteries employ Pure Lead-Tin, Thin plate technology for high performance. These Valve Regulated Lead Acid, maintenance free batteries are designed using Absorbent Glass Mat (AGM) separators. The use of AGM separators in combination with self-resealing, pressure-regulating valves and a starved electrolyte design enables recombination of gasses generated during normal operation. This eliminates free acid and the need for electrolyte top-up. These batteries are tested for vibration & shocks. Battle Ready batteries are delivered fully charged and are ready for use.

Superior Features

Superior plate design using pure Lead Tin grids
High peak power capability guarantees starting under the most adverse condition
Resistant to high levels of shock and vibration
Flame retardant polypropylene container and lid ensures safety
Excellent deep discharge recovery characteristics
Reliable operation at extreme temperatures (-40°C to +50°C)
Maintenance free and spill proof, ideal choice for all tactical vehicles
Compatibility with on-board charger ensures quick recharge
Supplied in the filled, charged and ready to use condition

Description / Specification of Taurus Batteries For Railways

We are involved in offering a wide range of Taurus Batteries For Railways to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Taurus Batteries For Railways. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

ATTERIES  »

PURE LEAD TIN (PLT) BATTERIES FOR UPS AND DATA CENTERS

Pure Lead Tin (PLT) Batteries for UPS and Data Centers

“Pure Lead Tin” technology is an advanced lead acid technology ideally suited to high rate discharge applications where TOTAL reliability is demanded.

Uninterruptible Power Solution for Data Centers

Data centers are critical business hubs for banks, insurance companies, government institutions and many other institutions. A totally reliable power supply is needed for their operations. UPS are typically used in parallel with diesel generators. On failure of the grid power the UPS takes on the load – while the generator is started, stabilized and switched to take over the critical loads. For the power system to be totally reliable the facilities engineer needs a totally reliable battery. This application requires the best available battery to deliver the load for a typical duration of 5 to 15 minutes. Thereafter the loads will have switched to the alternate DG power

Pure Lead Tin batteries are tested and validated by Intertek India PVT LTD as per IEC 60896-21 & 22:2004.
