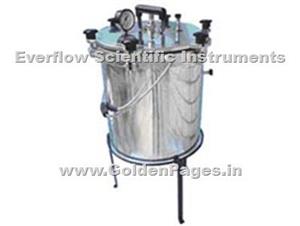

Complete stainless steel body.
Fitted with pressure gauge upto 20 psi.
The Unit has spring loaded safety valve for pressure adjustment and a dead weight safety valve.
Autoclave is hydraulically tested upto 30 psi.
The unit is fitted with electrical fittings, chord and plug.
Suitable to work on 220/230 Volts, AC supply.
The Unit consists of a compact rectangular box section of light metal alloy, housing the heating elements and built-in energy regulator controls.
The flexible and elastic heating elements ensure closer contact with the flask surface and even distribution of heat over the contact surface which minimises the breakage of glassware. High thermal insulation of glass wool backing the heating elements, minimises the heat losses.
Every flask recess is provided with a pilot lamp and a regulator or toggle switch.
The built-in energy regulators, where provided felicitate good control of temperature.
Supplied With Clamps, Boss-Heads with two vertical and one Horizontal rods
Neon lamp indicators, toggle switches. Energy regulators,
Chord and plug for 230 V, 50 c/s., AC. [WITHOUT GLASS PARTS] .
 59972.jpg)
The Outer shell is made of Mild Steel sheet with powder coat finish.
Top Working space is made of Stainless Steel Plate (or) Mild Steel Plate.
Nicrome Heaters provided immediately beneath the working surface.
The Unit is fitted with Energy Regulators for regulating the heat.
Suitable to operate on single Phase, 230 volts, 50 Hz
Double walled construction with Inner Stainless Steel and Outer Mild steel with powder coat finish.
Temperature ranges from 5° C above ambient to 100°C and is controlled by thermostat.
Glass wool Insulation between the walls.
Top of the water bath provided with hole of 3” diameter with concentric rings.
The bath is fitted with ISI marked immersion type water h
