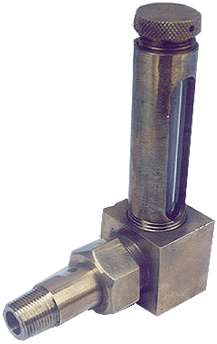

Oil Level Indicator

Magnetic level gauge

Float & Board type

Purge Level Indicator.

MATERIAL

SS-304/316, Carbon Steel, A-105, Aluminum etc.

For corrosive application : rubber lined/lead lined, PVC, P.P.etc., materials.

For medium pressure and temperature : solid cooled rolled bar stock material.

For high pressure and temperature : forged steel is used

GLASS

Tempered Borosilicate Glass resistant to thermal and mechanical shock is used for temperatures upto 200 degree centigrade.
For High Pressure & Temp Imported KLINGER/MAXOS glass
are used to temperature upto 400L C.
A sharp prisms-cut in the Reflex glasses gives maximum reflexability.

GASKET
Recessed smooth finished gasket seats prevent
gasket movement and insure leak-free services

TEFLON

COMPRESSED ASBESTOES

METALLIC COMPREESED ASBESTOS

NEOPRENE RUBBER

SPIRAL WOUND

APPLICATION

Gauges are used to measure and observe liquid level under
difficult or hazardous conditions.

OPTIONAL FEATURES

Engraved Plastic / AlumiSnum / Steel Linear Scale,

Heating/cooling jackets,

Frost Shield

Illuminators,

Mica Protection to prevent Glass erosion.

Pad
