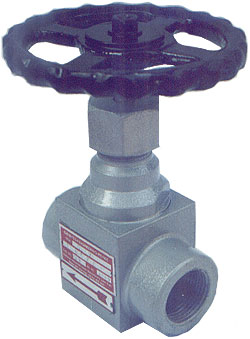

Globe Valves

C.I.E. manufactures a wide range of GLOBE VALVES for use in chemical, petrochemical and allied process industries.

Valves are manufactured and tested as perASME/API codes. Full port design eliminates the pressure drop and permits a smooth flow.

SIZES :

The sizes range from 1/4" to 2" in screwed connection
1" to 12" in flanged connection

OP PRESSURE AND TEMPERATURE : Maximum pressure of 250kg/cm2 and temperature of 400LC.

MATERIALS : The valves are made from C.I., C.S., SS - 304/316, BRONZE, ALLOY-20 AND HASTELLOY B AND C. Seats are stellited which increases the valve life and leakage is totally nullified. Back seating arrangement permits re-packing and gland while the valve is in use. Valves are provided with heating/cooling jackets.
