Designed, engineered, supplied, installed, and commissioned 3,000+ Analyzer Systems globally to variousindustries like refineries, petrochemical, chemical,fertilize power and cement plants in India. Such projects involve, taking a turnkey responsibility for Application data review, Engineering, Construction,Integration and Installation in Analyzer House.

Product Quality/Blending
Supplied analyzer packages for blending of motor fuels (MS & HSD) consisting of NIR, total Sulphur, physical property, viscosity and density measurement. Analyzers delivered were complete with sample probes, sample conditioning, validation, and sample recovery systems.

Steam and Water Analysis (SWAS)
Expertise to provide solutions for accurate measurement and monitoring of Silica, Sodium, Phosphates, Calcium, Chlorides, pH, Conductivity, etc. to assure safety of Boilers and Turbines. Chemtrols' uniquely designed Boiler Blow-down systems, increases the efficiency of the Boilers.

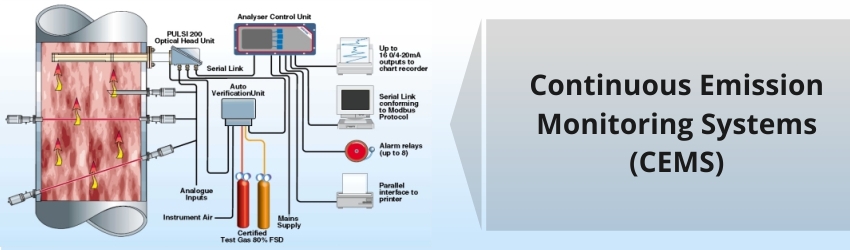

CEMS Analyzer Systems

Optimum solutions to the measurement and monitoring of various pollutants like SO2,NOx, CO, CO2, NH3, HCI, HF, THC, Mercury, etc. Based on the vast experience gained in such systems, Chemtrols today provide solutions on technology platforms of either Dilution Extractive, Hot Extractive or In-situ measurement.

Dilution System
Sample is extracted and diluted with zero air in the probe. Since, dilution takes place within the probe, there is no need for a heat-traced sample transportation line.

Hot - Wet Extraction System
Sample is extracted from stack / duct through a heated filter. Blow back arrangement provided for cases where there is high dust load. Extracted sample is transported using heat-traced line to the sampling system.

In-Situ Instruments
An in-situ gas analyzer sits directly at the measurement point on the stack / duct. Both, cross duct and probe measurement techniques are available.

Also View

Process Analytics
Continuous Emission Monitoring Systems (CEMS)
Ambient Air Quality Monitoring Systems (AAQMS)
Flame and Gas Detection Systems (GDS)

Air Quality Monitor Device

Ambient Air Quality Monitoring Systems or AAQMS monitors the level of pollutants. From a single analyzer to complete turnkey systems (Both Mobile and Fixed) with shelters, hard wired or wireless data transfer to the pollution boards. Chemtrols provides a wide range of solutions to meet much of the Ambient Air Quality Monitoring demands.

Conventional Analyzers - SO2, H2S, NOx, NH3, CO, CO2, O3, and HC BTX Analyzer - Benzene, Toluene, and Xylene Particulate Monitoring -TSP, PM10, PM2.5
Sampling System Calibration Systems
Meteorological Sensors
Data Acquisition and Management Systems Analyzers designed according to US EPA regulations / equivalent regulations Ethernet connectivity for efficient remote access User-friendly interface with single button programming and large display screen
Well thought out of layout design for easy accessibility to components Report generation on an hourly / daily /weekly / monthly / yearly basis.

Flame and Gas Detector Systems
Flame and Gas Detection systems with/without SIL certified controlling & PLC conforming IEC 61508.

These systems are also supplied wireless communication using HART/ ISA 100/ GSM wireless.

SIL 2 certified Hybrid Sensors
SIL 3 certified Controllers
Point IR Gas Detectorss
Open Path IR Gas Detectors
Catalytic Detectors
Electrochemical Detectors
Metal Oxide Semiconductor Detectors
Flame Detectors
Photo Acoustic Detectors
Ultrasonic Gas Leak Detectors
