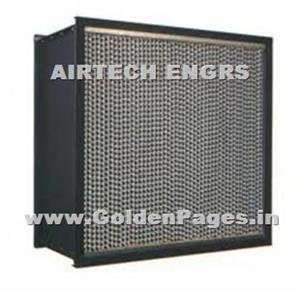

Absolute Hepa Filter

Airtech's Absolute HEPA filters are available in different designs and construction depending on the application.

Construction:

Airtech's Hepa Filters are available in anodized aluminium frames.  The filter media is glass micro fiber filter paper folded around corrugated aluminium / PVC separators potted on the sides with the help of special self leveling epoxy compound, preventing by pass of air between filter pack and the sturdy frame. A closed cell sponge rubber on both the face provides a positive a positive ceiling on installation whether In-terminal or plenum frames.

Features:

Media: Glass Fibre Filter paper (Extended Filter Surface)  Separators: Aluminium/ Also P.V.C. for Special Applications  Casing: Anodised Aluminium / S.S. 304/M.S. powder coated  Gasket: Soft Sponge Rubber? Neoprene Double Faced.  Side Sealant: Epoxy. Maximum Penetration 0.03%- at nominal air volume on Hot DOP (Factory Test) Typical installations: Precision Assembly Areas Pharmaceutical Plants Food and Beverage Processing plants. Computer ventilation System. Research Laboratories Nuclear Operations Photographic Plants and lab And many other applications where it is necessary to: Provide dust free air Remove radio active or toxic dusts. Remove pathogenic organism or mold spores.
