Portable Particle Counter

The ApexZ3 and ApexZ50 are design to be integrated into your environmental monitoring program. With the ability to wirelessly send data to your computer or server, the Apex Z Series can be used as a wireless real-time portable particle counter sensors.

Features

• 0.5 – 10.0µ Particle Size Channels
• 100 LPM Flow Rate
• 21 CFR Part 11 Compliant
• Self-Diagnostics
• 7.0-inch Multi-Touch Display
• Sealed VHP Compatible Enclosure
• Integrated Status Lights
• Hot Swappable Smart Batteries
• Wi-Fi, Ethernet, and USB Data Transfer Options
• Built-In Cleanroom Certification Reports
• 1 Years Warranty

Included Accessories

• USB cable A to B,
• USB flash drive 512 MB with lanyard,
• Tripod mini 7” telescoping,
• ISO probe 1 CFM,
• ISP clamp, tubing 1/2“ ID x 5/8” OD
• Zero count filter,
• 24 VDC 5.0 amp power adapter and power cord,
• 1 Li-Ion battery (2 battery slot capacity)
• Calibration certificate

Optional Accessories

• Temperature & humidity probe,
• Isokinetic sample probe with 6ft tubing,
• Additional Li-Ion batteries,
• External battery charger w/AC & car adapter
• External thermal printer and cable,
• Printed Operating Manual,
• Carry case



Aerosol Photometer

We are latest and easily to used computerized photometer access now a day, our products are standards and the unique materials for filtrations system honesty testing. Providing the fully useful for the base unit, unlimited personally activity in this field. Aerosol photometer access with fixed example for using in different situation.



Organic Carbon Analyzer

Online total organic carbon analyzer for pharma company ACCURA-H has the TOC analyzer related on validation concept, like USP/EP, and latest design and functions in which various industrial equipments are manufacturing. Our company has manufacturer, supplier and exporter of total organic carbon analyzer machine with measurements in Mumbai India to worldwide. It is possible to realize compliance to various kinds GMP economically, these are; the specification of instruments, delivery, even until the validation, our validation engineer will correspond appropriately.

FEATURES

• USP/EP, CE, CSA approval
• Possible to measure TOC completely online
• Possible to oxidize hard-degradable TOC by a high powered UV lamp
• Enhanced networking function
• No need of reagents and carrier gases
• Easy operation and maintenance free
• Possible to get good stability at the low level of the TOC concentration
• Possible to measure TOC on the same line when measurement and system suitability test

THE THEORY OF EVOLUTION FOR CONTINUOUS TOC MEASUREMENT

Measuring by the batch system or using some moving parts, such as pumps to supply sample water into the equipment was conventionally way. By compensating the demerit of each measurement technology, ACCURA series enable to detect momentary increased TOC,（meaning the quality of the water changes sufficiently.

ACCURA inherited only the good nature gene in the TOC measurement technology and evolves every day of total organic carbon measuring instrument. Which made ACCURA becomes best TOC analyzer in the world.



Aerosol Generator

LASKIN – NOZZLE AEROSOL GENERATORS

The 4B series family of Laskin-Nozzle aerosol generators are durable, portable, and reliable.

Designed for testing filter systems ranging from small glove boxes to large cleanroom plenums, ATI Laskin Nozzle generators provide the ideal solution for creating a polydispersed, submicron aerosol to certify and qualify in-situ filter systems.

Aerosol concentration output varies by generator model; however, concentrations can be achieved from 100 μg/l down to 10 μg/l at airflows ranging from 405 to 8,100 CFM.

PERFORMANCE SPECIFICATIONS
Generations	Thermal condensations
Warm Up Times	<90 second to reached operation temperatures of 360º C (699º F)
Systems Flowing Rates	829-120,000 m3/hr. (500 – 70,000 cfm)
Maximum Oil Consumptions	19.9 g/min (0.781 oz.)
Running times	40 minute (at oil consumptions)
Particles Distributions	Meet ANSI/ASME N509/510
Dimension (L x W x H)	42cm x 12cm x 34cm (17” x5”x15”)
Weights	approximately 8 kg empty (17.6 Lbs.)
Standard	ISO14644-3, CE RoHS 2 (2011/65/EU directive)

PRODUCT SPECIFICATIONS
Dimension	42 cm x 12 cm x 36 cm (17″ x 5″ x 15″)
Weights	9 kg (20 lb) empty; 17 kg (40 lb)
Power Consumptions	1040 Watt
Liquid Aerosol Reagent Capacity	1.2 Liter (65 fl oz)
Compress Insert Gas Inputs	1.70 Bar ± 0.08 Bar (26 psi ± 1.0 psi)
Compress Insert Gas Consumptions Rates	6.5 L/min (0.22 cfm)
Duct Systems Requirements	Negative pressure required. Positive duct pressure requires ATI Positive Injection Pump (sold separately).
Duty Cycles	Intermittent ON/OFF or <4 hours ON and >1 hour off



Smoke Generators

MINICOLT 4S – SMOKE GENERATOR

Microbial Sampler

MEET THE NEXT GENERATION OF VIABLE SAMPLERS

Environmental Sensors

REMOTE TRH SENSOR

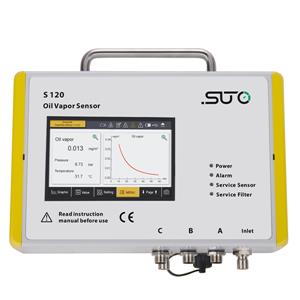

Oil Vapor Sensor

Features

• Measurement residual oil content in compressed air and gas
• Can be use for permanent or in portable application
• Measures down to 0.003 mg/m³ (Resolution 0.001 mg/m³)
• Easily connected through sampling hose to connectors
• Output signals: 4 … 20 mA, RS-485 / Modbus/RTU, Relay switch (NO)
• PID sensors for highest accuracy
• Services and alarms indications through LED
• Connectable to display and data logger such as third party display and controls unit

The outstanding oil vapour sensor S 120 monitor to content of compress air and gas always or for spots instructions when used as portable units in combination. The simplest installation process and the outstanding performance make S 120 the excellent when residual oil content requirements to be measure and monitor.

Oil free air compressed has not an easily assignment to be completed. Our monitoring systems are used many more company and requests to avoids pollutions in product and risk for health of human. The S 120 sensor monitoring tasks are affordable and reliable.

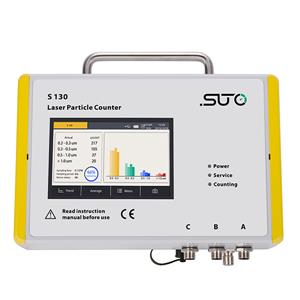

Laser Particle Counter

Features

• Easily connected to compress air to 6 mm connectors
• Like to used as transportable stationary instruments
• Particle size to 0.1 - 5.0 μm (depends on models)
• Optional displays
• Measurement according to ISO 8573-4
• Output signal: RS-485 / Modbus/RTU, SDI (internal signals), Relay switched (NO)
• Connectable to display and data logger to third party display and control unit

The S 130 has a latest laser particle counters improved for presentations in compress air or compressed gas. In view of value and experiments of client requirements this instruments have designed for persistent every minute of every day task. Conditional upon the picked model there are affectability accessible from 0.1 - 5.0 m. This S 130 can satisfy the necessities stipulation in the compacted air standards ISO 8573-4. The measure test esteems speak to the laser particle checks per ft³, l or m³ or on the other hand in g/m³. Settings should be possible through the incorporated presentation, an outer show or through the administration programming.



Point Sensor

Features

• Quick response ensure and safe time to reliable indications whenever dew point is out of valid range
• Slight sizes make it ideally for dryers installation
• Measuretest to dew point down to –100 °C
• New sensor technology
• Versions with integrated pressure measurements
• Various outputs version availables: 1 x 4 to 20 mA, 2 x 4 to 20 mA, RS-485 (Modbus), 4 to 20 mA loop power
• IP65 casing provide robust protections in rough industrial environments
• Can be installed direct into dryer through G 1/2” thread
• High accuracy of ±2 °C dew points sensor
• M12 connectors

The measuretest dew point sensor S 220 offers reliable and long lasting constant dew point monitoring for industrial application. Measuretest has used a latest sensors technology and materials, it has higher signals at very low moisture level thus in case reliable measurement down to –100 °C.

With stainless steel wire filters with opening size to below 30 um protected the sensors from particle. It has designed for application to very low moisture level and requirements to be detect. The measured dew points are output through a 4 to 20 mA signals (3-wire or loops power). Dew point sensor to parameter such as analogue outputs scaling, physical unit can be easily changed by using measuretest service kits.



Compressed Air Flow Meter

Feature

• Compressed air flow meters
• Measurement flowing meter and total consumptions
• Flexible installing for air pressure
• Two type’s calibrations curve saved sensors in the internal memory
• We used two different types of gases for sensor
• IP for industrial environments
• Pipes diameter to 1” … 12”

A compressed testing meters S 401 has needed in nearly some compressed air systems. It supports your monitoring systems supports you to optimize your systems and gas management equipments. Pressure Temperature Sensors the compact monitor your compressed air pressure solution with 4 ... 20 mA output. Current CLamp Sensor Rogowski Coil for wide range at high accuracy.

Air flowing meters has prepaired to be easily to use for gas management measurements equipments manufacturers with reasonable price, we are offering a many other compressed ait testing products. It’s easily made and chooses the correct flow meter for your suggestions, fit for your requirements. The models are meters, created on its measurements principle it’s not compulsory to reward the air compressed testing equipments, needs any additional measurements installation and measuring the flowing consumptions.

As per flowing meters are also suitable for used to gas measurement like nitrogen or several other gases. This S 401 sensors equipment provides you with extraordinary resolutions and sampler rates give exact result and accurate measurements. Our flow meters are capable calibrations curve, owing to these the sensors gas measurements without any damages of precision.

We are provided optional colour display has designed to appearance entirely measurement standards that real flow and totally consumptions. At a time we could succeed the sensor setting likes measurement equipments type available.

Our company manufacturing two different types of flow meter output signals. It can’t stand prepared with an insulated analogue and positive output signal compressor air testing and the totally compressed air consumptions. Otherwise an edge contact all measurement standards through the digitally interface.

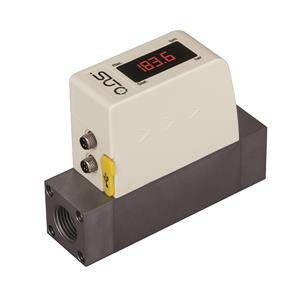

Flow And Consumption Sensor

Features

• Thermal mass flow without extra compensation
• Perfect to measure your compressed air flow and consumption
• Economic and affordable compressed air flow meter - S 415
• High end compressed air flow meter - S 418
• Wireless communicate interfaced for sensors setting
• Accuracy up to 1%
• Various sensors output: 4... 20 mA
• No straight pipe requirement thanks to the combined flowing conditioners
• No measure the whole mass flowing

The SUTO S 415 and 418 thermal mass flow meters provide air flow meter and consumptions measuring direct at the points. We are designing to be continuous combined into our compressed air systems. This system will help you to improved compress air systems productivity.Both versions available standards with wireless communication interface to operate the easily and check the flow meters readings or fix the setting.

The S 415 model for generally processing works with reasonable cost and wide monitoring of the compress air flowing is required, the S 418 model is ideal for remote location or high accuracy compress air flowing measurement with its built-in data logger and optional pressure sensor.

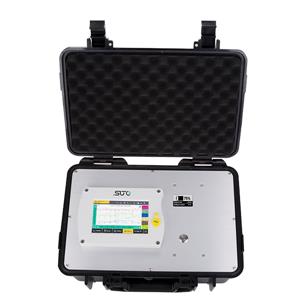

Portable Data Logger

Features

• Data logger for ISO-compliant "Energy management" and "Compressed air audits"
• Flexible, safe, efficient
• Easy to use
• High resolution 5” colour touch screen interface

The ideal data logger for energy analysis and air audits (ISO 11011).

It comes with a high resolution 5” color touch screen interface, making the operation as simple as possible. SUTO intelligent sensors are detected automatically on power-up. With a few settings the data logger is ready for operations with virtually unlimited memory size.



Compressed Air Purity Analyzer

Features

• 4-in-1 measuring device
• High resolution 5” colour touch screen interface
• Software-guided measurements
• Particle concentration measurements according to ISO 8537 standards
• Dew point measurements with multiple sensor technology
• Oil vapor measurements with high precision
• Pressure measurem
• Integrated data logger
• Portable design with 17.7 x 15 x 7.5 inches in size

ISO 8537 complaints clarity quantification of compressed air technique are certain to time consuming installation and long lasting testing analyser. We think it's time to revolutions: The S 600 is disparate its competitions. It combined modern sensors technologies, software shown measurement and a time saving into a touchscreen control and multiple tools inbuilt.

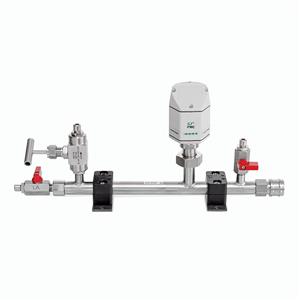

Simple Iso Sampler

Features

• 4-in-1 measurement devices
• High resolution 5” colour touch screen interface
• Software-guiding system
• Particle measurement to ISO 8537 standard
• Dew point sensor with multiple measurement technology
• Oil vapor measurement with highly precisions
• Pressure equipments
• Integrated data logger
• Portable design with 17.7 x 15 x 7.5 inches in size

ISO 8537 compliants pure quantification of compress air system is bound installing and long lasting features. We think for a revolutions: The S 600 is unlike its competitions. It's combine superior sensor technology, software measuring and a time saving setup into a handy, touchscreen controlled with multiple tools.
