Design view - smooth operation, quality work and economy for contractors.
  Easy to install and run – economical fuel consumption. – portable units to match with site and requirement.
  Transportation rules are considered and solved to best level. Most suitable for remote and interior site.
  Components can easily be moved out and packed without disturbing the other, for maintenance or transportation.
  Complete and easy set up to run. Foundation etc. not required, which results in considerable savings.
  Vishvakarma  Plants are designed for quality out-put, minimum operating cost and economical in every consideration.

The four bin feeder unit is having four  bins and each bin is driven by individual Dc  motor  drive so as  to accurately conveyor, flow of aggregate from each bin four bin feeds aggregate to gathering  conveyor which  is driven by Ac motor drive . it is fitted with electronic weighting system material is  form gathering conveyer flow to double deck vibrating screen for removing over size material.

The unit is double deck type vibrating screen removes oversize materials and  feeds the remaining materials to charging conveyer. Separate size of screen can be provided for removing oversize  material is form different kind of mix.

It is elevates the mix aggregate to such height  that the mix material can be directly loaded in the dumper . it is fitted with hydraulically operated hopper whit helps the material to fall without segregation

Description / Specification of Slinger Conveyor

We are involved in offering a wide range of Slinger Conveyor to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Slinger Conveyor. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

It is also fitted at the output end of the plant Filler unit into lime / cement/dust feeding rotary pump with fitted dc motor drive and air blower quantity of filler material to be added in the mix.

It is insulated cabin is  provided with electric panel to operate the entire plant , the cabin may not have air conditioning system as per client requirements

It is fabricated from 16 SWG CRC sheet and processed with painting, the panel has in –feed  master control, Aggregate flow measurement system, which controls asphalt flow, individual bin, asphalt flow indicator, automatic synchronization of aggregate with asphalt, aggregate and asphalt with totalizer printer for print -out record of all parameters for an instant verify of formula, automatic temp controls with indication, metering for aggregate, asphalt, input voltage, moisture and motor load.

Pug mill unit capacity is 100 TPH. Here is the end of aggregate circulation cold aggregate form bines through cold conveyer system is being mixed with water from water tank, two oppositely rotating paddle arms shaft make a homogeny our mix and push it to out let tipper and transported to site.

Nozzles and Water Bearing Plates are made of Stainless Steel to resist corrosion. The Sludge Pond requires to be cleaned once a week based on normal site conditions. As a safety measure, always surround / cover the Sludge Pond with wire fence sonce, working temperature of water may be above 80 Degree. It is also necessary to have the Drain pipe submerged in pond.

Description / Specification of Asphalt Combine Wet Mix

We are involved in offering a wide range of Asphalt Combine Wet Mix to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Asphalt Combine Wet Mix. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Description / Specification of Wet Mix Combine Asphalt

We are involved in offering a wide range of Wet Mix Combine Asphalt to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Wet Mix Combine Asphalt. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

An insulated storage tank is designed with heating system. It is insulated to prevent heat losses. Tank is equipped with separate automatic electric burner for heating the asphalt. Automatic burner makes a hot gas stream through pipe for heating. 25 mm thick external insulated with steel sheet covering. Temp-Gauge is provided for examining the status leading to uniform quality. It is fabricated by using M. S. Section and plates. It is having 10,15 upto 30 Tones capacityin various safe like round and U safe.

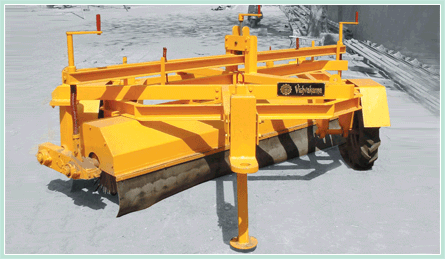

t is a Mechanical tractor linked Broom (Sweeper) fabricated from a pressed steel robust design, which gives an excellent strength to weight ratio. Brush sections are supplied in crimped steel wire OR Polypropylene (Nylon) and are easily replaceable. The machine can 2.25 meters wide road and the brushes are 18" in diameter.

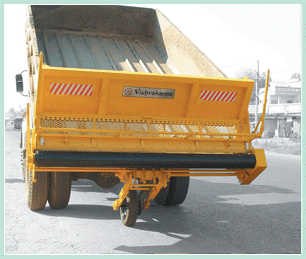

BODY
It is fabricated from 4mm & 6 mm Pressed steel plate with square and rectangular section reinforcing.

FEEDGATE
Adjustable gate with hand operated adjusting screws. Bottom section of gate in rubber to permit passage of oversize objects without damage. The gate is removable.

FEEDROLLER
Serrated surface feedroller constructed from 165 mm dia, and 2.5 m in width, mounted between self aligning, lubricated for life, bearings.

DRIVE
A pneumatic tyred wheel transmits drive for the road surface to a dog clutch mounted on a lay shaft. The drive is then transmitted throught this shaft to a chain drive fitted to the feedroller.

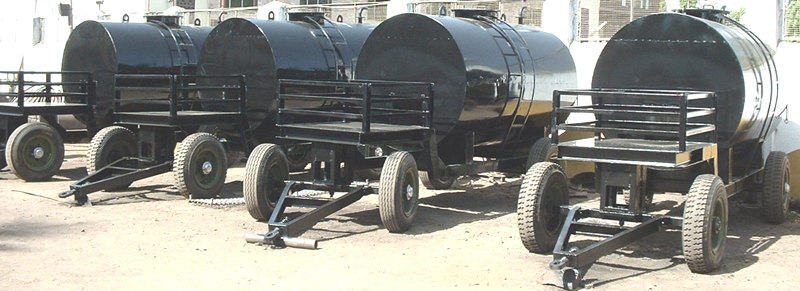

Wooden heating system
The tank is insulated to prevent heat losses
It is chassis mounted unit for different places where it is difficult to attend by a heavy unit
Heavy duty ms hubs, wheels plates and remold tyres (900 x 20)
It is fabricated from ms plates & section
Temp-meter, Two flange valves are fitted as out-let asphalt from boiler
Easy to feed-up asphalt barrels from top. Only for U-Safe model
3 Tones capacity boiler
