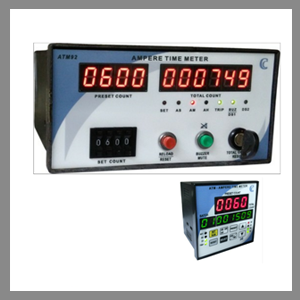

Ampere Minute Or Hour Meter

We offer Ampere minute | hour meter, a precision Electronic instrument with latest ic technology. This meter is used for electroplating thickness control and testing battery Amp-Hr. These meters are available with 6 RED 7 Segment LEDs of 0.56” character height. However, the current display is fixed at Max 9999 Amps using a shunt of current & 75mV for user programmed. Following are some of the features of our model 800AH programmable amp-hour meter:

Electroplating: Plating thickness is directly proportional to the integration of current over a period of time. The preset Amp-Hr or Amp-Min limit ensures precision repeatability and uniformity of the plating thickness guaranteeing quality and avoiding wastage of material. Time controlled dosing pumps allow automation. Hence where there is a criticality of the thickness of plating and uniformity is required, Ampere-Hour | Minute Meter is the solution. For example, gold plating, rhodium plating, platinum plating etc.

Battery Testing: The instrument integrates the current while allowing the charged battery to discharge through a load until the battery voltage falls below the specified limit (10.5V for a 12V battery), to give a measure of the AH rating of the battery.
