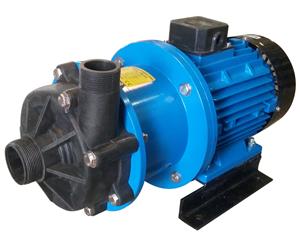

Magnetic Drive Pumps

Series PMD : Magnetic Drive pumps in PP &  PVDF  construction

These pumps are 100% Leak Proof and ideally suitable for handling corrosive chemicals, toxic and fuming liquids, acids, electroplating chemicals, dyes, solvents, petrol, kerosene, pharmaceutical and food syrups etc.

These pumps are 100% Leak Proof Magnetic Drive pumps. There is no shaft seal used and the impeller is provided the rotation with the help of Magnetic drive.  High Power permanent rare earth Magnets are used in magnetic drive arrangement which gives high mechanical efficiency with zero slippage.

All PMD  Magnetic Drive Pumps are available in Monoblock type only with Std TEFC motor and Flame Proof motors

Material of Construction : GFRPP (Reim Forced Poly Propylene) , PVDF (polyvinylidene fluoride)

Operating Temp :  PP upto 70 deg C .  PVDF upto 100 deg C

Features & Application

• 100% Leak Proof Pumps
• No Shaft Seal to maintain, replace
• High Efficiency due to permanent magnet power coupling
• Simple design, easy to operate & maintain
• Very useful for handling highly corrosive chemicals, plating chemicals, toxic & fuming liquids

Range

• Capacity from 10 LPM upto 570 LPM
• Head upto 32 mtrs.
• Moc in PP, SS-316 & PVDF

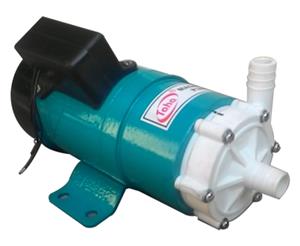

Sealless Magnetic Drive Pumps

Series PMD : Magnetic Drive pumps in PP &  PVDF  construction

These pumps are 100% Leak Proof and ideally suitable for handling corrosive chemicals, toxic and fuming liquids, acids, electroplating chemicals, dyes, solvents, petrol, kerosene, pharmaceutical and food syrups etc.

These pumps are 100% Leak Proof Magnetic Drive pumps. There is no shaft seal used and the impeller is provided the rotation with the help of Magnetic drive.  High Power permanent rare earth Magnets are used in magnetic drive arrangement which gives high mechanical efficiency with zero slippage.

All PMD  Magnetic Drive Pumps are available in Monoblock type only with Std TEFC motor and Flame Proof motors

Material of Construction : GFRPP (Reim Forced Poly Propylene) , PVDF (polyvinylidene fluoride)

Operating Temp :  PP upto 70 deg C .  PVDF upto 100 deg C

Features & Application

• 100% Leak Proof Pumps
• No Shaft Seal to maintain, replace
• High Efficiency due to permanent magnet power coupling
• Simple design, easy to operate & maintain
• Very useful for handling highly corrosive chemicals, plating chemicals, toxic & fuming liquids

Range

• Capacity from 10 LPM upto 570 LPM
• Head upto 32 mtrs.
• Moc in PP, SS-316 & PVDF

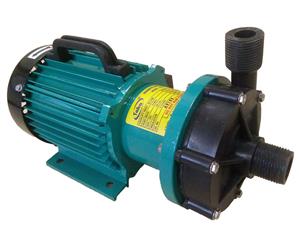

Poly Propylene Pumps

Series PMD : Magnetic Drive pumps in PP &  PVDF  construction

These pumps are 100% Leak Proof and ideally suitable for handling corrosive chemicals, toxic and fuming liquids, acids, electroplating chemicals, dyes, solvents, petrol, kerosene, pharmaceutical and food syrups etc.

These pumps are 100% Leak Proof Magnetic Drive pumps. There is no shaft seal used and the impeller is provided the rotation with the help of Magnetic drive.  High Power permanent rare earth Magnets are used in magnetic drive arrangement which gives high mechanical efficiency with zero slippage.

All PMD  Magnetic Drive Pumps are available in Monoblock type only with Std TEFC motor and Flame Proof motors

Material of Construction : GFRPP (Reim Forced Poly Propylene) , PVDF (polyvinylidene fluoride)

Operating Temp :  PP upto 70 deg C .  PVDF upto 100 deg C

Features & Application

• 100% Leak Proof Pumps
• No Shaft Seal to maintain, replace
• High Efficiency due to permanent magnet power coupling
• Simple design, easy to operate & maintain
• Very useful for handling highly corrosive chemicals, plating chemicals, toxic & fuming liquids

Range

• Capacity from 10 LPM upto 570 LPM
• Head upto 32 mtrs.
• Moc in PP, SS-316 & PVDF

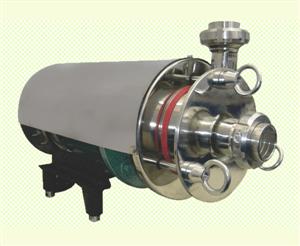

Dairy And Milk Transfer Pumps

Series CFS – Sanitary Design Centrifugal Pumps with S.S. Shroud

Complete SS-316 Sanitary Design Centrifugal Pump Made From Food Grade Rolled Steel Material. All Wetted Parts Are Through Grinded And Finished. Front Open able Suction Casing with SMS Type or TC/TC Type Suction X Delivery. Sealing By Highly Durable Mechanical Seal of Silicon with SS-316 Internals.CIP Design for Use in Food & Parma Industry.

To Transfer Liquid Like Milk, Butter Milk, Sugar Syrup, Soft Drink,Pharma Syrup, Mineral Water, Fruit Juice, Beer etc.

All CFS series pumps are available in Bare Shaft and Monoblock design with std. TEFC motors OR Flameproof motors.

Material of Construction   :  SS 316

Operating Temp : Std. 110 deg.

Features & Application

• Simple & Front open design
• All contact parts of SS-316 material
• Best in class efficiency with high head and high capacity
• Available in monoblock & Bare type
• Available With SS Shround And Legs

Range

• Capacity from 20 LPM to 2000 LPM
• Head upto 60 mtrs.

Sanitary Pumps

SSP - Self Priming Regenerative type Monoblock Pumps

SSP Series pumps are Self Priming pumps which are ideal for use in barrel unloading, tanker unloading, Chemical transfer from sump to overhead tank and many process application. All parts are made from Graded SS 316 investment casting which gives better quality, surface finish and longer life. Precision manufacturing with precise tolerance enables pump to deliver high capacity and head. SSP series pumps can also be used for boiler descaling, pressure boosting, water recirculation, beverages, petrol , kerosene and diesel etc. Shaft sealing is done by Mechanical seal which is available in Carbon, Ceramic and Silicon as per the requirement.

All RPS series pumps are available in Bare Shaft and Monoblock design with std. TEFC motor OR Flameproof motors

Material of Construction   :  SS 316

Operating Temp :  Upto 150 deg C.

Features & Application

• Self Priming Action. No need of Foot Valve
• All SS 316 contact parts
• Compact design and efficient operation
• Use ful for barrel unloading of Mild Chemicals, Acids
• For Pharmaceutical , Beverages and DM Water
• Textile dyes and solvents etc

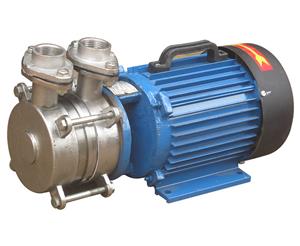

Self Priming Ss Pumps

SSP - Self Priming Regenerative type Monoblock Pumps

SSP Series pumps are Self Priming pumps which are ideal for use in barrel unloading, tanker unloading, Chemical transfer from sump to overhead tank and many process application. All parts are made from Graded SS 316 investment casting which gives better quality, surface finish and longer life. Precision manufacturing with precise tolerance enables pump to deliver high capacity and head. SSP series pumps can also be used for boiler descaling, pressure boosting, water recirculation, beverages, petrol , kerosene and diesel etc. Shaft sealing is done by Mechanical seal which is available in Carbon, Ceramic and Silicon as per the requirement.

All RPS series pumps are available in Bare Shaft and Monoblock design with std. TEFC motor OR Flameproof motors

Material of Construction   :  SS 316

Operating Temp :  Upto 150 deg C.

Features & Application

• Self Priming Action. No need of Foot Valve
• All SS 316 contact parts
• Compact design and efficient operation
• Use ful for barrel unloading of Mild Chemicals, Acids
• For Pharmaceutical , Beverages and DM Water
• Textile dyes and solvents etc

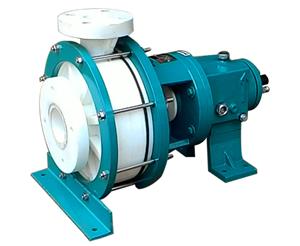

Pp Monoblock Pumps

Series PCX – Process Pumps in Poly Propylene with Mechanical Seal

PCX series pumps are Horizontal Centrifugal Volute Casing type Process pumps with Mechanical Seal. Highly reliable and sturdy design pumps for handling corrosive liquids. Better efficiency due to computer aided design of Volute casing, Impeller etc resulting in lower power consumption and smoother operation.   Heavy duty bearing box and heavy duty shaft ensures longer life of the pump.

Pumps are available with Teflon Bellow type Mechanical Seal with GFT v/s Ceramic face combination OR with pure Teflon gland packing with High Alumina Ceramic or SS 316 shaft sleeve.

These pumps are ideally suitable for handling corrosive chemicals, acidic water with mild impurities, pickling plant chemicals, effluents and boiler descaling chemicals.

All PCX series pumps are available in Bare shaft pump only. Base Frame & Coupling can be provided for mounting motor directly.

Material of Construction : Filled Poly Propylene , PVDF (polyvinylidene fluoride)

Operating Temp : PP upto 70 deg C . PVDF upto 100 deg C

Features & Application

• Made from 100% virgin PP for best resistance against corrosion and long lastings.
• Computer aided casting & impeller design for smootj hydraulic passage that gives best   efficiency & performance.
• useful for handling corrosive chemicals in various industries and different application.
• Standard design ensures interchangebility of spares

Range

• Capacity upto 100 m3/hr.
• Head upto 45 mtrs.
• Moc in Poly Propylene, PVDF
• Sealing Teflon Bellow type or Gland Packing

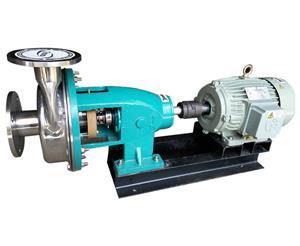

Ss Monoblock Pumps

Series CFP – SS 316 Centrifugal Chemical transfer Pumps

Complete SS 316 Horizontal Centrifugal pumps with High head & High discharge design. Front openable Suction casing for easy operation and maintenance. Hydraulically balanced impeller for better efficiency and lower power consumption.  Fabricated from SS 316 rolled steel sheet give better surface finish and low liquid friction.  Sealing by Mechanical seal of either Carbon, Ceramic, Silicon or Pure Teflon gland packing.

Ideally suitable for mild chemical transfer from underground to overhead tank, unloading from tanker, washing and cleaning of parts, Food and dairy products, beverages etc.

All CFP series pumps are available in Bare Shaft and Monoblock design with std. TEFC motors OR Flameproof motors.

Material of Construction : SS 316

Operating Temp : Std. 110 deg.

Features & Application

• simple & Front open design
• All contact parts of SS-316 material
• Best in class efficiency with high head and high capacity
• Available in monoblock & Bare type
• Sealing by Mechanical Seal of Carbon, Ceramic, SC, TC, & Pure Teflon Packing

Range

• Capacity from 20 LPM to 2000 LPM
• Head upto 60 mtrs.

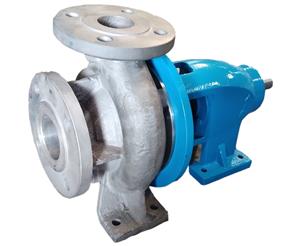

Centrifugal Process Pumps

Series CFP – SS 316 Centrifugal Chemical transfer Pumps

Complete SS 316 Horizontal Centrifugal pumps with High head & High discharge design. Front openable Suction casing for easy operation and maintenance. Hydraulically balanced impeller for better efficiency and lower power consumption.  Fabricated from SS 316 rolled steel sheet give better surface finish and low liquid friction.  Sealing by Mechanical seal of either Carbon, Ceramic, Silicon or Pure Teflon gland packing.

Ideally suitable for mild chemical transfer from underground to overhead tank, unloading from tanker, washing and cleaning of parts, Food and dairy products, beverages etc.

All CFP series pumps are available in Bare Shaft and Monoblock design with std. TEFC motors OR Flameproof motors.

Material of Construction : SS 316

Operating Temp : Std. 110 deg.

Features & Application

• simple & Front open design
• All contact parts of SS-316 material
• Best in class efficiency with high head and high capacity
• Available in monoblock & Bare type
• Sealing by Mechanical Seal of Carbon, Ceramic, SC, TC, & Pure Teflon Packing

Range

• Capacity from 20 LPM to 2000 LPM
• Head upto 60 mtrs.
