Applications:

VFFS Machine for Free flow powders such as coffee, tea products, spices like turmeric, chilly, spices powder, flours like wheat, Maida, besan powder, skimmed Milk powder, tooth powder, herbal powder, talcum powder, distemper powder, glucose powder, chemical, pharmaceutical, pesticides, insecticides, and semi solids like automobile & industrial greases, garlic paste, tamarind paste, ointments etc,

Operation:

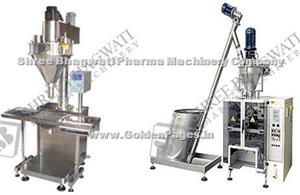

The Bhagwati Make vertical form, fill and seal machine is handles a single reel film stock. Max. Reel Dia. is 530 mm on 76 mm core. The Auger Powder Filling Machine has the facility to be provided with a variety of filling heads. Draw down of the film is through draw down belts controlled through a servo motor. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel. The Auger Powder Filling Machine will accept most types of laminated films up to a maximum of 500 gauges. It is important that the sealing medium incorporates the best possible slip characteristics. Pure unsupported polythene film may be used with special impulse sealing equipment.

Technical Details: :Auger Powder Filling Machine

Feeding head Auger Screw filler with revolution counter
Production speed 60 to 70 pouches / min (depending on product)
Machine control system PLC (Programmable Logic Controller)
Packing range 14 gm to 50 gm
Film width up to 450mm
Film thickness 75-100 microns
Film material Laminated or Co-Extruded Virgin films
Sealer heating system Continuous or Impulse
Filling accuracy +/- 0.5 grams
Inner core Dia. of film roll 70 mm
Outer Dia. of the film roll Up to 400 mm
Pouch style Centre sealed Pillow type
Pouch width Up to 215 mm
Pouch length Up to 300 mm
Compressed air pressure 6 kg/cm² at 40º C
Air consumption 60 m³ / hour
Power consumption 3 KW / hour
Peak power 7.5 kW
Power requirement 3 Phase, 415 V, 50 Hz. Plus Neutral
Cooling water requirement 50 liters / hour (Reqd. for Virgin films only)
Film guard mechanism Auto stop when film is exhausted
Pouch Counter Provided
Date printing device Provided
Photo cell Provided
Machine dimensions 3000 (H) x 1500 (W) x 2000 (Depth)
Net Weight 1200 Kgs (approx)

Salient Features:Auger Powder Filling Machine

Very easy to operate
Products contact parts are made of stainless steel
Compact design with castor wheel for easy mobility
Unique online telescopic system for easy weight adjustment
Digital temperature controller
Heater indicator with buzzer
Digital Photocell control system automatically adjust & correct "Eye Mark"( ) within ± 1.5mm.
Wt. base to fill fresh French fries and frozen fries
