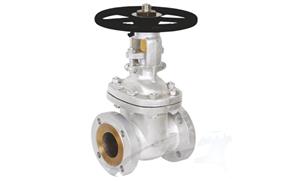

Gate Valve

Features
Design STD.	As Per BS 1414
Face to Face	As per ASME B 16.10
Flange End	As per ASME B 16.5
Testing STD	As per ISO 5208/API 598
Size	15 to 300 M.M.
Size	15 20 25 40 50 65 80 100 150 200 250 300
F/F	108 117 127 165 178 190 203 229 267 292 330 356
OD	89 99 108 127 152 178 190 229 279 343 406 483
Material
Body	CS, WCB, CF8, CF8M etc...
Ball	CA - 15, CF8, CF8M, SS etc...
Seat	13% cR, ss 304, ss 316 etc...
