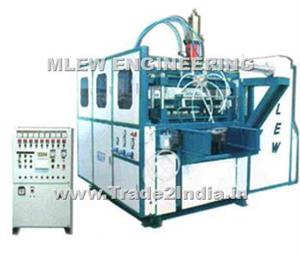

Automatic Thermoforming Machine
Machine construction is very robust, with all Box type excruded heavy duty structural frame & mounted on anti vibration pad for smooth and noiseless running.
High precision Double Cam provided over a rigid Cam support and mounted on main shaft to attain firm position & accuracy.
The upward adjustment of Bottom platten (cutting height) can be adjusted with single screw attached with double leg punch fork.
Use of duplex sandwitch heater arrangement allows even the thickest material to be heated with the minimum material stress to suit the product being formed & is also assisted by a multi heating zone controlled by PID Controls & Thyristor Firing.
Accurate Indexing of sheet (web) is done by spiky chain conveyor & driven by electrical motor / A.C Brake motor.
A peircing heater is provided at the start of both sides of the chain for smooth conveying of the sheet through spiky chain.
All other close controls of various stages are given by a particular comprehensive range of controls provided in the machine through Micro Processor.
Anti sagging arrangements have been provided on both sides of the chain conveyer to control the sag.
