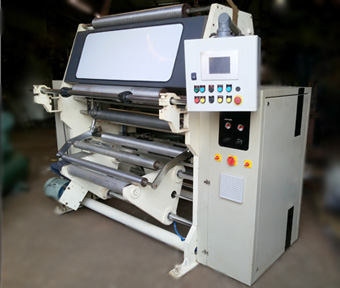

Inspection Rewinding Machine

TECHNICAL SPECIFICATIONS :

Web Edge Guide System
Shaft less System at Unwinder & Rewinder.
3 Drive System for Synchronised auto Tension Controller for Unwinder, Rewinder and Main Drive.
Touch Screen System for easy Operating.
Viewing - Inspection Box for both side.
Stroboscope for full width for Defect Detection.
Pneumatics System for Nipping.
Double Direction with Reverse System.
2nd Small Rewinder for Rewind the wastage.
Winding System :- Shaft less Center Winding
Web width Max./min 1000mm / 500mm
Max. Reel dia. at Unwinder :- 800mm. (500 Kgs.)
Max reel dia. at rewind :- 800mm. (500 Kgs.)
Core ID at unwind :- 76mm & 152mm
Core ID at rewind :- 76mm & 152mm
Core OD at Unwind & rewind
Plate Thickness :- 30mm
Substrates :- Polyester, BOPP, LDPE, Laminates
Mechanical Design speed :- 225 meters per minute
Operating speed :- 200 meters per minute
Tension at Unwind & Rewind :- 20N to 280N
