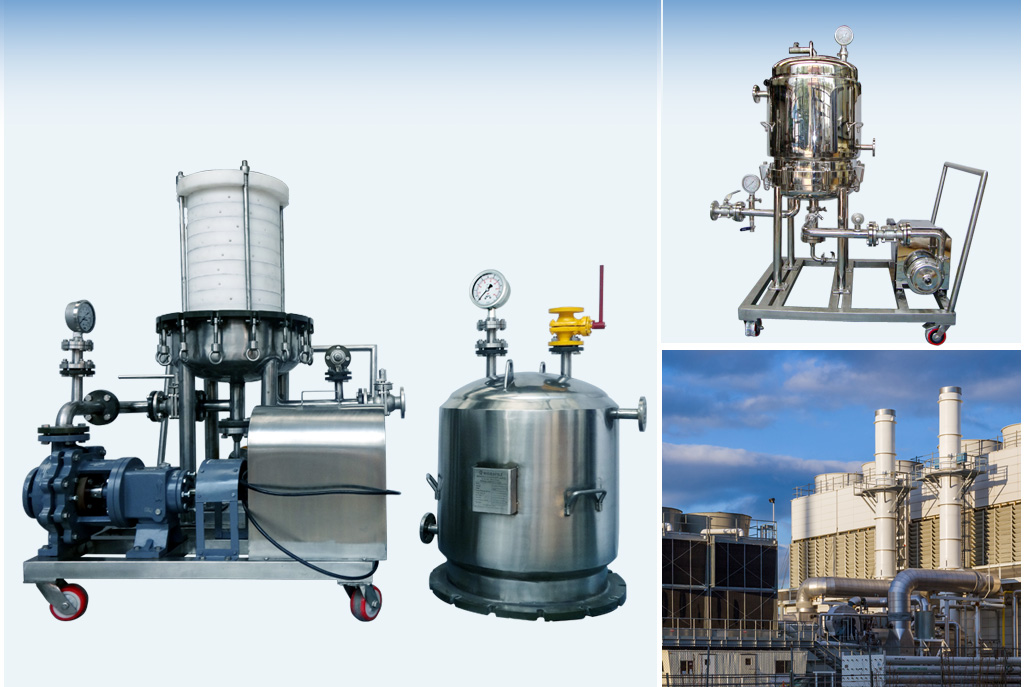

MICROFILT’S Horizontal Filter Press also known as SPARKLER filter, redefine filtration through compactness, ease of operation and robust engineering. Which are ideally suited for filtration of syrup, liquid, chemicals, oil beverages etc. the filter presses are totally enclosed, leak proof assembly. Horizontal filter press, Filter cartridge assembly made of no. of disc Type Filter plates perforated filter screens, filter media, Inter locking cups with pump & piping, mounted on trolley. The swing bolt design ensures air tight sealing and also gives the operator the ability to quickly assemble and disassemble the filtration system. Jacketing option can be provided for heating or cooling the product. The zero hold up models ensure all the fluid is transferred to the filtrate side without any holdup. Skid mounted assembly ensures portability and compactness. The filter presses are available in various MOC to suit the product to be filtered and the process required. Various nominal diameters are available 8, 14,18,24, 33 inches with a surface

The Candle Filters are, as all pressure filters, operating on a batch cycle. Candle Filters is the cylindrical shape of the elements that retain the formed cake. Candle Filters are very well suited for handling flammable, toxic and corrosive materials since they are enclosed and designed for hazardous environments when high pressure and safe operation are required. Candle Filters are available in various sizes. Candle Filter consists of three major components:

The vessel
The filtering elements
The cake discharge mechanism

Backwash cycle is for remove the cake

Selection Criteria

Candle Filters are best selected:

When minimum floor space.
When the liquids are volatile and may not be subjected to vacuum.
When there is a risk of environmental hazard
Higher yield & catalyst recovery.
When the cake may be discharged either dry or as a thickened slurry.

Nutsch filter batch filtration technique that uses vacuum/pressure in a closed vessel is mostly used in chemical and pharmaceuticals industries. The system consists of closed vessels with variety of filter media. In this filter solid/liquid slurry is aided by pressurizing the vessels/applying the vacuum. Liquid is passed through the filter and solid concentrated on filter media i.e. cake is retained on filter medium. Synthetic filter cloth, filter pad or the metallic filter is mostly use as filter media. This filter is specially designed for solid liquid separation. We offer cleanable, non-fibre/particle releasing Sintered SS316L filter discs as a option. This is a major advantage in applications requiring filtration of antibiotics, vitamins etc. in sterile rooms where ordinary centrifuge cannot be used and use of conventional filter cloth is ruled out. Nutsch filters are designed to facilitate flexible discharge.

Microfilt Automated Strainer (MASTM) are offered in several configurations requiring filtration from more than 1000 microns to less than 20 for liquids very high in viscosity in excess of 1 lac cp. MAS is mechanically cleaned-in-place filters, eliminates requirement of high area filter. It continuously clean the filter surface and solids can be intermittently discharged from discharge point. When processing water and water like liquids where a low initial investment is demanded, the Standard Series delivers tremendous benefits. Available in 207, 540, 801 and 1602 models, the Standard Series enables operation at a vast range of flow Rates and retentions.MAS filters are ideal for continuous flow (and also batch) applications. Range of filter media available, slotted wedge wire and sintered wire mesh. Micron rating of filter media variation depends on type of application.

MICROFILT’S filter presses are characterized by their robust design and engineering. Designed to increased cake holding capacity by the use of screen. The use of screen greatly enhances the flow geometry of the plates. the innovative, rouge design optimized screen consists of an open filtration area that is 40% larger than the perforated screen design. This results in optimised flow path and enables full use of the filtration area. Increased filtration area directly results in increased flow. The fully enclosed design allows for CIP and SIP cleaning. Mechanical dehydration also results in higher yield and lowering of the residual moisture in the filter cake. The filter presses are precision machined for effective sealing to ensure zero leakage.
