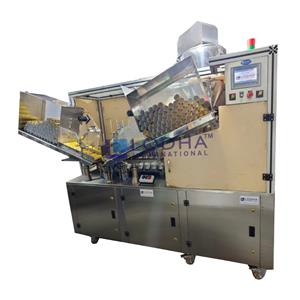

Fully Automatic Linear Tube Filling Machine

Fully Automatic Linear Tube Filling & Closing Machine Model: LI-TF is having applications for metal, plastic, polyfoil and laminate tubes with cassette infeed system. This linear tube filling machine is designed and constructed according to the highest technology standards to guarantee the maximum productivity and quality. Equipment complies according to cGMP standards and therefore suitable for sterile rooms and laminar flows. Easy changeover without tools in very less time. A mechanical lifting mechanism or run by a servo motor (upon request) controls the lifting and descending of the tube according to the fill product characteristics. Excellent access for cleaning and maintenance.

We offer a wide range of Automatic Linear Tube Filling Machines for the Cosmetic, Food, Chemical and Pharmaceutical Industries as per our standard models or according to customer’s specific requirements. Our machine designed to fill Single tube large and small, side by side, dual product. Our machine sealing types include: Aluminium crimping and folding, hot air sealing for plastic and laminates. Our machines can be customized to fit your production needs.

Tube filling machines are manufactured in order to fill ointments, toothpaste and other material in a plastic tube. The tube fillers are a reliable and accurate filler system that offers clean filling of the tube at optimum speed. The role of tube filler is to measure the parameters for quality filling of tubes. The application of tube fillers is that it can be used in different manufacturing companies where the products are kept and supplied in tube form. Usually, the tube filling machine is present in pharmaceutical, food, and construction item manufacturing industries. As there are different roles played by fillers of the tube, here is everything you need to know about the tube filling machines.



Advantages of Tube Filling Machine :

The Tube filling machines are used by the industrial manufacturers, as the rapid speed of the machine is an advantage in filling up products like creams and lotions in tubes, quickly. As the machine has rapid motion the production efficiency also increases. Another advantage of the tube fillers is that they are filled manually, so that tube producers get high fluctuations in the amount of filling process. The beneficial feature of the filling tube equipment is that by using the machine, the company decreases the production cost and the machine also deducts the labour workload, as well as the easy operative feature, allows the user to access the machine without learning any brief mechanism. The Tube fillers are also used to reduce the wastage of products as the leftovers of the product are collected by the machine and is used in another tube.

Salient Features of Linear Tube Filling Machine :

---

• The speed of the machine is 60 to 120 tubes per minute. It will vary depending upon the size and type of product the tube.
• It can fill up from 3 ml to 200ml of cream/Ointment.
• It can seal/close Lami tube up to 40 mm diameter and Aluminium tubes up to 28 mm diameter.
• It will have oval race track with Aluminium tube holder.
• The indexing system will be of Ferguson type oil immersed.
• The body is fully enclosed from all sides.
• The machine will be cladded with pre-buffed SS sheet.
• Over load clutch protection of Conveyor.
• Provision for bar code reading. If required.
• All stationary parts above table top will be in SS 304.
• A variable frequency drive for changing the speed of the machine will also be provided along with the machine.
• The machine will have PLC of Allen Bradley make and touch screen HMI.
• All cams will be hardened and generally all shaft will be supported on bearing.
• The Pneumatics will of Festo, Electricals of Siemens and sensors will of reputed brand from Europe.
• All the door will have safety switch and only 24V DC power will come out of the machine. Even the cassette motor will also operate at 24V DC power.
