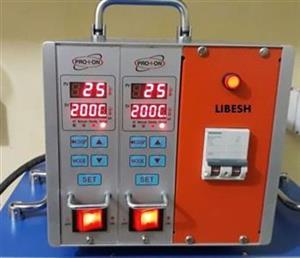

Temperature Controller
PID Soft Start controllers are especially designed for hot runner coil heaters and tubular heaters. It is very efficient and economical. Multi zone hot runner controllers are made by individual temperature controller modules assembled in a cabinet. Soft start facility in this controller will help evaporate any moisture present inside the heater. The coil heaters have MgO content, and are therefore hygroscopic in nature. If kept unused for long periods, there is moisture deposition on the terminals. So we recommend de-moisturizing the heaters by preheating at 100° C to 120°C using controllers with soft start functions.
- Advanced PID control algorithm
- Maximum output power per zone – 3600 W
- Supply Voltage 230 V / 415 V – Three Phases
- Thermo couple input: universal type – (J)
- Temperature display – °C
- Indication of soft start, Load, T.C. open & T.C. Reverse
- Digital display for temperature
Customer just provide basic information about products, number of cavities and polymer ; then we will manufacture and supply entire parts of manifolds and Hot sprue bush or straight shot nozzles. Use as many bolts as needed to maintain rigidity. Keep back plate clamping bolts close to manifolds without expose to direct heat.
Our Temperature Controllers are available in single zone up to twelve zone boxes.
