Pinch valve is a Seat-less & Glandless valve

Pinch valve is a modified version of Iaboratory pinchcock. A rubber sleeve is protected under a body made from cast iron, aluminum casting. The sen/ice material / fluid passing through does not come in contact with either body covering or any other metal parts of the valve except the rubber sleeve / muff and hence the body and other metal parts are almost permanently not subjected to the corrosive action of the fluid. The flow through the valve is straight and full as that of a pipeline, when the valve is fully open. Further, the collar of the sleeve eliminates use of any gasket. The valve having simple rising spindle type operation makes the valve just simple as other wheel operated valve. The in-between stoppage will allow the desired throttling and Pinch valve thus offers positive control over flowing media.

Features :

Seat - less & glandless valves
Field replaceable elastomer sleeve / muff
Rubber sleeve / muff has four reinforced lugs
Flanged ends & drilled to DN, ANSI, BS - 10, IS, etc.
This valve incorporates all design modification based on our experience & is of sturdy construction & good quality finishing to handle

Features

Available Sizes 3"-36"
Abrasivion-Resistant Slurry Sleeves are Field
Replaceable, Provide Bi-directional, Drop-Tight Shut-off and Eliminate the Need for Packing
100% Full-Port Design
Heavy-duty 316L stainless Steel Get
wiper Blade Cleans debris from Gate as it strokes
Open/Close Lock-Out feature (optional)
Robust Corrosion-Resistanct ductile iron yoke
Grease Fittings for Gate and Stern Lubrication is Ductile Iron. SS 304, SS 316, SS 316L, Alloy 20, CD4MCu available on request.

Application :

Powder handling in silos
Pulp and Paper Plants
Slurry Handling(Chemical Plant & Process Industries)
Water and Sewage Applications
Pneumatic Conveying Systems
High temperature services
Mining & Power Plants

Features

WEDGE: Flexible wedge for improved seating ease of operation, specially in high temprature service, wedges are accurately guided thru the entire stroke.

BOBY BONNET CONNECTION: The body&bonnet between cass 150 to 600 bolted bonnet for 900 and above pressure seal design.

GASKET: Stainless steel + flecible graphite spiral wounded gasket is used for O 150 to 600 class, ring joint gasket is also optional for class 600 valves, for class 900 and above pressurized seal design is used.

PACKING SEAL: Die moulded pure graphite rings with top and bottom ring of brained O graphite with inconel wire reinforcement.

Application :

Oil
Gas
Air Slurries
Heavy liquids
Steam
Noncondensing gases
Corrosive liquids

DESCHPUON

Range
Delivery Size up to 200 mm (8" Inch)
Capacity up to 410 M'/Hr.
Head up to 150 Meter
Working Pressur 17 kg/Cm'

Applications :

Acid Transfer, Beverage Processing, Brine, Chemical Processing, Chloral-alkali, Corrosive Services, Organic Chemicals, Polymers, Sea Water, Solvents, Paper, Food, Synthetic Fibers, Slurry & others.

Applications:

The JEC PCF centrifugal pump is suitable for handling water Condensate, oil some aggressive chemical products and other liquids mainly usedinthefollowing application:

Water supply
Auxiliary circuits in refineries
Irrigation 0 Auxiliary circuits in industry
Air conditioning (Paper, Food, Synthetic Fibers, Fire fighting Others.)
Drainage
Heating
Chemical and petrochemical
Sugar and alcohol industry
Boiler feed

Applications:

The JEC Axial Flow pump is unmatched in the industry for high volume / Low head pumping requirements, especially when corrosive and/or abrasive solutions are involved. Mainly used in the following application:


Evaporator and Crystallizer Circulation
Phosphate, Soda Ash, Potash and Sodium Chloride Processing
Polypropylene Reactors, Xylene application
Black Liquor Evaporator, Chlorine Dioxide Generators
Sewage Digesters
Raw Water pumping, Flood control, Marine Ballast transfer

Features:

Semi-open type impeller design to handle slumies with solids
Side Suction & Top Discharge connection
Least Leakage due to gland portion on Suction Side
Harden & Grind Shaft gives longer life
Heavy duty Oil lubricated bearing housing
Available in All CI, Cl/SS, and SS-316 moc

Application:

To support core markets which are Oil and Gas, Textile, Ghemical, Paper and Sugar, Plastic, Pharmaceutical & Food, Plywood, Rubber, Water, and Industrial Applications.

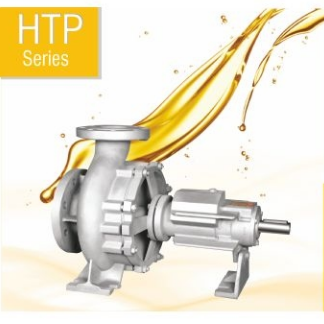

The JEC HTP Series Pump is a horizontal volute casing, single stage centrifugal pump. is manufactured in accordance with Din 24256 (ISO 2858) standard. Designed for thermic fluids and hot water process conditions, Sturdy discharge cover designed for high stiffness, Optimised heat barrier & low wear. Design variant with bearing for high resistance, Reinforced deep-groove ball bearing with special grease fill for long service life,optimised shaft contour ensures reliable removal of leakage, Highly effective venting contour ensures optimum venting, Confined gaskets, Design variant with mechanical seal in tandem arrangement, Anti-seize plain bearing lubricated by the fluid handled, Optimised hydraulic system yields high efficiency, Impeller trimmed to match the specified duty point, Suitable for variable-speed operation and equipped with motor standard, Easy to maintenance for it's back-pull-out design which allows the without needing any type of external air conditioning!

Applications:

Transfering of Concentrated HCL From Road Tankers.
Water Treatment Plants.
Pickling in Steel Rolling Mills.
Scrubbing of Corrosive Gases.Like Ci 2, Br2 , F2 , S02 , S03 , C02 ,Nh3.
Electro-Plating.
Descalin

INDUSTRIES WHERE USED

Dyes and Chemicals.
Drugs & Pharmaceuticlas.
Causitic Soda Plants.
Thermal and Atomic Power Plants.
Fertilizer Plants.
Copper, Zinc, Smelter.
Steel Plants.
TiO2 Plants.
Rayon and Staple Fibre Plant. (Bleach Liquor)
Paper & Pulp Industries.
