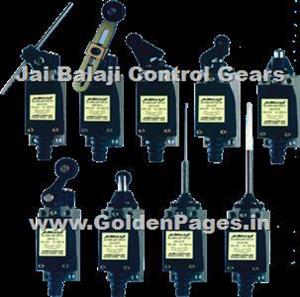

B.C Mini Limit Switches

PRODUCT SPECIFICATION

Utilization Category: AC15 and DC13 as per IEC - 60947-5 & IS: 13947-5-1
Rated Insulation Voltage : 250V AC
Rated Thermal Current Ith : 5A
Contact Ratings : AC15 RATING 250V, 50Hz, 2.0A, DC13 RATING 125V, 0.1A
Mechanical Life Span : 10 x 106 Operations
Enclosure Category : IP-64
Max. Operation Speed : 120 cycles/minute
Tightening Torque of Terminal Screw : 0.8 Nm(Max)
Applicable wire : Conductor size : 0.75 - 1.25 mm2 Outer Dia of Cable : 6-9
