Open type head box made out of the S.S. 304 plate suitable for low and medium speed paper machine up to 350 m/min.
Tapered flow header for uniform velocity conditions.
Uniform cross direction basic weight profile.
Two holly rolls maintain defloculation or fiber dispersion.
Easy accessibility of inside area for cleaning & easy of operation.
Stability of flow.
Minimum Maintenance.
Foam killing shower also provided.

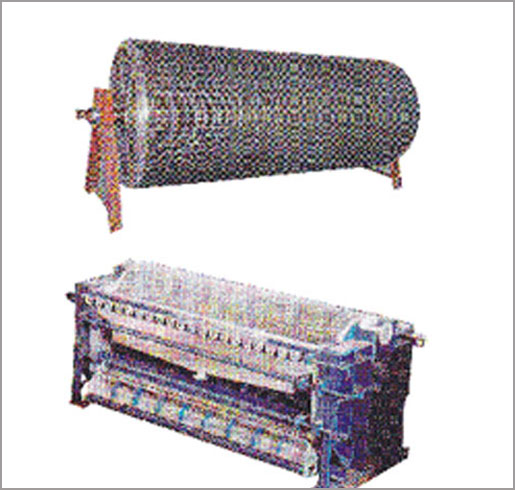

Excellent former assembly for good formation and paper pick up of 32 to 120 gsm.
Mould & vat completely made out of S.S. material.
Suitable for machine up to 120mt. speed.
Minimum profile variation.
Tapered manifold for uniform velocity condition and evener roll for good defloculation.
Zero fibers loss due to rubber sealing.

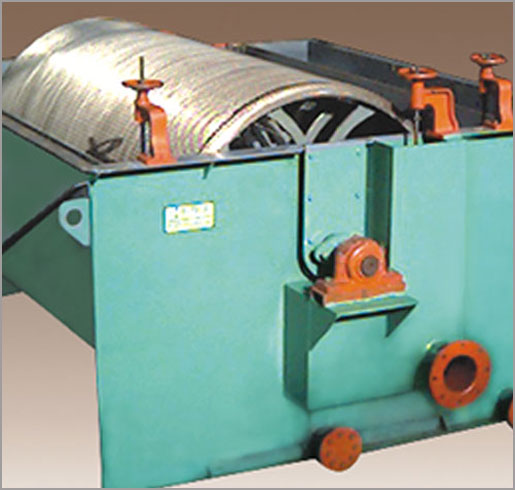

DRY VAT TYPE

It is the heart of a paper/board machine.
It controls stick flow, pickup on the felt part and is responsible for good single layer/multi layer formation & substance profile across the full web.
Designed according to Production requirements.
M.O.C of Cylinder Mould.
We also supply phosphorous/S.S./ Bronze spiders with bronze strips with 10 gauge S.S. wire wounding on request.
Tapered flow header for uniform velocity condition. Design type of Vat.
Counter Flow Vat- This type used for mainly in Board M/C & Slow Speed.
Uniflow Flow Vat- This type used for good formation of Craft board & duplex board.

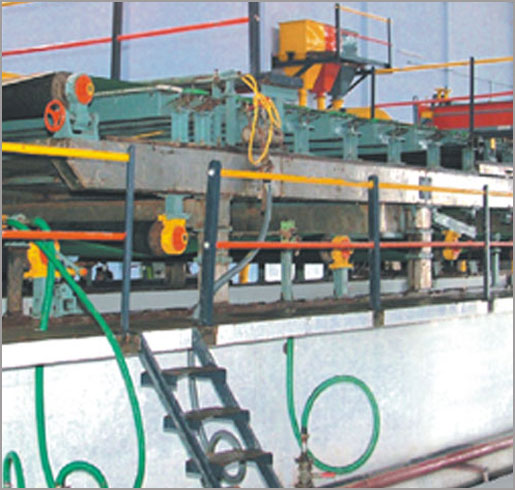

Designed for formation & drainage capacity optimization.
Wire Section is available either with cantilever type or run out type wire changing arrangement.
We also provide Top wire arrangements for multi layer & High gsm.
Consist of lot of drainage elements such as forming board, hydro foils, high Vacuum box to improve sheet formation.
All parts in contact with water or stock are made of S.S. and corrosion resistant materials.
Complete S.S. cladding structure is also available.

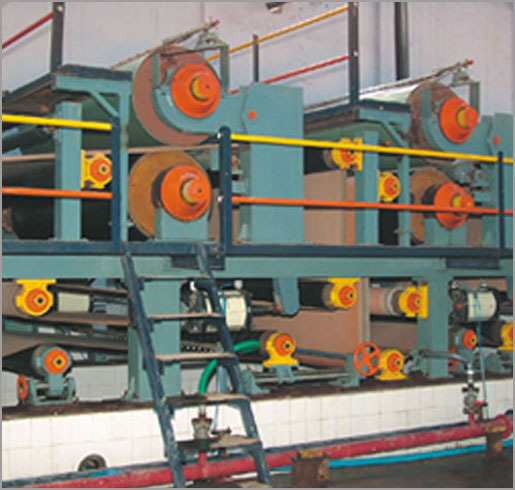

The highest possible dryness should be reached with least possible number of nips.
Pressing must not impact paper quality.
The press section should compact, Simple and rigid Structure.
Hydraulic & Pneumatically loaded press rolls with heavy duty framing.
Press section is designed for 180kg. - liner cm. load for efficient water removal.

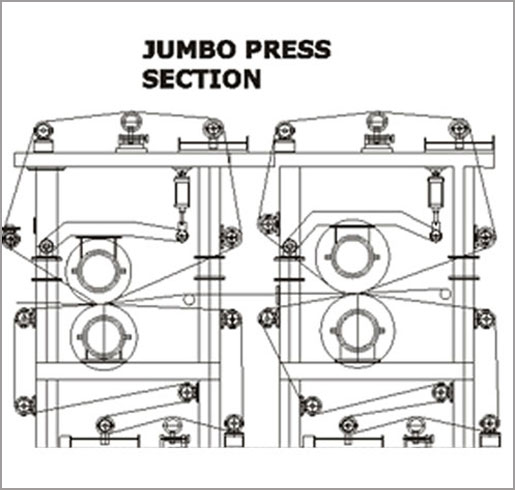

It is double felted first nip for two sided dewatering used for higher efficiency of press.
Heavy duty press section with roll dia 430 to 1200 mm.
For high speed application grooved or blind-drilled roll is available.
Large diameter presses at high press load combine optimum performance with low investment, operation and maintenance cost.
Production increase, reduced steam consumption and efficiency increases in case of rebuilt of an exciting machine.

• Most suitable for kraft, liner, writing & printing or speciality paper because of
• Efficient water removal.
• High dryness achieved upto 50% in recycled furnish after this press in comparison to conventional press upto 45%.
• Production increase by18%.
• Improve the physical characteristic of paper.
• Improve stiffness & breaking length of paper.
• Less energy consumption (Power & Fuel) pertone of paper.

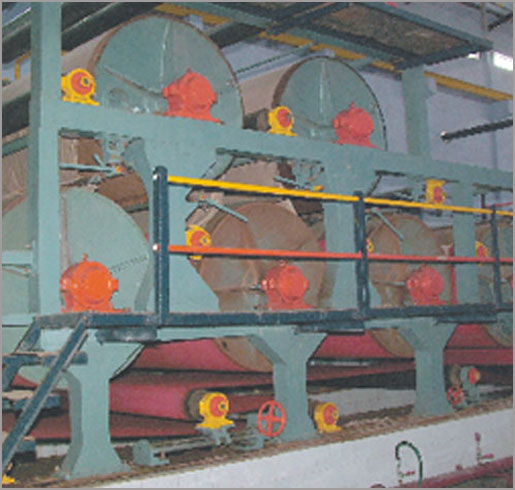

Dryer Section designed to optimize the drying rate, reducing the investment cost.
M.S. Fabricated dryers up to 2.0 mt. Dia and 25 mm to 36 mm shell thickness and the width up to 5 mt.
Dryer is suitable for 4 to 5 kg/ cm2 operating pressure.
The dryers are mirror finished and the width up to 5 mt.
Our dryer system components are designed to provide best drying efficiency and uniform drying control.
Heavy duty cast iron framing is also available its excellent for vibration dampening.
The drying cylinder can be provided with stationary syphons or inside bucket system for proper removal of condensate. (Optionally).
For high speed application above 200 m/min rope feeding arrangement is provided.

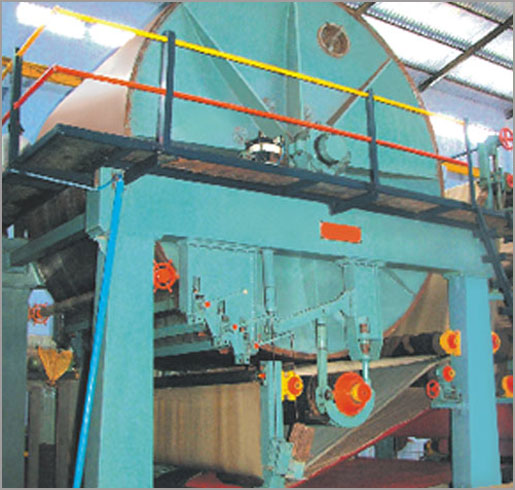

M.S. Fabricated M.G. Cylinder upto 16 ft dia & 4.2 mt. Width.
M.G. Cylinder are made from ultra O.K. Plate.
M.G. Cylinder suitable for steam pressure up to 175 psi.
M.G. Cylinder are mirror finished.
M.G. Cylinder can be provided with scooping system for removal of condensate efficiently.
For vibration free operation we will provide, Heavy duty M.S. Fabricated frame.
We also provide M.G. Cylinders with S.S. Coating surface. (Optional).
We also provide M.G. Hood for improves production & saves condensation of vapor. Hood made from M.S./S.S. Fabricated (optional).
M.G. Spur gear & pinion also provided in M.S. Fabricated/C.I./polypic material with hobbing cut teeth so it gives noise free operation.

M.S. Fabricated drum & C.I. Framing.

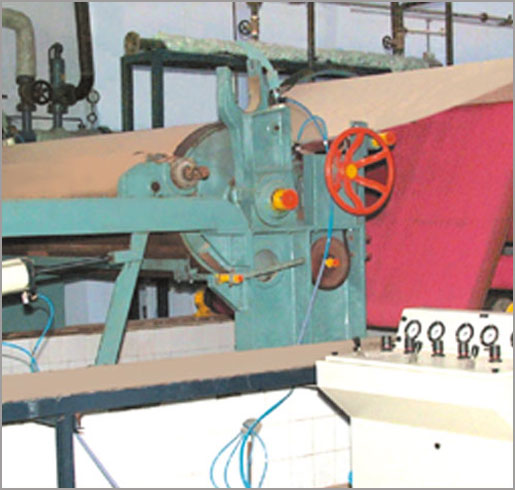

Reeler is designed on the principle of circumferential winding.
We will provided auxiliary (primary) arms is pneumatically operated for loading & mechanical arrangements for shifting of reel.
Working (secondary) arms is loaded for pneumatically.
Before the reeler camber pipe or camber roll are installed for creasing free reeling.
Having pneumatic loading arrangements which ensures tight reeling and automatic reeling change over system which reduces the loss during the change over.
Maximum paper real Dia 2000 mm.

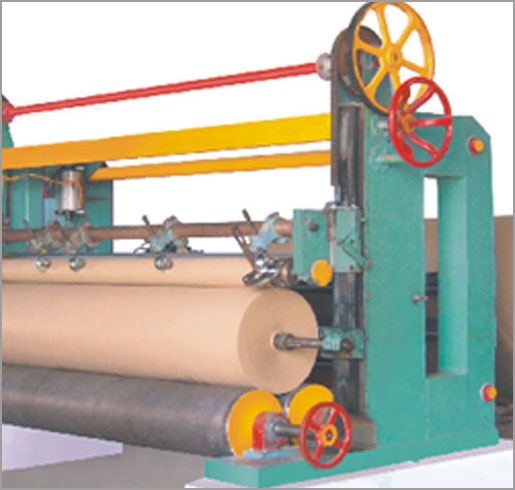

The Rewinders are designed for precision slitting and rewinding job having high speed winding drums, maximum operating speed is up to 700 MPM.
M.S. Fabricated body with C.I. Slides & complete slitting arrangement. Optionally we provide Heavy Duty complete C.I. Body.
Pneumatically operated Rider Roll with complete slitting arrangement removing of wound Roll is done by pneumatically operated pusher Roll.
Uniforms tight winding of Rolls.
Clean & smooth surface of Roll.
Easy separation of slit Roll. (Without using wedges)
Easy and quick feeding of paper.
Rewinder is driven by D.C. / A.C. Variable speed drive.
For slitting arrangements we are provided pneumatically or Manually loaded knives
