FEATURES

Low temperature and high temperature resistance (-180˚C ~ +260˚C)
Corrosion resistance, weather resistance
High lubricity, no adhesion
Non-toxic
Non-flamable
Acid and alkali resistance
(Except molten alkali metals)
Antioxidant

CATEGORIES

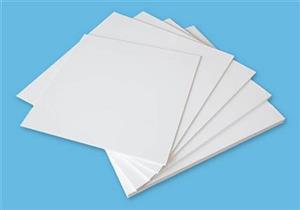

Molded sheet
Produced by compression molding processing, molding, sintering, cooling of suspension PTFE resin into pure sheets and filled sheets (color, copper powder, glass fiber, graphite, carbon fiber, black, carbon powder, polyphenylene, anti- static plates, etc)
Skived rolled sheet/skived tape
Produced by skiving granular resin
Skived sheet
Produced by cutting and flatting skived rolled sheet
Sodium processing sheet
Produced by sodium treatment of sheet surface according to customers size requirements. Dividing into single-sided and double-sided sodium treatment.

FEATURES

Low temperature and high temperature resistance (-180˚C ~ +260˚C)
Corrosion resistance, weather resistance
High lubricity, no adhesion
Non-toxic
Non-flamable
Acid and alkali resistance
(Except molten alkali metals)
Antioxidant

CATEGORIES
Molded sheet
Produced by compression molding into pure rod and filled rod.(color,copper powder, glass fiber, graphite, carbon fiber, carbon powder, polyphenylene, etc)
Extruded rod
Produced by plunger extrusion processing of dispersion polymerization of PTFE resins.
Pasted rod
Produced by paste push processing of suspension PTFE resins ​​into pure rods, gra

APPLICATIONS

Battery electrode, electric products
Lubricate bearings, piston rings, oil seals, seals and other machinery
Filling different materials to enhance performance of the desired area according to requirements of customers

APPLICATIONS

Welded chemical containers, tanks
Machinery, construction, transportation bridges sliders, rail release materials
The production of sealing materials
Filling different materials to enhance performance of the desired area according to customer requirements

FEATURES

Low temperature and high temperature resistance (-180˚C ~ +260˚C)
Corrosion resistance, weather resistance
High lubricity, no adhesion
Non-toxic
Non-flamable
Acid and alkali resistance
(Except molten alkali metals)
Antioxidant

CATEGORIES
PTFE skived film is teflon resin after molding and skiving to non- directional films and non-directional films is rolled to semi- directional and directional film.
SFM-1(directional)
Capacitor dielectric, etc
SFM-2 semi-directional、 (non-directional)
Wire insulation
SFM-3(directional、 non-directional)
Electrical instrumentation insulation and sealing gasket, etc

APPLICATIONS

Wire, cable, battery electrodes and other electronic aspects
Gasket seals and lubricating materials, as well as electrical insulation used at various frequencies

APPLICATIONS
EPTFE SHEET

Applicable to the biological pharmacy, food, chemical industry, oil refining, military, ships, aerospace, mechanical seal, high corrosive environment. Heat exchanger, FRP, compressed frame flange, steam container flange, liquid and gas system, water system
Applicable to the reactor, steam generators and various shaped mouth lost cans, buckets sealser system

APPLICATIONS
EPTFE SHEET

Applicable to the biological pharmacy, food, chemical industry, oil refining, military, ships, aerospace, mechanical seal, high corrosive environment. Heat exchanger, FRP, compressed frame flange, steam container flange, liquid and gas system, water system
Applicable to the reactor, steam generators and various shaped mouth lost cans, buckets sealser system

FEATURES

Excellent flexibility, resilience crunch, creep resistance
High temperature resistance
Excellent corrosion resistance, aging resistance
Self-lubricating

CATEGORIES
PTFE (Teflon) Elastic tape

Produced by molding and mechanical processing of suspension PTFE resin
Pure gasket

100% Pure PTFE to make gasket

Filled gasket

Fill different materials according to customers requirement, such as carbon powder, polystyrene, glass fiber, graphite, copper powder, etc

APPLICATIONS

It has effect of sealing, conditioning oil, thermal (heat), orientation (support), which is widely used in a variety of power machinery
