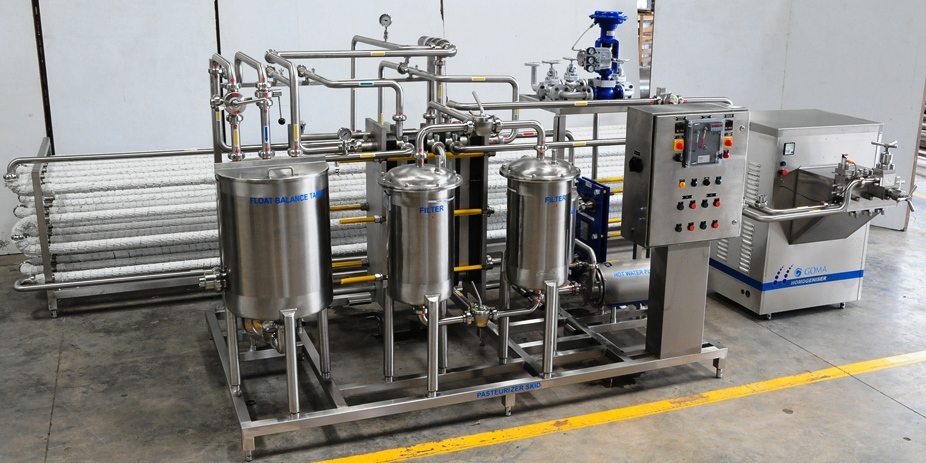

These consist of corrugated plates of SS 316 CLIP-ON type imported from Germany, mounted between fixed and movable pressure plates. These are positioned by upper and lower carrying bars and compressed by several tightening bolts. The frame is M.S. cladded with SS 304. PHE gasket material selection will be done on the operation. These Plate type Heat Exchangers can be used for liquid / semi-liquid kind of products with low and medium viscosity and temperature.

PHE Pasteuriser consists of following accessories:

• Feed Balance Tank
• Feed Pump
• Automatic Valves & Fittings
• Remote Control Panel & Interconnecting Pipeline
• Hot Water Mixing System

Goma Engineering Private Limited is a pioneer & renowned leader in manufacturing indigenous homogenizers in India. We have exported & supplied our 1500 homogenizers ranging from 20 LPH to 20,000 LPH for various applications namely Dairy, Ice-cream, Flavors, Food & Beverage, and Chemical, Pharmaceuticals, Cosmetics and Textile industries in India & across the globe to Australia, Switzerland, France, UAE, Oman, Iran, Tanzania, Nigeria, Algeria, Mauritania, Ethiopia, Sudan, Tashkent, Sri Lanka, Bangladesh, Nepal, Thailand, Malaysia etc.

With the backing of an extensive experience of more than three decades & after meticulous R&D, Goma has now launched New Generation Homogenizers with advanced technology & higher pressures up to 2000 bar.

Product Features

• Quin Triplex Plunger Pump or High Pressure Triplex. Rugged & Robust in construction.
• Crankcase with an openable top for easy maintenance.
• Two Stage Homogenizing Head. (Manual / Hydraulic operated)
• Cooling mechanism & safety interlocking.
• Acid & Corrosion resistant stainless steel used to make all contact parts.
• Imported Stellite, Tungsten Carbide or Alloy Steel materials are used to make Valve Assembly.
• Plungers made of special hardened steel with super finished surface
• Sanitary Design for CIP Cleaning.
• Imported Digital type Pressure Gauge with safety interlocking.
• Plungers made of special hardened steel with smooth finished surface.
• Integrated Sanitary Design for Cleaning In Place.
• Imported Digital type Pressure Gauge with safety interlocking mechanism
• Plunger seals consist of single “V” ring packing, Chevron packing made of special food grade material.

Goma Design, Manufacture & Supply self-contained Continuous Ice Cream Freezer at -5 °C for Ice-Cream is suitable for 130% overrun with mix inlet at +4 °C.

• Frame and covering panel in SS 304
• High conductivity metal hard chrome plated cylinder
• Hollow two piece construction dasher
• Hardness controller with digital ammeter
• Hour meter, speed variable device for mix pump with indicator, hour meter, SS Diaphragm sanitary design pressure gauge
• Suction and Discharge pressure gauge for refrigeration kit
• Hot gas supply for freezing cylinder
• Interlock and safeties for single phase, overload, low / high refrigerant pressure etc
• BITZER / FRESCOLD make refrigeration compressor with water cooled condenser of 404 A
• Pump drive arrangement– A.C. Drive

Goma manufactures S.S. Storage Tank of capacity 50 – 20,000 Ltrs. & S.S. Silos of Capacity 20,000 – 1,00,000 Ltrs. capacity.

The tank designing is as per NDDB / Food standards. We also manufacture Bulk milk cooler capacity 500 to 5,000 Ltrs.

Goma Full fledge fabrication factory at Pune is fully equipped with modern machines for quality production of tanks / silos.

We ensure high-grade finish up to 300 grits.

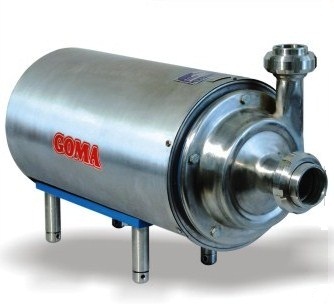

We are manufacturing SS Sanitary design pump with wide range of applications. Manufactured as per prevailing standards for the Food and Milk ProcessingIndustry. It is Compact in size and Optimal in performance. All contact parts are of SS 316 material as well as Noise & Vibration-free operation. Specific applications for Milk, Fruit juices, Ready to serve beverages, Oils, Emulsions, Paints, Fine Chemicals, Essences, Flavours & many more..

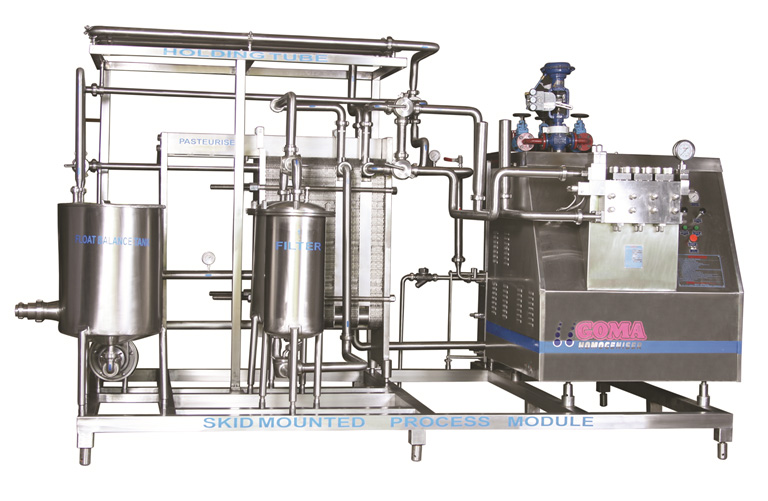

Goma manufactures skid mounted process modules for Dairy, Ice-cream & Beverage applications.

Process Module Consist of:

• High Pressure Homogeniser
• Pasteuriser (PHE / Tubular)
• Float Balance Tank
• SS Sanitary Pump
• Inline Filter / Interconnecting pipeline
• Remote control panel
• Instrumentation & Automation

Salient Features:

• Ready to start
• Factory tested
• Easy installation
• Space saving
• Compact design

Aseptic Sterilizer for Brick filling

Aseptic Sterilizer is used for high viscous products like Fruit Pulp / RTS. These sterilizer consist of multi tube-in-tube type, where the product passes through one tube and heating and cooling media passes through other tube.

The heating of juice will be done with hot water. Trim cooling will be carried out by return warm water from heating section. Return cooling of the product will be done with tower water to cool the product. Further Cooling of product will be carried out up to final product filling temperature 25°C with chilled water.

Aseptic Sterilizer consists of following accessories:

• Feed Balance Tank
• Feed Pump
• Automatic Valves & Fittings
• Remote Control Panel & Interconnecting Pipeline
• Hot Water Mixing System
• Automation & Instrumentation

Goma manufactures complete plant for Cheese and Paneer manufacturing from 0.2 TPD to 5 TPD.

Cheese/ Paneer plant consists of following equipment:

Paneer Plant

• Paneer Vat
• Paneer Hoops(Ss 304)
• Pneumatically Operated Paneer Press
• SS Working/Cutting Table with Cutting Knives
• SS Trays with Trolley Type Racks for Diced Cubes
• SS Showel of Suitable Size
• Paneer Cooling Tank with External Heat Exchanger
• Paneer Cutting Machine
• Vacuum Sealing Machine
• Remote Control Panel

Cheese Plant

• Cheese Vat
• Cheese Knife
• Cheese Hoops
• Cheese Press (Pneumatically operated)
• Cheese Shredding Machine
• Vacuum Sealing Machine
• Cheese Ripening Room

The HTST Pasteurization Plant is used for pasteurization of milk and subsequently is cooled to the required culturing temperature for processing of Yoghurt / Curd. Goma manufactures Yoghurt / curd milk plant semi-automatic/ automatic with suitable holding time for good quality Yoghurt / curd.
