Welcome to G M ENGINEERING P.LTD.
Ball Valve 3Pc Design Screwed End
| Application | Isolation |
| Features / Benefit | Full Bore, Reduce Bore Blow Out Proof Stem Low Torque, Extended Stem, Antistatic Device Floating Ball Mounting Pad on request |
| Ansi Class / Rating | 150# , 300#, 600#, 800# |
| Design Standard | BS EN ISO 17292 |
| Testing Standard | API 598, ISO 5208 |
| F to F Standard | Manufacturing standard |
| Size | 15 mm to 50 mm |
| Materials | Body : A105, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seat : PTFE , reinforced PTFE, GFT, CFT, etc |
| Ends | Screwed End, Socket Weld End |
| Operation | Mannual, Pneumatic, Electric |
Floating Ball Valve
| Application | Isolation |
| Features / Benefit | Full Bore, Reduce Bore Blow Out Proof Stem Low Torque, Antistatic Device, Spring Loaded Seat, Extended Stem, Double Block & Bleed Floating Ball Fire Safe Test Requirement as per API 607 & API 6FA |
| Ansi Class / Rating | 150#, 300#, 600# |
| Design Standard | BS EN ISO 17292 , API 6D |
| Testing Standard | API 598, ISO 5208 |
| F to F Standard | ASME B16.10 |
| Size | 15 mm to 600 mm |
| Materials | Body : A105, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seat : PTFE , reinforced PTFE, GFT, CFT, Viton, Devlon, Peek, etc |
| Ends | Flanged End, Butt Weld End |
| Operation | Mannual, Pneumatic, Electric |
Forged Trunnion Mounted Ball Valve
| Application | Isolation |
| Features / Benefit | Full Bore, Reduce Bore Blow Out Proof Stem Low Torque, Antistatic Device Spring Loaded Seat, Extended Stem Double Block & Bleed, Drain & Vent, Sealant Injection Trunnion Mounted Design Stem Fire Safe Test Requirement as per API 607 & API 6FA |
| Ansi Class / Rating | 150#, 300#, 600# |
| Design Standard | BS EN ISO 17292 , API 6D |
| Testing Standard | API 598, ISO 5208 |
| F to F standard | ASME B16.10 |
| Size | 15 mm to 750 mm |
| Materials | Body : A105, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seat : PTFE , reinforced PTFE, GFT, CFT, Viton, Devlon, Peek, etc |
| Ends | Flanged End, Butt Weld End |
| Operation | Mannual, Pneumatic, Electric |
Gate Valves
| Application | Isolation |
| Features / Benefit | OS & Y Constructione Flexible Wedge Design (Choice of Solid or Split Wedge Available) Full Port Design Renewable Seat Rings & Integral Seat Rings Burnish Finish Stem for Low Operating Torque Pressure Seal Bonnet or Welded Bonnet on request for High Pressure |
| Ansi Class / Rating | 150#, 300#, 600# |
| Design Standard | API 600, BS 1414 |
| Testing Standard | API 598, ISO 5208 |
| F to F Standard | ASME B16.10 |
| Size | 15 mm to 600 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Trim : 13 % Cr, Stellite etc |
| Ends | Flanged End, Butt Weld End |
| Operation | Mannual, Pneumatic, Electric |
Conduit Gate Valve
| Application | Isolation |
| Features / Benefit | OS & Y Constructione Flexible Wedge Design (Choice of Solid or Split Wedge Available) Full Port Design Renewable Seat Rings Burnish Finish Stem for Low Operating Torque Pressure Seal Bonnet or Welded Bonnet on request for High Pressure |
| Ansi Class / Rating | 150#, 300#, 600# |
| Design Standard | API 6D |
| Testing Standard | API 598, |
| F to F Standard | ASME B16.10 |
| Size | 15 mm to 600 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Trim : 13 % Cr, Stellite etc |
| Ends | Flanged End, Butt Weld End |
| Operation | Mannual, Pneumatic, Electric |
Knife Edge Gate Valve
| Application | Isolation |
| Features / Benefit | OS & Y Construction Renewable Seat Rings Burnish Finish Stem for Low Operating Torque |
| Ansi Class / Rating | 150#/PN 10 |
| Design Standard | MSS SP 81 |
| Testing Standard | ISO 5208 |
| F to F Standard | ASME B16.10 |
| Size | 50 MM TO 600 MM |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 etc Gate : CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 etc |
| Ends | Wafer Lugged End |
| Operation | Mannual, Pneumatic, Electric |
Globe Valve
| Application | Throttling |
| Features / Benefit | OS & Y Construction Renewable Seat Rings, Integral Seat Rings, Pressure Seal Bonnet or Welded Bonnet on request for High Pressure |
| Ansi Class / Rating | 150#, 300#, 600# |
| Design Standard | BS 1873 |
| Testing Standard | API 598, ISO 5208 |
| F to F Standard | ASME B16.10 |
| Size | 15 mm to 600 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Trim : 13 % Cr, Stellite etc |
| Ends | Flanged End, Butt Weld End |
| Operation | Mannual, Pneumatic, Electric |

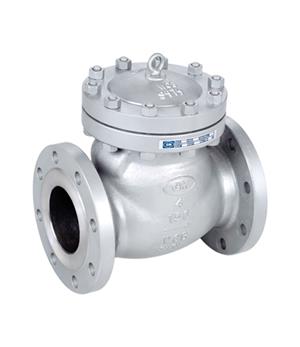

Swing Check Valve
| Application | Non Return Flow |
| Features / Benefit | Swing Type Design Renewable Seat Rings, Integral Seat Rings |
| Ansi Class / Rating | 150#, 300#, 600# |
| Design Standard | BS 1868, API 6D |
| Testing Standard | API 598, ISO 5208 |
| F to F Standard | ASME B16.10 |
| Size | 50 mm to 600 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Trim : 13 % Cr, Stellite etc |
| Ends | Flanged End, Butt Weld End |
| Operation | Auto |

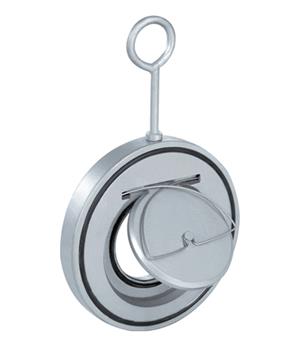

Wafer Check Valve
| Application | Non Return Flow |
| Features / Benefit | Swing Type Design Lifting Bolt Provided for easy installation |
| Ansi Class / Rating | 150#, 300# |
| Design Standard | API 6D |
| Testing Standard | API 598 |
| Size | 50 mm to 600 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seat : EPDM, Nitrile, PTFE, Vitonetc |
| Ends | Wafer End |
| Operation | Auto |

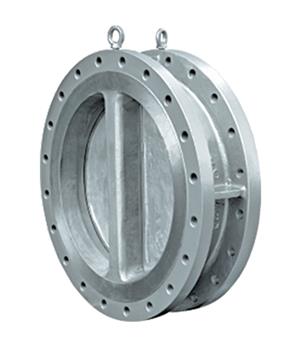

Dual Plate Check Valve
| Application | Non Return Flow |
| Features / Benefit | Heavy duty Spring providing intantaneous response to system change PTFE spacers designed to maintain plate alignment Lifting Bolt Provided for easy installation |
| Ansi Class / Rating | 150#, 300# |
| Design Standard | API 6D |
| Testing Standard | API 598 |
| Size | 50 mm to 600 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seat : EPDM, Nitrile, PTFE etc |
| Ends | Flange End , Wafer End |
| Operation | Auto |
Forged Gate Valve
| Application | Isolation |
| Features / Benefit | OS & Y Construction Renewable Seat Rings & Integral Seat Rings Welded Bonnet on request for High Pressure |
| Ansi Class / Rating | 800#, 1500# , 2500# |
| Design Standard | API 602 |
| Testing Standard | API 598 |
| Size | 15 mm to 50 mm |
| Materials | Body : A105, F11, F22, F51, LF2, F304, F304L, F316, F316L Trim : 13 % Cr, Stellite etc |
| Ends | Screwed End, Socket Weld End, Butt Weld End |
| Operation | Mannual, Electric |
Forged Globe Valve
| Application | Throttling |
| Features / Benefit | OS & Y Construction Renewable Seat Rings & Integral Seat Rings Welded Bonnet on request for High Pressure |
| Ansi Class / Rating | 800#, 1500# , 2500# |
| Design Standard | BS 5352 |
| Testing Standard | ISO 5208, API 598 |
| Size | 15 mm to 50 mm |
| Materials | Body : A105, F11, F22, F51, LF2, F304, F304L, F316, F316L Trim : 13 % Cr, Stellite etc |
| Ends | Screwed End, Socket Weld End, Butt Weld End |
| Operation | Mannual, Electric |

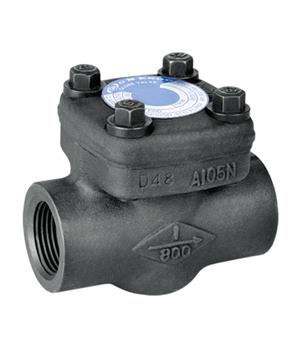

Forged Check Valve
| Application | Non Return Flow |
| Features / Benefit | Lift Type Design Renewable Seat Rings & Integral Seat Rings |
| Ansi Class / Rating | 800#, 1500# , 2500# |
| Design Standard | BS 5352 |
| Testing Standard | ISO 5208, API 598 |
| Size | 15 mm to 50 mm |
| Materials | Body : A105, F11, F22, F51, LF2, F304, F304L, F316, F316L Trim : 13 % Cr, Stellite etc |
| Ends | Screwed End, Socket Weld End, Butt Weld End |
| Operation | Auto |
Lined Ball Valve
| Application | Isolation |
| Features / Benefit | 100 % dielectrically spark tested suitable for vacuum service low maintenance cost absolute resistance to atmosphere & wear |
| Ansi Class / Rating | 150# |
| Design Standard | ISO 17292 |
| Testing Standard | API 598 |
| F to F Standard | ASME B16.10 |
| Size | 15 mm to 200 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Ball , Stem : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Linning : PFA , FEP |
| Ends | Flanged End |
| Operation | Mannual, Pneumatic, Electric |

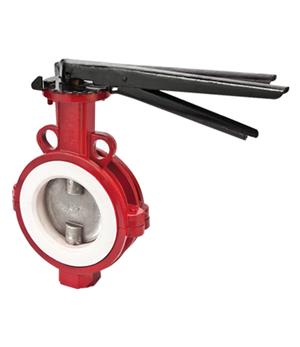

Lined Butterfly Valve
| Application | Isolation |
| Features / Benefit | 100 % dielectrically spark tested suitable for vacuum service low maintenance cost absolute resistance to atmosphere & wear |
| Ansi Class / Rating | 150# |
| Design Standard | API 609 Cat A |
| Testing Standard | API 598 |
| F to F Standard | API 609 Cat A |
| Size | 50 mm to 400 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc , Stem : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Linning : PFA , FEP |
| Ends | Wafer End |
| Operation | Mannual, Pneumatic, Electric |

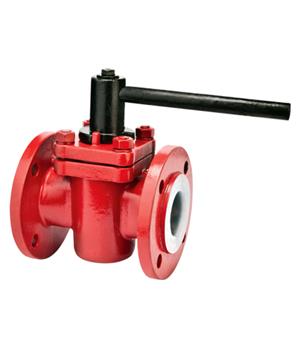

Lined Plug Valve
| Application | Isolation |
| Features / Benefit | 100 % dielectrically spark tested suitable for vacuum service low maintenance cost absolute resistance to atmosphere & wear |
| Ansi Class / Rating | 150# |
| Design Standard | API 599 |
| Testing Standard | API 598 |
| F to F Standard | ASME B 16.10 |
| Size | 15 mm to 300 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Plug , Stem : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Linning : PFA , FEP |
| Ends | Flanged End |
| Operation | Mannual, Pneumatic, Electric |
Lined Ball Check Valve
| Application | Non Return Flow |
| Features / Benefit | 100 % dielectrically spark tested suitable for vacuum service low maintenance cost absolute resistance to atmosphere & wear |
| Ansi Class / Rating | 150# |
| Design Standard | Mfg Standard |
| Testing Standard | API 598, BS 6755 Part II |
| Size | 15 mm to 100 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Linning : PFA , FEP |
| Ends | Flange End |
| Operation | Auto |

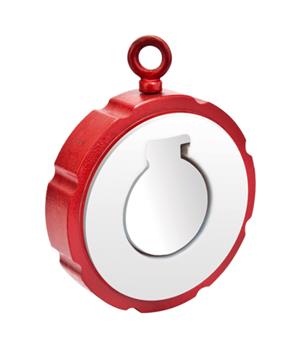

Lined Wafer Check Valve
| Application | Non Return Flow |
| Features / Benefit | 100 % dielectrically spark tested suitable for vacuum service low maintenance cost absolute resistance to atmosphere & wear |
| Ansi Class / Rating | 150# |
| Design Standard | MFG Standard |
| Testing Standard | API 598 |
| F to F Standard | BS EN 558 (series 20) |
| Size | 80 mm to 300 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Linning : PFA , FEP |
| Ends | Wafer End |
| Operation | Auto |
Jacketed Plug Valve
| Application | Isolation |
| Features / Benefit | Full Jacketed Design, Multiple Connection for proper jacket drainage, Specially designed for circulation of hot or coldliquid or gas Bi Directional Flow Inline PTFE Sleeve surrounds the Plug Unique Body & Plug Design for Low Torque Operation Self-Sealing Design suitable for vacuum service, low maintenance cost cavity free, |
| Ansi Class / Rating | 150#, 300# |
| Design Standard | API 599 |
| Testing Standard | API 598, 100 % dielectrically spark tested |
| F to F Standard | ASME B16.10 |
| Size | 15 mm to 300 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB etc Plug , Stem : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB etc Sleeve : PTFE Jacket : MS, Stainless Steel |
| Ends | Flanged End, Socket Weld End |
| Operation | Manual, Pneumatic, Electric |
Teflon Sleeved Plug Valve
| Application | Isolation |
| Features / Benefit | Bi Directional Flow Inline PTFE Sleeve surrounds the Plug Unique Body & Plug Design for Low Torque Operation Self-Sealing Design suitable for vacuum service, low maintenance cost cavity free, |
| Ansi Class / Rating | 150#, 300# |
| Design Standard | API 599 |
| Testing Standard | API 598, 100 % dielectrically spark tested |
| Size | 15 mm to 300 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Plug : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Sleeve : PTFE |
| Ends | Flanged End, Socket Weld End |
| Operation | Mannual, Pneumatic, Electric |
P. T. F. E. Sleeved Butterfly Valve
| Application | Isolation |
| Features / Benefit | Semi Lug Type Design Top Mounting Pad as per ISO 5211 Unique Stem retention design to provide blow out proof stem & easy assembly & disassembly of valves Heavy Duty square grooved seat design with moulded O ring seals to act as flange gasket Self energizing seating design Through flow disc design for large size Butterfly Valves |
| Ansi Class / Rating | 150# Class; |
| Design Standard | API 609 CAT A |
| Testing Standard | API 598 |
| F to F Standard | API 609 CAT A |
| Size | 50 mm to 400 mm |
| Materials | Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seat : PTFE |
| Ends | Wafer End |
| Operation | Mannual, Pneumatic, Electric |
Wafer End Butterfly Valve
| Application | Isolation |
| Features / Benefit | Centric, Single Ecentric & Double Eccentric Design Full Lug & Semi Lug Type Design Top Mounting Pad as per ISO 5211 Unique Stem retention design to provide blow out proof stem & easy assembly & disassembly of valves Heavy Duty square grooved seat design with moulded O ring seals to act as flange gasket Self energizing seating design Through flow disc design for large size Butterfly Valves Different Lining and Metallurgy to suit a wide variety of applications including sea water & water desalination plants |
| Ansi Class / Rating | PN 10, PN 16, PN 20 |
| Design Standard | AWWA C 504, API 609 CAT A |
| Testing Standard | API 598 |
| F to F Standard | AWWA C 504, API 609 CAT A |
| Size | 50 mm to 1800 mm |
| Materials | Body : Cast Iron, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : Ductile Iron, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seals : EPDM, Nitrile, Viton, Metal Seated etc |
| Ends | Wafer End |
| Operation | Mannual, Pneumatic, Electric |
