Highest quality standards are achieved through the implementations of latest technology, decades of experience and everlasting moral values , which have helped us to retain our customers as well as multiply them.
Description / Specification of Zero Holdup Filter Press
We are involved in offering a wide range of Zero Holdup Filter Press to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Zero Holdup Filter Press. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
|
|
|
|
|
Features
* They are mechanical or pneumatically operated machines.
* They have a metal body, especially stainless steel body.
* Easy to preserve and clean.
* Built with bottom-up fill assembly and adjustable volume control.
* The particular machinery allows easy of reassembling and cleaning.
* Filling speed fluctuates as per volume to be filled.
* Different materials that can be filled: Oil, Paints, Ink, Adhesive, Milk, Chemicals, Lubricants, Liquid medicines etc.
|
|
|
Special Features :

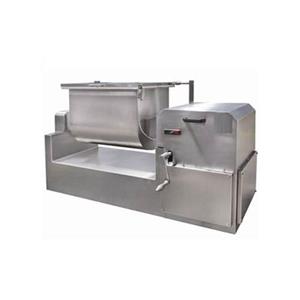

Range of Mass Mixers models to suit working volume 50,100 & 200 Kgs. At bulk density of 0.50 gms/cc.
All contact parts of mass Mixers are made out of S.S.304 quality material.(SS316 provided on demand on extra cost)
Compact design requires comparatively smaller floor space.
Single stirrer with single speed for dry & wet mixing.
As stirrer's sealings comes in contact with product, there may be any black particle contamination problem, after sealing bush got wear & tear.
All non contact parts in the mass mixers (general structure) are made out of mild steel and claded with SS304 or crome plated or made out of SS304 in GMP Model. Contact parts are polished to the mirror finished and non contact parts are polished to the matt finished in GMP Model. All safety guards & covers made out of SS304 material in GMP model & made out of mild steel & painted in standard model.
General structure & all non contact parts are made out of Mild Steel & same will painted in Standard Model.
All moving parts are enclosed with safety guards.
Thrust bearings are provided to carry out rigid thrust load.
Easy for cleaning & operating.
Simply designed SS304 dust cover provided with one port for material charging & inspection.
Interlocking system with top dust cover, to avoid accident, during process. The container tilting system provided for easy unloading of material and easy cleaning.
Specially design all moving parts provided with provision of easy lubrication.
Optional Features of Mass Mixers:
SS316 product contact parts instead of SS304.
Variable speed drive or double speed of stirrer provided on extra cost , if required.
Flameproof model.
Application : Mass Mixers are Ideal for mixing of Pharmaceutical powders, chemicals, food and confectioneries etc.
APPLICATION:

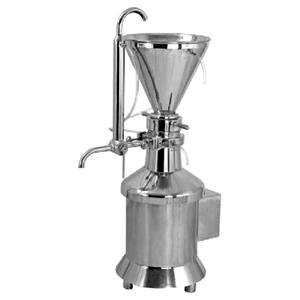

Product is feed to the operating area of a rotor, having a speed of 2800 R.P.M by specially designed feed device. The product is processed by high sheer, pressure and friction between the stator and rotor, the angular gap becomes narrower towards the discharges section. This processed product continuously leaves the mill through the drain pipe, if required, it can be re-circulated.
SALIENT FEATURES
All contact parts can be easily and quickly dismantled and cleaned.
Machine is designed for continuous operation.
Cylindrical screen for higher output.
Flame proof electrical can be provided at extra cost.
Description / Specification of Automatic Desiccant Inserter
We are involved in offering a wide range of Automatic Desiccant Inserter to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Automatic Desiccant Inserter. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
Salient Features
In compliance with cGMP guidelines.
Also available with Standard Painted Model & for small scale laboratory purpose.
Conventional Coating Pan with very sturdy M.S structure made of angles & channels which are covered from all the sides by covers & doors.
The Coating Pan drive is through standard make heavy duty worm reduction gear box & electrical motor by means of belt and pulley drive fitted on a rigid structure. Coating Pan Speed can be changed through variable speed pulley mounted on the shaft of electric motor (AC Variable Frequency Drive – Optional with extra cost).
Coating Pan made of SS 304 / SS 316 or SS 316L material and mirror polished from inside & outside.
Baffels either welded or detachable (welded are the standard supply if not specified) provided inside the pan considering production requirements.
Easy mounting arrangement considering changeover of coating / polishing pan.
Separate mobile Hot Air Blower System is provided for easy operation.
Digital Temperature Controller provided with necessary temperature control device with interlocking for heater function.
Flame proof electrical can be provided with extra cost
Our expertise lies in offering a wide range of Turntable Machine Systems. These are used for transferring movement of varied type of jars, vials, bottles on any powder filling or liquid filling line. Turntable Machines offered by us are used with any machine for collection or feeding of products and are also used to change the total line direction for “L” shape or “U” shape movement of line. Our clients can avail these Turntable Machines in varied diameter of 600, 750, 900 or 1200 mm as per clients' requirement.
Turntable Machine frame is manufactured using M.S. frame structure with S.S. covering/ enclosure as well as with aluminum top plate having stainless steel cladding. These are supplied with standard variable speed pulley drive or A.C. variable frequency drive system for smoother start and stop operation for unstable products. Turntable Machine is manufactured using stainless steel frame and also with fully stainless steel top plate as per demands.
|
Construction :
Tray Dryer is fabricated out of rigid angle iron frame with double walled panels insulated with best quality compressed fibre glass and with a rigid door fitted with strong hings and best choosen locking arrangement. A control panel is fixed in front of the oven to facilitate the operation easily. It has a large working space and is available, manufacturing from mild steel & in good finishing outside with synthetic enamel colour & inside painted with heat resistent paint to resist temperature up to 300 degree, in Standard Model. It is also manufacture completely from SS304 or SS316 ( As per customer requirement ) in GMP Model & polished to the mirror finish from inside & matt finish from outside.
Description :
The Drying ovens are normally available with choice of heating mode, as electrically heated / steam heated & thermic fluid heated..
In electrically heated model, digital temperature controller provided with digital timer to facilitate working day and night. In steam & thermic fluid heated model, digital temperature indicator is provided with digital timer , but the temperature controller is not supplied with the machine.
Air Circulation :
A highly effective recirculating air system is provided in the Tray Dryers. The heated air, is recirculated with fresh air in selected proportions for optimum drying. The system is designed so that the materials at the top & the bottom dry simultaneously.
Uniform air circulation, controlled temperature, sturdy construction and large working space are the valuables of the oven which is suitably designed to cover wide temperature range, loading and unloading is faster and simple. In higher capacities trays trolley rolls in and out of the chamber. For continuous operation a spare trolley can be had for loading while the drying cycle is taking place.
Controlled Temperature & Time :
Digital temperature controller with digital timer are supplied in Tray Dryers to facilitate working day and night.
Option : Flame proof fittings and motor. S.S.304 / S.S. 316 Trays.
Application : Tray Dryers are widely used in Pharmaceutical, food, chemicals and other industies.
|
|
|
|
|
|
|
|
|
* To embrace new technologies and methods. * To give unsurpassed products and services to the clients. * To constantly look for improvement and changes.
