Hydraulic Adhesion Tester (U.S.A.)

HYDRAULIC ADHESION TESTER (U.S.A.)

Make Digital Pull off Tester Portable checking adhesion of Paint Exproxy Coating on metals as per ASTM D4541 with spare Dollies
Range 0 to 3.5MPS (0-500 Psi). Also for checking adhesion on wood and concrete with special dollies.



Hegman Gauges. (U.S.A. And Tqc Neth.)

HEGMAN GAUGES. (U.S.A./ TQC, NETH.)

The Fitness of grind gauge is used to indicate the presence of an undesirable number of coarse particles or agglomerates in the dispersion of products such as: paints, varnishes, printing inks, chocolates, etc. It is also used for the check of the finished goods and goods of manufacturing. The product which have a too low viscosity, cannot be measured with accuracy. Hegman gauge are offered with single and double grooves with Range of 0-25, 0-50 and 0-100 Microns.



Bird Film Applicator (Tqc Neth. And Indian)

BIRD FILM APPLICATOR (TQC, NETH./ INDIAN)

Bird Film Applictor USA. As per ASTM D3258 for preparation of accurately coated test panels 90mm which available with standard gap size of 25, 50, 75 Microns.



Flow Cup (Indian And Tqc Neth.) (Ford Cup)

FLOW CUP (INDIAN / TQC, NETH.) ( FORD CUP )

Indian make it is an ideal tool with cup made of unmetal, for measuring the viscosity of paints, Varnishes, Oils and other industrial and non industrial fluids. It has wide ranging applications in many industries such as paints, oil extraction and refining, Varnishes etc. It is provided with a stand.

Ford Cup with Bubble Level Tripod Stand

 Indian make

Type: B4 , MOC: Brass Cup



Conical Mandrels (Indian And Tqc Neth.)

CONICAL MANDRELS (INDIAN / TQC, NETH.)

Equipment for determination of elongation and flexibility of paint applied to sheet metal. The frame has a bending lever with a roller which pivots on a steel conical mandrel with a diameter from 3.2 to 38.1mm (0.12 to 1.5"). A graduation indicates the mandrel diameter in mm and inches



Wet Perlitre Cups (Indian And Tqc Neth.)

WET PERLITRE CUPS (INDIAN / TQC, NETH.)

With Capacity of 50 cc to 100cc Issued with certificate .



Four Path Film Applictor (Tqc Neth.)

FOUR PATH FILM APPLICTOR (TQC, NETH.)

Four Size film applicator Swiss / USA for preparation of uniform films of coated materials. Standard size 30/60/90 20Microns 50/100/150/200 Micron with 60mm or 80mm.



Pencil Hardness Testers (Indian And Tqc Neth.)

PENCIL HARDNESS TESTERS (INDIAN / TQC, NETH.)

For measuring hardness and scratch resistance. Supplied with thirteen leads, the instrument is pulled along the sample and the penetration into the paint determines the hardness. This instrument gives extremely constant test conditions. Constant load of 7.5 N Pencil Range 6B to 6H. Pencil Set.



Sagging Applicator (Indian And Tqc Neth.)

SAGGING APPLICATOR ( INDIAN / TQC, NETH.)

Sagging Applicator, Determination of the sagging properties of Coating materials on plane Substrates available with various gapping heights.



Drying Gauges (Tqc Neth.)

DRYING GAUGES (TQC, NETH.)

Drying Gauges for testing coating materials and fillers for drying properties, shrinking, mud-crack, cracking and porosity. Range 0 to 3mm.

Humidity Cabinets Uk And Tqc Neth. And Ind.

HUMIDITY CABINETS UK / TQC, NETH. / IND.

For painting Electro plating and other allied industries with time totaliser & Digital Led Display Temp. Indicator cum controller . Chamber Size 74x48x38cm With Spray gun. Confirms to IS standards UK. Confirming to ASTM Standards Germany / UK.



Oven Temperature Recorder (Tqc Neth.)

OVEN TEMPERATURE RECORDER (TQC, NETH.)

Checking temperature in the conveyor curing Oven of liquids paints, powder coatings components and record data at intervals and sent to the PC / Computers.



Cupping Tester (Tqc Neth. And Indian)

CUPPING TESTER (TQC, NETH. / INDIAN)

Mechanical unit for cup testing of coated sheet eg. with paint, plastic etc. Maximum thickness of sheet is 0.8mm Direct view of sample surface. We also have hydraulic cupping tester.



Scratch Hardness Testers (Motorised) (Indian And Tqc Neth.)

SCRATCH HARDNESS TESTERS (MOTORISED) (INDIAN / TQC, NETH.)

Testing Scratching ad hardness on the painted surfaces on ferrous and Non-Ferrous metals and adhesion of organic and painted coatings.As per BS 3900 E2.



Impact Tester (Indian And Tqc Neth.)

IMPACT TESTER 40" (INDIAN / TQC, NETH.)

For Impact, chipping and splitting determination of a film applied on a sheet metal Impact is produced through one hemispherical ball of 5/8” by a weight of 1 or 2kg. The falling height of the weight is variable from 0 to 100 cm which enables you to reah maximum impact of 200 kg x cm.



Paint Inspection Kits (Uk And U.S.A.)

PAINT INSPECTION KITS (UK / U.S.A.)

Inspector complete fit field kits for checking climatic, surface preparation, adhesion & DFT before and after application of paints.



Ral Color Chart (Germany)

RAL COLOR CHART (GERMANY)

RAL Colour charts Plastic sheets German make. Set of 213 pcs. Depicting complete shades of paint for comparison & finding the right Ral colour number for painted surfaces, coloured plastic components.

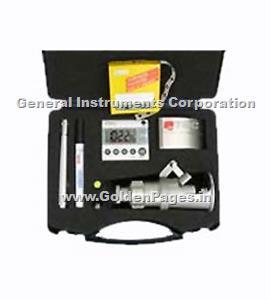

Buchholz Indentation Tester (Tqc Neth.)

BUCHHOLZ INDENTATION TESTER (TQC, NETH.)

Standard test for measuring the hardness of coatings. Complies with ISO2815 standard The set consists of a calibrated slip-on weight with a special indentation wheel, an illuminated measuring microscope, a level gauge, a digital dual timer, and a marker with template. Mandatory test in Qualicoat, QIB and GSB accredited laboratories.

SP1900
BH2000 indentation tester buchholz



Cylindrical Bend Test

CYLINDRICAL BEND TEST

Bend test for determining the elasticity or coatings in accordance with ISO1519.A test panel (format 50 X 100 mm) is bent over a cylindrical mandrel. The smaller the diameter of the mandrel, the greater the tension on the coating. The test panel is then checked for cracks or damage. Mandatory test in Qualicoat, QIB and GSB accredited laboratories. For test panels of +/- 85 mm wide, a special bend test is available (similar to ISO1519) a set of 14 mandrels consisting of 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 19, 20, 25 and 32 mm diameters.Incl. holder.



Multi Tester Master Paint Plate (Tqc Neth.)

MULTI-TESTER MASTER PAINT PLATE (TQC, NETH.)

Multi-functional stainless steel measuring tool. Can be used for : a 1-(1,5)-2-3mm pane adhesion test according NEN-EN-ISO 2409 :2003 and ASTM D3359 (X-cut) andreas cross, measuring wet film thickness from 50 up to 160 microns, checking for correct cover of edges, film apllicator from 0 to 180 µm as well as providing an indication of the viscosity of the coating.

SP3000
Multi-tester master paint plate
Dimensions: 100 x 55 mm.



Wet Film Thickness Gauge Type Wgi (Tqc Neth.)

WET FILM THICKNESS GAUGE TYPE WGI (TQC, NETH.)

Hexagonal/Octagonal precision measuring comb made of heavy stainless steel. The high- grade stainless steel will not be affected by acid or base elements. Models available for several different applications:
- 20 to 370 microns for decorative paints and primers
- 25 to 2000 microns for protective coatings and high solids.
With edge radius check (2mm).
- 50 to 10.000 microns for extremely thick films such as floor
coatings, fillers, fire proofing, plaster, adhesives etc.
SP4000
WG-1 20-370 µm in 24 steps (6x4)



Tubular Impact Tester

TUBULAR IMPACT TESTER



Tripod Stand For Viscosity Cup

TRIPOD STAND FOR VISCOSITY CUP



Digital Resistivity Meter For Coatings

DIGITAL RESISTIVITY METER FOR COATINGS

TQC Netherland

Digital instrument for the measurement of surface resistivity of coatings which are sprayed electrostatically.
The probe is immersed in the coating and the measured value is displayed on screen. The probe is easy to clean.
Measuring range from 100Kohm to 20.000Kohm(20Mohm).





Resistivity Gauge For Coatings

RESISTIVITY GAUGE FOR COATINGS

Digital instrument for the measurement of surface resistivity of coatings which are sprayed electrostatically.
The probe is immersed in the coating and the measured value is displayed on screen. The probe is easy to clean.
Measuring range from 100Kohm to 20.000Kohm(20Mohm).
