Include response time of less than 2 seconds, high intrinsic accuracy (better than + /- at Palladium point), reproducibility, light weight and easy operation. It is entirely factory assembled, calibrated and tested.The expandable Thermocouple is a very low cost and yet highly useful, versatile temperature measuring sensor for Ferrous and Non-ferrous molten metal applications, for which it has no substitute.

FONDTIP® is aimed at providing the ultimate answer to low cost temperature measurement and specially designed to suit foundry conditions.Carefully chosen materials such as special high temperature ceramic sleeve, extra long quartz sheath, precision thermocouple wires etc result in a product which is safe, versatile, accurate and highly economical.

Wider applications :

FONDTIP® is patently suited for precise probing in induction furnaces, ladles, moulds and streams that had so far remained beyond the scope of a direct probe. FONDTIP® also comes in handy for runners, continuous casting Tundishes - virtually for all application where the slag is minimal - preferably nil-specially for salt bath furnaces.

For faster productivity, least analysis time and determination of highly accurate chemistry of bath. Samplers is an internationally accepted form of sampling for enabling faster and more accurate metal analysis resulting in greater furnace turns round.

As the name suggests, the metal sample is extracted in the form of metal lollipop- the internationally adopted disc and pin configuration.

Specifications :

Normal configuration consists of one oblong disc of 8 or 12mm thickness and one pin of diameter 6.0mm. However circular discs as also a second pin of 4.00mm are also available

Scientific sampling
Totally slag free
No loss of trace elements
Multiple choice of de-oxidants
Minimal sample preparation time resulting in versatility, quick and true analysis

Fykays' Molten Metal Temperature System (MMTS) combine sophisticated electronic design with down-to-earth practical needs of the metallurgist, resulting in a state-of-art, versatile, rugged, reliable electronic system. High standards of technology in software and high quality of hardware design, close tolerance components have resulted in equipment, which can be modestly described as users' dream.

Over the years, FYKAYS have closely studied the industry's close temperature measurement, avoidance of cold heats, excessive skull formation, unnecessary superheats, running stopper rods, hot spots, high energy costs / tonne of metal produced, etc. The result is FYKAYS MMTS.

Fykays offer a wide range to select from:

Panel mounted, Microprocessor based, rugged, mains operated unit.
Panel mounted Micro Computer based unit offers sophistication to meet any / all needs.
Multi Station Queuing system offers the ultimate range in large steel melt shops with several measuring stations.

Features:

Portable rechargeable battery operated unit
Panel Mounted Microprocessor
Panel mounted microcomputer based unit
Multi-station queuing
Audio-Visual Signal System

Rapid Calibrating device (Instameter) is designed and built to serve a dual purpose; that of a continuity tester and a calibrator. On plugging theRapid Calibrating device (Instameter) with the selector in the 'OFF' position, the entire circuit continuity is indicated. Once this has been established the sector is positioned at T1, T2, T3, or T4.

The corresponding calibrated mill volts are fed into the instruts, whereupon the corrective calibration can be carried out. The most versatile feature of this unit is that the signal is injected through the compensating cables, connectors etc. thus, there is full compensation for all possible errors, arising due to the cables etc., themselves.
Instruments, thus calibrated with the help of Rapid Calibrating device (Instameter), reproduce the thermocouple signal with 100% exactitude.

Self-powered :

Instameter is self-contained and is powered by a commonly available 9v battery thereby obviating the limitations of external power supply.

Variety type

For carbon equivalent meters 'CC' or 'CS'
For immersion pyrometry systems 'T-10', 'T-13', 'T18'
For oxygen in steel system '0'

Instameter is a portable handy instrument designed and manufactured by Fykays combining several long sought after features that instrument engineers and technicians desire o have in a rapid checking and calibrating device for use on the shop floor.

Instameter is provided with built in automatic cold junction compensation for effective ambient correction over a range of 0°C to +50°C; with accuracy better than +\-0.1°C/1°C. Calibrations available: IPTS 68, DIN, NBS, BS, AFNOR etc.

THERMOXYTIP contains a well-established solid electrolyte and a solid-state reference material encapsulated in a quartz tube to form the Oxygen sensor in a modular form. This sensor together with the Oxygen activity in the steels form a millivolt cell and generates an e.m.f. Proportional to the amount of dissolved Oxygen in the molten steel bath.

A high melting point virgin metal rod forms the bath electrode making contact with the molten metal thus completing the electric circuit. The well-known THERMOTIP brand Disposable Thermocouple forms the companion bath temperature sensor.

Multivarious uses of THERMOXYTIP:

The carbon content in steel can be estimated under certain circumstances. When the Carbon and the Oxygen reaction has reached an equilibrium this may be expressed by the relation:M=(% C) (%O) = 0.0022Thus with an indicated oxygen content of say 300 ppm, the carbon content can be estimated to be 0.073 %.Since Silicon and Oxygen diffuse very rapidly at liquid steel temperature, the equilibrium of the reaction Si + 2 O = SiO2 is achieved very quickly and % Si can be estimated by the equation.Log % Si = 20, 166 E/T - 12530/T + 2.78Where E = Oxy probe output voltsT = Temperature in Degrees KelvinIn case of low carbon Aluminum killed argon stirred steels (LCAK), the residual aluminum can be determined.

Description : FYKAYS' OXYCOMP-D® is a versatile microprocessor based, extremely fast instrument for rapid determination of active oxygen in molten steels and alloy steels as well as copper alloys.

The instrument derives its twin signals of oxygen cell voltage and bath temperature from two-in-one probe - THERMOXYTIP®, instantly calculates and presents a DIRECT Digital display. By virtue of fast sampling techniques (less than 200 mS), unique Plateau detection method, latching and storing of data, the OXYCOMP-D® retains the transient output signals from the expendable probe (Max 10-15 secs) and calculates the oxygen content in the molten metal.

Technical Features :

The instrument architecture is built around the versatile 8085 A microprocessor. Dual 4 ½ digit A/D converters convert the thermocouple and oxy cell mV signals in less than 200 mS. The detection of the steady values is achieved by unique "plateau detection" method. The RAM stored values are fed on to the CPU, which calculates and displays the results on bright, 25 mm, seven LED's.The various equations are stored in battery backed ROM's. In order to facilitate proper operating, the system has built-in audio-visual signaling system, which generates functional signals such asREADYMEASUREMENT IN PROGRESSOVERERROR

The signaling system consists of signal lamps and piezo electric hooter on the instrument panel with auxiliary relays to trigger field mounted lamps and hooter.

Features:

Microprocessor Based
Highly Versatile
Instant Computation
User Friendly
Multiple Output
Built-in Alloying Elements Correction

The Heat Treatment industry in India is growing by leaps and bounds. However, increasing customer awareness, the rising costs of carburizing fluids and energy are causing Heat Teeters to be increasing conscious about

Incorrect Carbon absorption
Incorrect case depth
Insufficient case carbon
Too much carburization resulting in fractures
Too much energy consumption
Too much fluid consumption
Too many reworking

The Fykays Automatic Programmable C-Pot controller is the perfect solution to all the above problems. .

FYKAYS MICROPROCESSOR BASED C-POT CONTROLLER:

The C-POT CONTROLLER works on the well–proven Zirconia sensor principle which enables detection of Oxygen in the furnace from PPM level to PPB levels. The C-POT CONTROLLER has been specifically developed to monitor the precise Carbon Potential in the furnace atmosphere whether it is Pit type, SQ or a Continuous furnace. Whether a manual system is opted for, or a fully automatic unit with multiple cycles, Fykays’ C-POT CONTROLLER enables heat treaters to achieve high standards of Carburizing, Carbonitriding etc operations.
Some salient features of the system are:

Multiple segments are within the capability of the C-POT CONTROLLER, in terms of carburizing, Diffusion, Soaking etc.
The multi segment programmable controller provides for Nitrogen sealing of the job during soaking.
The C-POT CONTROLLER helps to regularly achieve high product homogeneity, reduction of enrichment fluid and reduced energy consumption and most importantly avoid any re-working.
It is designed to accept dual inputs- from the thermocouple and Oxygen sensor.
Four 1” displays showing RTC, C-POT value and temperature and operational status near the furnace enable the operator to precisely control his schedules.
Extremely easy to install and operate
Can be installed within a matter of hours
Virtually maintenance free PROGRAMMABLE C-POT CONTROLLER FROM FYKAYS ENGINEERING (P)LTD. 2014
It comes with a lot of built in features like RTC, Hi- Lo Oxygen set points indication facility, Trial output for fluid feed control, time proportionate ON/OFF control, system alarm for thermocouple failure, Probe temperature over range and very high probe cell voltage, etc.
Data logging, alarm indications, computer compatibility etc.

The basic components of Fykays’ C-POT CONTROLLER are as follows:

Oxygen Probe: The Zirconia Oxygen probe which senses the Carbon potential in the furnace.
C-POT CONTROLLER suitably panel mounted.
The reference air system
The electronic purging apparatus
The remote display: with Hi/Lo alarm
Trim by-pass manifold.
Accessories like special umbilical cord etc.

Fykays C-POT CONTROLLER promises to reduce fluid consumption by as much as 20% and reduce energy consumption by about 10% and zero re-working. Under these circumstances, this system is a MUST for all carburizing furnaces particularly when the payback period for this system can be as low as a few weeks to a maximum of couple of months.

FYKAYS offer two distinct types of IN-SITU PROBES

Reaction Bonded: (RB) unsheathed probes
Fusion bonded: (FB) sheathed probes

Reaction bonded probes, which can be used without external sheathing and the associated assembly and maintenance problems make use of a patented process in which a ZrO2 thimble or pellet is bounded onto an Al2O3 tube by reaction through a platinum washer.Fusion bonded sensors on the other hand use sintered ZrO2 pellet cemented and fused to the Alumina tube

Wider applications :

Length of Probes

Standard lengths available are 150, 300, 600, 900, 100, 1200 and 1500 mm. Longer lengths up to 2500 mm available on special request.

Thermocouple Specifications:

For RB sensors the thermocouples are normally type 'R' or 'S' (Pt.Pt.Rh 13 % or Pt.Pt.Rh 10 %)For FB sensors the choice is extended to 'K' type (chromel-alumel), for lower temperature applications.

For extra temperatures probes are supplied with 'B' type (PtRh 6% - Pt 30 %) thermocouples (RB sensors only) thermocouples (RB sensors only)

Specifications :

Temperature Limits
FB sensors upto 1400C
RB sensors upto 1800C

Applications :

Energy Conservation
Boilers of any / all types
Rotary Kilns
Reheating / heating furnaces
Forging furnaces
Forging furnaces
Tunnel Kilns
Heat Treatment furnaces

End use: Power plants, Cement, Sugar, Paper, Textile, Steel, Chemicals, Petro-chemical, Fertilizers, Ceramic and other industries

FYKAYS offers a very wide choice of thermocouples and accessories for industrial application. Carefully chosen components including premium grade thermocouple wires and other quality raw materials and special "made to specs" designs, ensure close accuracies, fast response, long deterioration-free service and other such high 'benefits to cost' advantages to users.

Types:

1) Sheathed
2) Bare
3) Button type
4) Bow type
5) Needle type
6) Roller type
7) Flexible bow type

Choice of Thermocouple:

1) Copper-Constantan
2) Iron-Constantan
3) Chromel-Alumel
4) Platinum-Platinum Rhodium 10%
5) Platinum-Platinum Rhodium 13%
6) Platinum Rhodium 6%
7) Platinum Rhodium 30%
8) Tungsten- Tungsten Rhenium 26%
9) Tungsten 5% - Tungsten 26%

Choice of sheath material

NON-METALLIC
1) Mullite
2) Silliminite
3) Recryst. Alumina Fused Silica
4) Berylia
5) Graphite, etc.
6) Fused Silica

Metallic
Carbon Metal : SS 304, SS 316, SS410
Hastelloy, A,B, C or X, Monel, Tantalum, Iniconel, Incalloy Mollybdenum, etc.

Choice of construction
Simplex / Duplex, Straight, Right angle, 45 degree angle, Adjustable flange
Hot Junction: Exposed Junction, Covered Grounded or Ungrounded Junction

Calibration
Unless specified all our thermocouples are as per IPTS-68. Other calibrations can be made on request.

Accuracy
Normal : +/- 3/8 % of the read value
Special : +/- 1 C in specified range of operation
Certification : Special certification at specific reference points can be provided at extra cost.

It is the Micouple Bow to the Industry's demand/Desire for Quality, Economy and Safety. Mi Couple is supple, Durable and Accurate to the Core. It is designed to be a part of the heating structure. In that process it stands BEATINGS in the beds and TWISTINDS in the walls so that it can keep in touch with the superhot materials and transmit the process temperatures Days in and Years out. Mi Couple represents a wide range of permanent thermocouples to be useful to many industries. Mi Couple is produced by : Fykays Engineering Pvt. Ltd. Leaders in Advanced Pyrometry.

On the lop, at the bottom and the walla throughout the arduous path to the control apparatus. Nil Couple and Micab combination of Thermocouple technology is assiduously developed for superfast and accurate temperature measurement from vital spots considered inaccessible so far, as the high temperatures and hitherto undiscovered materials of construction precluded precise probe. It now facilitates rigid quality control denied thus far to the quality conscious decision makers. While helping to improve quality Mi Couple enables closer control on fuel costs. Its contribution to Industrial Safety is a very important consideration in its favour.

Mi Couple is embedded at the critical process paint to catch the process temperature and transmit the signal to the control apparatus through Mi Cab. ft thus simplifies and hastens decision making for Quality, Economy and Safety. Whereas Mi Couple describes the Mineral insulated thermocouples, Mi Cab describes the Mineral insulated cables that truthfully complement the relay function of Mi Couple through a little less hostile environment.

Mi Cab is the most reliable complement to Mi Couple because it shares its superfast signal transmission efficiency and resistance to the varying temperature zones of the traversing regions and also to static interferences through its exposed path. Mi Couple is made available in many versions, to serve varied industries. Whereas, the Nuclear, Aircraft, special steels, Ferro-Alloys and their like attract the Costlier versions; less exacting conditions in Dairies, Power stations, Pharmaceuticals may opt for the economic variety suited to their respective plants & processes.

Depending on the specifications of each Industrial Process or Product Fykays offer a wide choice for Mi Couple - Mi Cab ingredients.

SCALE LOSSES AND FUEL LOSSES are the biggest causes of concern for all re-heating furnace owners, particularly in these recession–hit times.

Scaling Loss:

On an average, Indian scale loss is 1.5% to 3.5%. However, not many people are aware that the average International scale loss is 0.2% to 0.8%. It is possible to limit scale losses and match international standards. A rough estimate is that a scale loss of 1% in a daily production of 100 MT of rolled steel will cause a loss of Rs.36000/- per day i.e. Rs.108 lacs per annum.

Fuel Loss:

Indian consumption of fuel per MT of steel rolled is anywhere between 38 to 55 litres, which is, again, way above the International average consumption of Furnace oil 25 litres/MT.

A reduction in fuel consumption by even 10% would effect savings of upto Rs. 11700/- per day or approximately Rs. 35 LACS per year (at an average consumption of 45 litres / MT and at a production level of 100 MT per day and taking the cost of Furnace Oil to be approximately Rs. 26/ Litre).

Scale losses and increased fuel consumption are caused mainly due to too much excess air in the furnace due to incorrect air: fuel ratio, causing the excess oxygen to oxidize the job in the re-heating furnace and sensible heat being carried away from the furnace requiring more fuel to be pumped in.
Re-heating plants across India are thus losing lacs and lacs of Rupees every year. What is the solution.

1. "OXYCOMP-G" - FYKAYS ONLINE OXYGEN ANALYSER
The OXYCOMP - G works on the well–proven Zirconia sensor principle which enables detection of Oxygen in the furnace from PPM level to 100%.
The OXYCOMP-G has been specifically developed to monitor the amount of excess oxygen in the re-heating furnace gases. Once this is known, the user can control the amount of fuel injected.

For example, if the Oxygen percentage is too high (say 5%), the instrument will give an indication on the remote display and the air injected into the furnace will have to be reduced by the user. This will obviously reduce fuel consumption as well as scaling losses.
This document is the property of Fykays Engineering Pvt Ltd and may not be reproduced in any form without prior permission.

The basic components of Fykays OXYCOMP-G system are as follows:

Oxygen Probe: The Zirconia Oxygen probe which senses the Oxygen in the furnace atmosphere
Probe heating Furnace + Controller: A small auxiliary furnace which is installed on the side wall of the re-heating furnace in which the Oxygen probe is installed. This furnace temperature is controlled with the help of a PID controller.
The Oxygen Analyzer
The reference air system
The electronic purging apparatus
The remote display: The signaling panel with Hi/Lo alarm

Once the Oxygen content in the furnace atmosphere is indicated by the instrument, the fuel can be controlled manually. If desired, the output from this system can be used to automate the control of fuel injection into the furnace with the use of control valves.

2. OXYCOMP G-II FYKAYS OXYGEN ANALYZER AND CONTROLLER

Recognizing the industry requirement for automated control, we developed the OXYCOMP G-II. Essentially, it is also built around the well proven Zirconia technique and enables precise detection and control of Oxygen over a wide range.

In addition, this version of OXYCOMP G-II utilizes an equally well proven technology namely Variable Frequency Drive (VFD) to regulate the speed of the main air blower so as to reduce the air intake into the furnace so as to contain the excess free Oxygen, instead of having to depend on the furnace fireman.

FYKAYS offer two distinct types of IN-SITU PROBE

Reaction Bonded: (RB) unsheathed probes
Fusion bonded: (FB) sheathed probes

Reaction bonded probes, which can be used without external sheathing and the associated assembly and maintenance problems make use of a patented process in which a ZrO2 thimble or pellet is bounded onto an Al2O3 tube by reaction through a platinum washer.Fusion bonded sensors on the other hand use sintered ZrO2 pellet cemented and fused to the Alumina tube

Wider applications :

Length of Probes

Standard lengths available are 150, 300, 600, 900, 100, 1200 and 1500 mm. Longer lengths up to 2500 mm available on special request.

Thermocouple Specifications:

For RB sensors the thermocouples are normally type 'R' or 'S' (Pt.Pt.Rh 13 % or Pt.Pt.Rh 10 %)For FB sensors the choice is extended to 'K' type (chromel-alumel), for lower temperature applications.

For extra temperatures probes are supplied with 'B' type (PtRh 6% - Pt 30 %) thermocouples (RB sensors only) thermocouples (RB sensors only)

Specifications :

Temperature Limits
FB sensors upto 1400C
RB sensors upto 1800C

Applications :

Energy Conservation
Boilers of any / all types
Rotary Kilns
Reheating / heating furnaces
Forging furnaces
Forging furnaces
Tunnel Kilns
Heat Treatment furnaces

End use: Power plants, Cement, Sugar, Paper, Textile, Steel, Chemicals, Petro-chemical, Fertilizers, Ceramic and other industries

Totally automates monitoring and control of Furnace temperature, excess oxygen in the flue gas and furnace pressure to achieve dramatic reduction of fuel consumption and losses due to scaling and also prevents surface decarburization.

Temperature monitoring and control by sensing soaking zone temperature and regulating the air and fuel control valves by means of a PID controller, which can be either pneumatically or electrically actuated. The air : fuel ratio is built into the controller software. One of the noteworthy features of the temperature loop is the special facility provided for manual intervention – on occurrence of a mill breakdown, the furnace temperature can be turned down to pre-determined levels simply at the click of a button.

FYKAYS offers a very wide choice of thermocouples and accessories for industrial application. Carefully chosen components including premium grade thermocouple wires and other quality raw materials and special "made to specs" designs, ensure close accuracies, fast response, long deterioration-free service and other such high 'benefits to cost' advantages to users.

Types:

1) Sheathed
2) Bare
3) Button type
4) Bow type
5) Needle type
6) Roller type
7) Flexible bow type

Choice of Thermocouple:

1) Copper-Constantan
2) Iron-Constantan
3) Chromel-Alumel
4) Platinum-Platinum Rhodium 10%
5) Platinum-Platinum Rhodium 13%
6) Platinum Rhodium 6%
7) Platinum Rhodium 30%
8) Tungsten- Tungsten Rhenium 26%
9) Tungsten 5% - Tungsten 26%

Choice of sheath material

NON-METALLIC
1) Mullite
2) Silliminite
3) Recryst. Alumina Fused Silica
4) Berylia
5) Graphite, etc.
6) Fused Silica


METALLIC
Carbon Metal : SS 304, SS 316, SS410
Hastelloy, A,B, C or X, Monel, Tantalum, Iniconel, Incalloy Mollybdenum, etc.

Choice of construction
Simplex / Duplex, Straight, Right angle, 45 degree angle, Adjustable flange
Hot Junction: Exposed Junction, Covered Grounded or Ungrounded Junction

Calibration
Unless specified all our thermocouples are as per IPTS-68. Other calibrations can be made on request.

Accuracy
Normal : +/- 3/8 % of the read value
Special : +/- 1 C in specified range of operation
Certification : Special certification at specific reference points can be provided at extra cost.

It is the Micouple Bow to the Industry's demand/Desire for Quality, Economy and Safety. Mi Couple is supple, Durable and Accurate to the Core. It is designed to be a part of the heating structure. In that process it stands BEATINGS in the beds and TWISTINDS in the walls so that it can keep in touch with the superhot materials and transmit the process temperatures Days in and Years out. Mi Couple represents a wide range of permanent thermocouples to be useful to many industries. Mi Couple is produced by : Fykays Engineering Pvt. Ltd. Leaders in Advanced Pyrometry.

On the lop, at the bottom and the walla throughout the arduous path to the control apparatus. Nil Couple and Micab combination of Thermocouple technology is assiduously developed for super fast and accurate temperature measurement from vital spots considered inaccessible so far, as the high temperatures and hitherto undiscovered materials of construction precluded precise probe. It now facilitates rigid quality control denied thus far to the quality conscious decision makers. While helping to improve quality Mi Couple enables closer control on fuel costs. Its contribution to Industrial Safety is a very important consideration in its favour.

Mi Couple is imbedded at the critical process paint to catch the process temperature and transmit the signal to the control apparatus through Mi Cab. ft thus simplifies and hastens decision making for Quality, Economy and Safety. Whereas Mi Couple describes the Mineral insulated thermocouples, Mi Cab describes the Mineral insulated cables that truthfully complement the relay function of Mi Couple through a little less hostile environment.

Mi Cab is the most reliable complement to Mi Couple because it shares its super fast signal transmission efficiency and resistance to the varying temperature zones of the traversing regions and also to static interferences through its exposed path. Mi Couple is made available in many versions, to serve varied industries. Whereas, the Nuclear, Aircraft, special steels, Ferro-Alloys and their like attract the Costlier versions; less exacting conditions in Dairies, Power stations, Pharmaceuticals may opt for the economic variety suited to their respective plants & processes.

Depending on the specifications of each Industrial Process or Product Fykays offer a wide choice for Mi Couple - Mi Cab ingredients.

Today’s discerning CEO has long since acknowledged that controlling operational bottom lines goes far beyond controlling just material and labour cost. Several areas are cause for concern:

Operational concerns:
Accurate control of process parameters.
Energy Conservation.
Protection against corrosion and erosion
Cost control
Productivity

Process control concerns:
Temperature
Product Quality
Increased wear and tear of equipment
Frequent breakdowns

Temperature Concerns:
Probably the most important — also the most neglected!
An area which could make the difference between the Organization's balance sheet being red and black

Concerns relating to control systems:
Cost
Installation problems — time, shut down, etc.
Training manpower to operate the system — lack of educated shop floor workers, resistance from workers, etc
Maintenance

Fykays Solutions:

For Boiler Plants - To ensure optimum combustion efficiency and therefore fuel savings AND To avoid surface pitting of water tubes, water walls, water drum etc and more importantly minimize the need for soot blowing

ON-LINE Oxygen analyzers using IN-SITU Zirconia Oxygen probes
Microcontroller based Analyzers and accessories as also, with minimum or nil free oxygen.
Special thermocouples especially wear resistant and corrosion resistant type
Miniature thermocouples for feed water line, economizers & de-aerators for water in and water out lines, gas in and gas out lines

For Turbo generators : Extremely fine diameter MI thermocouples as fine as 1.0 mm dia for turbine and alternator bearings, stator winding coils, steam exhaust, condenser in and out line

For Transformers: Extremely fine diameter MI thermocouples as fine as 1.0 mm dia for transformer windings, precision thermocouples and RTD’s for transformer oil, cooling water in and out temperatures etc.

Reaction Bonded: (RB) unsheathed probes
Fusion bonded: (FB) sheathed probes

Reaction bonded probes, which can be used without external sheathing and the associated assembly and maintenance problems make use of a patented process in which a ZrO2 thimble or pellet is bounded onto an Al2O3 tube by reaction through a platinum washer.Fusion bonded sensors on the other hand use sintered ZrO2 pellet cemented and fused to the Alumina tube

Wider applications :

Length of Probes

Standard lengths available are 150, 300, 600, 900, 100, 1200 and 1500 mm. Longer lengths up to 2500 mm available on special request.

Thermocouple Specifications:

For RB sensors the thermocouples are normally type 'R' or 'S' (Pt.Pt.Rh 13 % or Pt.Pt.Rh 10 %)For FB sensors the choice is extended to 'K' type (chromel-alumel), for lower temperature applications.

For extra temperatures probes are supplied with 'B' type (PtRh 6% - Pt 30 %) thermocouples (RB sensors only) thermocouples (RB sensors only)

Specifications :

Temperature Limits
FB sensors upto 1400C
RB sensors upto 1800C

Applications :

Energy Conservation
Boilers of any / all types
Rotary Kilns
Reheating / heating furnaces
Forging furnaces
Forging furnaces
Tunnel Kilns
Heat Treatment furnaces

End use: Power plants, Cement, Sugar, Paper, Textile, Steel, Chemicals, Petro-chemical, Fertilizers, Ceramic and other industries

Totally automates monitoring and control of Furnace temperature, excess oxygen in the flue gas and furnace pressure to achieve dramatic reduction of fuel consumption and losses due to scaling and also prevents surface decarburization.

FYKAYS offers a very wide choice of thermocouples and accessories for industrial application. Carefully chosen components including premium grade thermocouple wires and other quality raw materials and special "made to specs" designs, ensure close accuracies, fast response, long deterioration-free service and other such high 'benefits to cost' advantages to users.

Types:

1) Sheathed
2) Bare
3) Button type
4) Bow type
5) Needle type
6) Roller type
7) Flexible bow type

Choice of Thermocouple:

1) Copper-Constantan
2) Iron-Constantan
3) Chromel-Alumel
4) Platinum-Platinum Rhodium 10%
5) Platinum-Platinum Rhodium 13%
6) Platinum Rhodium 6%
7) Platinum Rhodium 30%
8) Tungsten- Tungsten Rhenium 26%
9) Tungsten 5% - Tungsten 26%

Choice of sheath material

NON-Metallic
1) Mullite
2) Silliminite
3) Recryst. Alumina Fused Silica
4) Berylia
5) Graphite, etc.
6) Fused Silica


METALLIC
Carbon Metal : SS 304, SS 316, SS410
Hastelloy, A,B, C or X, Monel, Tantalum, Iniconel, Incalloy Mollybdenum, etc.

Choice of construction
Simplex / Duplex, Straight, Right angle, 45 degree angle, Adjustable flange
Hot Junction: Exposed Junction, Covered Grounded or Ungrounded Junction

Calibration
Unless specified all our thermocouples are as per IPTS-68. Other calibrations can be made on request.

Accuracy
Normal : +/- 3/8 % of the read value
Special : +/- 1 C in specified range of operation
Certification : Special certification at specific reference points can be provided at extra cost.

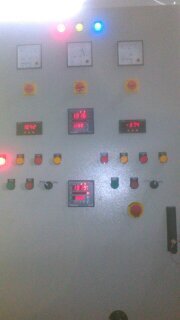

Temperature monitoring and control by sensing soaking zone temperature and regulating the air and fuel control valves by means of a PID controller, which can be either pneumatically or electrically actuated. The air : fuel ratio is built into the controller software.  One of the noteworthy features of the temperature loop is the special facility provided for manual intervention – on occurrence of a mill breakdown, the furnace temperature can be turned down to pre-determined levels simply at the click of a button.

It is the Micouple Bow to the Industry's demand/Desire for Quality, Economy and Safety. Mi Couple is supple, Durable and Accurate to the Core. It is designed to be a part of the heating structure. In that process it stands BEATINGS in the beds and TWISTINDS in the walls so that it can keep in touch with the super hot materials and transmit the process temperatures Days in and Years out. Mi Couple represents a wide range of permanent thermocouples to be useful to many industries. Mi Couple is produced by : Fykays Engineering Pvt. Ltd. Leaders in Advanced Pyrometry.

On the lop, at the bottom and the walla throughout the arduous path to the control apparatus. Nil Couple and Micab combination of Thermocouple technology is assiduously developed for super fast and accurate temperature measurement from vital spots considered inaccessible so far, as the high temperatures and hitherto undiscovered materials of construction precluded precise probe. It now facilitates rigid quality control denied thus far to the quality conscious decision makers. While helping to improve quality Mi Couple enables closer control on fuel costs. Its contribution to Industrial Safety is a very important consideration in its favour.

Mi Couple is imbedded at the critical process paint to catch the process temperature and transmit the signal to the control apparatus through Mi Cab. ft thus simplifies and hastens decision making for Quality, Economy and Safety. Whereas Mi Couple describes the Mineral insulated thermocouples, Mi Cab describes the Mineral insulated cables that truthfully complement the relay function of Mi Couple through a little less hostile environment.

Mi Cab is the most reliable complement to Mi Couple because it shares its super fast signal transmission efficiency and resistance to the varying temperature zones of the traversing regions and also to static interferences through its exposed path. Mi Couple is made available in many versions, to serve varied industries. Whereas, the Nuclear, Aircraft, special steels, Ferro-Alloys and their like attract the Costlier versions; less exacting conditions in Dairies, Power stations, Pharmaceuticals may opt for the economic variety suited to their respective plants & processes.

Depending on the specifications of each Industrial Process or Product Fykays offer a wide choice for Mi Couple - Mi Cab ingredients.

Expendable Thermocouple Tips
