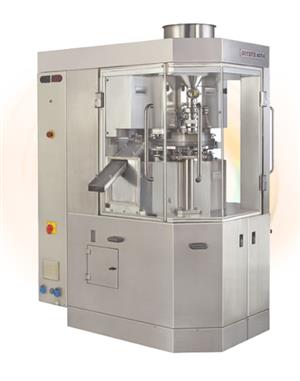

• SINGLE ROTARY TABLET PRESSES WITH EXCHANGEABLE TURRET.
• With Motorized pre compression of 10 Tons. (100 KN)
• With Motorized main compression of 10 Tons. (100 KN)
• With Motorized dozzer, for precise depth of fill adjustment.
• With auto weight control (A.W.C)
• With Industrial PC/HMI, having 15” colour touch Panel
• With Load cell at pre- compression & main compression
• With load cell for lower punch tight detection
• With Auto sampling based on, either time or revolution or Punch no.
• With auto rejection, of any single tablet, out of prescribed
• compaction force limit.
• With Easy Turret Change facility
• Vibration free and easy to operate at 70RPM
• Turret Can be changed within a very small time segment.
• Reduces the product change over time.
• can have an option for the use of any turret having
• tooling 31-D or 37- B or 45 BB
• No more cubical required. All three type of tablet compression
• available on the same machine
• Save cost of Multiple operators
• Save cost of Multiple Spares
• Saves cost of Multiple Cubicles
• Reduce the tablet rejection by AWC
• Provide accurate weight & tablet quality.
• Optimize various tab, Parameters like hardness thickness & weight
• Eliminates maximum human errors.
• Auto Lubrication on Specific Points & Grease Lubrication on other points.
• No Hydraulics, No Oil, No Oil Leakage.
• Machine with manual over-ride facility Incase of failure of PLC / HMI

We are involved in offering a wide range of High Speed Double Rotary Tablet Presses to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  High Speed Double Rotary Tablet Presses. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

1. Sturdy design
2. Highly durable
3. Application specific design

We are involved in offering a wide range of High Speed Tablet Press to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  High Speed Tablet Press. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

1. Sturdy design
2. Highly durable
3. Application specific design

• In Compliance with cGMP Standard
• High speed Turret Operation – up to 70 RPM.
• Pre- Compression as a Standard Features.
• SS 316 Contact Parts and Middle Plate of Turret
• Three PC. Turret with Electroless Nickel Plating & Lower Punch seals.
• Easily removable bottom driven rotary Force Feeders.
• Main Motor and force feeder motors drives through ACVFD.
• Electromagnetic Clutch system  to protect rotating parts from the starting toque means, less wear  & tare.
• Hydraulic Power pack system for pressure loading and overload release.
• All Machine contacts & tablet parameter settings from outside of the machine
• Centrally driven oil immersed gear box having direct drive to the turret.
• Main motor & drive have rested to permit the start of the machine at any speed, under maximum load, Without any complications.
• Adjustable Upper Punch Penetration (This feature is highly beneficial when tablet difficult products Or making very Shallow tablets.
• Double Sided Groved Channel Type Upper Cam Track for Lifting / Lowering the upper Punches.
• Auto Lubrication pump, as a standard features.
• Acrylic upper cabinet guards having 12 mm thickness.
• Lower guards of SS 304, having excellent matt finish.
• Hopper with Butter fly valves & Hopper granule level sensor
• Hour run meter, to record the total machine run time.
• Digital tablet counter with RPM Meter.
• Interlocked limit switches to upper guards for operator safety.
• S.S. Cladding to the bottom plate for easy cleanability
• Anti Vibration mount at the bottom plate
• Tablet MFG. Zone, paint free & without corner support pillars, for easy cleanability
• Box type control Pannel
• Box type control panel of SS 304 material, on back side of the machine This a Unique feature which protect control Panel & Electricals for dust partials.

• Polycarbonate upper guards (Optional)
• Separate Electric control Pannel (Optional)
• PLC with MMI Colour Touch Screen (Optional)
• Servo Motor Mechanism for tablet thickness Auto dialing through PLC (Optional)
• Auto Rejection and Random Sampling Device (During Start and Stop of the Machine) (Optional)
• Fully Computer Control system (CFC) (Optional)
• Powder loading system (VAC – V- Max Type) (Optional)
• Lower punch lubrication spray System (Optional)
• 2 Year recommended Spares (Optional)

• In Compliance with cGMP Standard
• Machine is Having C.I. Body and C.I. Middle plate
• Paint free tablet manufacturing zone.
• Single Pcs Turret of Special Grade S.G. Iron casting
• Disc type friction clutch start system
• Upper punch penetration
• Electronic Digital Tablet cum RPM Counter
• Inter lock switches to all Guards.
• Double Sided lifting cams
• Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material Aluminum    Turret Guards
• Effective Dust Extraction Nozzles
• Imported needle roller bearing provided at the bottom of turret.
• Variable Speed pulley, one shot Lubrication System, Anti Vibrating mounts
• Reverse direction motion protection is provided to avoid accident.

• Available with AC variable Drive & Electromagnetic Clutch
• Available with force feeding with AC Drive attachments
• Available with two layer tablets attachment
• Available with PLC With MMI & Colour Touch Screen
• 3 Pcs Turret With Electroless Nickel Plating (ENPL) & S.S. 316 Die Plate.

•  C.I. Middle plate
• Paint free tablet manufacturing zone.
• Turret of Special Grade S.G. Iron casting
• Upper punch penetration
• Electronic Digital Tablet cum RPM Counter
• Inter lock Switches to all Guards.
• Double Sided lifting cams
• Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material
• Aluminum Turret Guards
• Imported needle roller bearing provided at the bottom of turret.
• Effective Dust Extraction Nozzles
• One shot Lubrication System.
• Anti vibration Mounts
• Reverse direction motion protection is provided to avoid accident

• Available with AC variable Drive & Electromagnetic Clutch (Optional)
• 3 Pcs Turret With Electroless Nickel Plating (ENPL) & S.S. 316 Die Plate.
• Auto Lubrication
• Lower Punch Lubrication Spray System for Affervesent & Hygroscopic Powder.

• Square GMP Table Top Model
• Paint free tablet manufacturing zone.
• Turret of Special Grade S.G. Iron casting
• Upper punch penetration, as a standard features
• Electronic Digital Tablet cum RPM Counter, as a standard features
• Inter lock Switches to all Guards, as a standard features
• With A.C. Variable Drive, as a standard features
• Pre-Compression facitility as a standard features
• Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material
• S. S. Turret Guards
• Imported needle roller bearing provided at the bottom of turret.
• Anti vibration Mounts.
• Reverse direction motion protection is provided to avoid accident.
• Grease Nipples are provided for effective lubrication, where required

• Available with force feeding attachment
• Available with PLC with MMI & Colour Touch Screen
• Available with PLC & Industrial PC having all automation functions.
• SS Machine Mounting Stand with Caster Wheels with Drawer.
• Pcs Turret With Electroless Nickel Plating (ENPL) & S.S. 316 Die Plate.

• Square GMP Table Top Model, Very much Suitable for the trials of Two Layer Tablets.
• Paint free tablet manufacturing zone.
• Turret of Special Grade S.G. Iron casting
• Having Two Hopper & Single out let.
• Having Separate Layer Sampling Facility.
• Upper punch penetration, as a standard features
• Electronic Digital Tablet cum RPM Counter, as a standard features
• Inter lock Switches to all Guards, as a standard features
• With A.C. Variable Drive, as a standard features
• Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material
• S. S. Turret Guards
• Imported needle roller bearing provided at the bottom of turret.
• Anti vibration Mounts
• Reverse direction motion protection is provided to avoid accident.
• Grease Nipples are provided for effective lubrication, where required

• SS Machine Mounting Stand.
• Available with PLC with MMI & Colour Touch Screen
• 3 Pcs Turret With Electroless Nickel Plating (ENPL) & S.S. 316 Die Plate.

• The machine control the flying dust generated during the compression of tablets.
• With the use of this unit flying, dust is kept to minimum but it is difficult to eliminate entirely.
• Minimizes mechanical strain, excessive wear of tableting machine – resulting in minimum machine break-downs and punch wears.
• Provided with stainless steel S.S 304 contact parts (SS 316 Optional)
• Blower fan is dynamically balanced.
• Machine in fitted with the castor wheels for easy mobility.
• Overcome dust hazards as well as cross contamination at tablet compression.
• All inlet manifolds and dust collection trays are of SS 304
• Two inlet manifolds facilitate to connect any Tablet press machine And two for De-burring units.
• Handle type shaking arrangements for Cleanning the filter bags.
• Filter bags are of high viscose quality.

• cGMP point of view machine is provided with SS cladding on base, SS belt guards, SS cover on motor. No exposed painted surface on top of the machine. Motor rails, screws and guide rods are chrome plated.
• Beaters assembly is in a separate pillow blocks for ease in maintenance. Very less down time, as only beaters assembly will have to be reversed (and not the complete chamber) for making it knife to impact forward or vice-versa which can be done by operator.
• Swing type beaters assembly is provided as a standard supply which increases the output by 10 to 30% and is easy to clean.
• Beaters and shaft are of HCHC quality and beaters are further hardened and hard chrome plated. Beaters are fitted on a splinted shaft.
• Transmission of heat to the chamber from the bearings, is minimum, as they are away in separate pillow blocks. This facilitates to some extent in processing of heat sensitive products.
• Beaters assembly is dynamically balanced which reduces vibration and noise level and increases bearing life.
• Castors are provided for mobility and brakes can be applied for fixing machine at one place.
• Machine is available in Plain & Water jacketed model. Flame proof electrical can be provided on demand at extra cost.

We are involved in offering a wide range of Oscillating Granulator (Vertical Type) to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Oscillating Granulator (Vertical Type). Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

1. Sturdy design
2. Highly durable
3. Application specific design

We are involved in offering a wide range of Roll Compactor Machine to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Roll Compactor Machine. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

1. Sturdy design
2. Highly durable
3. Application specific design
