Welcome to FLOWTECH MEASURING INSTRUMENTS P LTD.
Level Gauge And Water Level Indicators
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6.
Available : From 1 Metre to 30 Meter
Material:- S.S.304/S.S.316/P.P./Teflon etc.
Pointer Movement:- 150mm
Brand:- Flowtech Measuring Instruments Private Limited
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
. Float & Board Type Level Indicator.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Level Gauge For Liquid Use
Product Details:
Minimum Order Quantity 1 Piece
Uses Oil, Fire /DM Water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Brand FLOWTECH
Model F_BLG-012
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge, the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Tank Float Level Indicators
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH, FLOWTECH
Model F_BLG-045,
Application Industrial
Tank Float Level Indicators
The float is designed as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board that is installed parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom so that horizontal movement of the float is restricted.
Features:
Designed as per the specific gravity
Easy to use
Multiple indicators
Applications:
Scientific laboratory
Research centres
Chemical industries
Descriptions :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design feature :
“Flowtech ”also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Float & Board Type Level Indicator.
Other Details:
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter.
Fluid Level Indicatorss
Product Details:
Minimum Order Quantity 1 Set
Brand FLOWTECH
Model F_BLG-002
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech ” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Material Of Construction :
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at
every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Metre to 30 Meter
Oil Tank Level Indicators
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLI-0523
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech ” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Water Tank Water Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLI-0225
Application Industrial
Float & Board Type Level Indicator:-
Description :-
Flowtech:- offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
The float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature “Flowtech” :-also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :-
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.:-
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter.

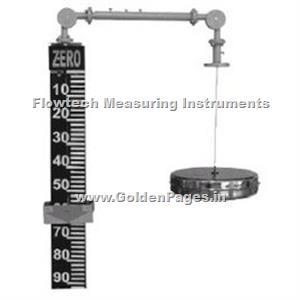

Board Type Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLI-063
Application Industrial, Laboratory
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
. Float & Board Type Level Indicator.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available in completely poly propopelene material for diluted acid storage tank.
Tank Level Indicator Float Type
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLI-0840
Application Industrial
Flowtech offer Tank Level Indicator Float Type suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge. The float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature:
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance:
Float Inside the tank raises and dales with the level of fluid this makes the pointer move one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Material Of Construction:
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Meter to 30 Meter
Fuel Tank Level Indicators
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLG-0211
Application Industrial
Flowtech offer Fuel Tank Level Indicators suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge. The float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature:
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance:
Float Inside the tank raises and dales with the level of fluid this makes the pointer move one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Material Of Construction:
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Meter to 30 Meter
Level Indicator Float Type
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model F_BLG-078
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature:
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
. Float & Board Type Level Indicator.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Water Tank Level Indicators
Product Details:
Minimum Order Quantity 1 Piece
Range From 1 Metre to 30 Meter
Brand FLOWTECH
Model FBLI-144
Application Industrial
Float & Board Type Level Indicator:
Description:
“Flowtech”offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. This gauge is also applicable to cone roof, float roof, floating roof, under grand tanks etc. The Specific Gravity of the fluid should be more than 0.6(Free Flow) This level gauge wonks on the principle of buoyancy. The whole unit consist of two type of parts. Viz wetted parts & Non-wetted parts. Wetted parts are those which comes in contact with the liquid e.g. Float anchor plan float guide wire etc while. Non-wetted parts are the one which do not come in contact with the liquid e.g. Float wire, Mountain Breakers indicator pulley, pulley hosing scale, indicator etc. The Float is available in different material S.
S.304/S.S.316/P.P./Teflon etc. In this level gauge, the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 5 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Features:
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance:
Float Inside the tank raises and deals with the level of fluid this makes the pointer move on the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Salient Features:
(a) Simple,low cost and reliable level gauge.
(b) Wetted parts available in SS304 / SS316 / PP.
(c) Suitable for installation on “tank in service“.
(d) Indicator rolls on the gauge board with the help of PVC Rollers.
(e) Can be used for the applications with volatile liquid or inert gas blanketing by using liquid seal assembly.
(f) Large numerals visible from a distance easily reable from a distance.
(g) Simple installation and commissioning.
(h) No maintenance required.
Materials of Construction :
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Metre to 30 Metre
Fluid Level Indicatorsss
Product Details:
Minimum Order Quantity 1 Piece
Range From 1 Metre to 30 Meter
Brand Flowtech
Model FBLI-918
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech ” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
. Float & Board Type Level Indicator.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Tank Liquid Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model F_BLG-059
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech ” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
. Float & Board Type Level Indicator.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Water Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLI-0163
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6.
Available : From 1 Metre to 30 Meter
Material:- S.S.304/S.S.316/P.P./Teflon etc.
Pointer Movement:- 150mm
Brand:- Flowtech Measuring Instruments Private Limited
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
. Float & Board Type Level Indicator.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Board Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLI-909
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech ” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
. Float & Board Type Level Indicator.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Water Level Indicators
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLI-0178
Application Industrial
“Flowtech” offer Water Level Indicator suitable for large non – pressurized liquid storage tanks / vessels. This gauge is also applicable to cone roof, float roof, floating roof, under grand tanks etc. The Specific Gravity of the fluid should be more than 0.6(Free Flow) This level gauge wonks on the principle of buoyancy. The whole unit consist of two type of parts. Viz wetted parts & Non-wetted parts. Wetted parts are those which comes in contact with the liquid e.g. Float anchor plan float guide wire etc while. Non-wetted parts are the one which do not come in contact with the liquid e.g. Float wire, Mountain Breakers indicator pulley, pulley hosing scale, indicator etc. The Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge, the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 5 meter height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Features:
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance:
Float Inside the tank raises and deals with the level of fluid this makes the pointer move on the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Salient Features:
Simple,low cost and reliable level gauge.Wetted parts available in SS304 / SS316 / PP.Suitable for installation on “tank in service“.
Indicator rolls on the gauge board with the help of PVC Rollers.
Can be used for the applications with volatile liquid or inert gas blanketing by using liquid seal assembly.
Large numerals visible from a distance easily reable from a distance.
Simple installation and commissioning.
No maintenance required.
Materials of Construction:
Float : S.S.316 / S.S.304 / Polypropylene
Float Wire & Float Guide Wire : S.S.316 / Polypropylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Meters to 30 Meters
Tank Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH,
Model F_BLG-014,
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech ” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - color capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Suitable for tall and overhead tanks of non pressurized and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Liquid Level Indicators
Product Details:
Minimum Order Quantity 1 Set
Brand FLOWTECH
Model FBTLI-0171
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Float And Board Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model F_BLG-066
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Fuel Oil Tank Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Application Industrial
Float & Board Type Level Indicator:
Description:
“Flowtech”offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. This gauge is also applicable to cone roof, float roof, floating roof, under grand tanks etc. The Specific Gravity of the fluid should be more than 0.6(Free Flow) This level gauge wonks on the principle of buoyancy. The whole unit consist of two type of parts. Viz wetted parts & Non-wetted parts. Wetted parts are those which comes in contact with the liquid e.g. Float anchor plan float guide wire etc while. Non-wetted parts are the one which do not come in contact with the liquid e.g. Float wire, Mountain Breakers indicator pulley, pulley hosing scale, indicator etc. The Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge, the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 5 meter height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Features:
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance:
Float Inside the tank raises and deals with the level of fluid this makes the pointer move on the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Salient Features:
(a) Simple,low cost and reliable level gauge.
(b) Wetted parts available in SS304 / SS316 / PP.
(c) Suitable for installation on “tank in service“.
(d) Indicator rolls on the gauge board with the help of PVC Rollers.
(e) Can be used for the applications with volatile liquid or inert gas blanketing by using liquid seal assembly.
(f) Large numerals visible from a distance easily reable from a distance.
(g) Simple installation and commissioning.
(h) No maintenance required.
Materials of Construction :
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Friction less Sliding On Board.
Available : From 1 Metre to 30 Metre
Fuel Tank Levels Indicators
Product Details:
Minimum Order Quantity 1 Set
Range From 1 Metre to 30 Meter
Brand FLOWTECH,FLOWTECH
Model FBTLI-089,
Application Industrial, Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Float & Board Type Level Indicator.
Suitable for tall and overhead tanks of non pressurised and non hazardous Chemical storage tanks.
A large self centered float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminums powder coated scale.
Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.
Vapors seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.
In vapour seal there is no sealing liquids so we get absolute vapour tightness.
Available : From 1 Metre to 30 Meter
Float Level Indicators
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBTLI-0821
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Material Of Construction :
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at
every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Metre to 20 Metre
Tank Level Indicator Float
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBTLI-07
Application Industrial
Flowtech offer Tank Level Indicator Float suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge. The float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature:
“Flowtech ” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance:
Float Inside the tank raises and dales with the level of fluid this makes the pointer move one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Material Of Construction:
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Meter to 30 Meter
Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLG-0112
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Material Of Construction :
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at
every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Metre to 30 Meter
Float Board Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBLI-0913
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech ” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Material Of Construction :
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at
every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Metre to 30 Meter
Float And Board Liquid Level Indicator
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
Model FBTLI-06
Application Industrial
Float & Board Type Level Indicator
Description :
Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc. In this level gauge,
the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.
Design Feature :
“Flowtech” also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.
Performance :
Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.
Material Of Construction :
Float : S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire : S.S.316 / Poly Propylene
Pulley & Pulley Pin : M.S. / S.S.304
Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at
every 10CM and Red Marking at Every Meter.
Anchor Plate : M.S / S.S.304 / S.S.316
Scale Bracket (T) : M.S. / S.S.304
Pointer : M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available : From 1 Metre to 30 Meter
Our Vision
* To embrace new technologies and methods. * To give unsurpassed products and services to the clients. * To constantly look for improvement and changes.
