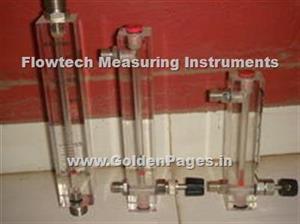

Acrylic Body Rotameter With Valve
Product Details:
Minimum Order Quantity 1 Piece
Brand FLOWTECH
DESIGN FEATURES:
Suitable for water, saline water, air N2 H2 and natural gases
Adjustable Low & High Flow , switch
FRP Coated body for corrosive plant
TC joint connection
Available from 15 NB to 100 NB
pipe size and ranges between 30 to 40,000 LPH of water at ambient temperature
Accuracy=2%FSD
DESCRIPTION:
“FLOWTECH” Acrylic Body Tube Variable Area Flow Meters (Rotameters) are intended for general in line metering applications (i.e. for Gas & Liquid) where operating conditions are with the limitations of Acrylic Body metering tubes. These are the principle of Variable Area. The float moves freely up and down tapered Acrylic body Tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The Vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.
PRINCIPAL OF ACRYLIC BODY ROTAMETER:
DESCRIPTION:
“FLOWTECH” Acrylic Body Tube Variable Area Flow Meters (Rotameters) are intended for general in line metering applications (i.e. for Gas & Liquid) where operating conditions are with the limitations of Acrylic Body metering tubes. These are the principle of Variable Area. The float moves freely up and down tapered Acrylic body Tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The Vertical position of the float as indicated by scale is the measure of the instantaneous flow rate.
