ERCON ( CFRP ) Pultruded Carbon Fibre Laminate for Retrofitting of structures

ERCON Pultruded Carbon Fibre reinforced (CFRP) Plates, used to strengthen existing structural members. These ERCON Plates provide additional reinforcement that strengthens and stiffens existing structure. Unlike Steel Plates, ERCON Carbon Laminates are light weight, easy to install and does not corrode. These Plates can be used in surface mounted applications where it is bonded onto the surface of a structural member where these Carbon Plates are installed in shallow grooves cut into the existing structural member. The Plate is bonded using Epoxy Resin specifically suited for the application. The final result is an externally bonded reinforcement system offering an outstanding long term chemical and mechanical properties.

ERCON GRP/FRP Cable Trays and GRP Cable Ladders are manufactured on a fully automatic Pultrusion Plant. The material is covered with a resin rich surface veil providing it maximum Chemical and U.V. resistance. Ercon cable trays meet stringent Fibre Retardancy requirements.

ERCON manufactures Pultruded Fiberglass Gratings in Isopthalic Polyester Resin as well as Vinylester Resins. ERCON FRP GRP gratings are suitable for corrosive chemical and offshore applications and are available in custom panel sizes.

COMPOSITE POLES

Non-Corrosive
Architectural Colours
Light Weight
Telescopic
Tiltable
Long Life

ERCON ROOF TOP

Fiber Glass Module Support
1Kw: Layout 1x 4 – 250W Panels
6kW: Layout 2 x 12 – 250W Panels
Custom sizes are also available.


ADVANTAGES

Light Weight - hence reduces weight on roof.
Easy to install on factory sheds, inclined roofs, RCC roofs etc.
Ideally suited for hilly Regions, Deserts and Coastal areas.
Suitable to withstand strong winds & are U.V. resistant.


ERCON FLOOR MOUNTED

PV Module Support

Portrait Layout: 8 x 3
Landscape Layout: 4 x 12
Custom sizes are also available.

Ercon FRP Hand Rails are designed for quick and easy assembly. The system can be prefabricated in large sections and shipped to the site or fabricated and installed on site with simple hand tools. All connections are very easy to make. Special adjustable angle connectors in GRP are available for installation on circular tanks. Complete accessories are available for installation and making joints at turns. Assembly details are shown below

ERCON FIBRE GLASS LADDERS & CAGE LADDERS - - SAFE - STRONG - NON CORROSIVE

FRP/ GRP Cage Ladders are used for climbing up/ Down the
Columns and Towers in Chemical Plants,
Cooling towers,
DM water plants ,
Refineries,
Petrochemical Plants,
Power plants .
Sewages
Escape ladders

FEATURES

ERCON GRP Cage Ladders are made from all composite parts minimising metals thus minimising Corrosion.
It is easy to assemble at site , the ladder is supplied in 3 type of components Ladder, Cage and stringers which are easily assembled at site using SS clamps and Hardware.
The ladders can be supplied for any height requirement with intermediate extension couplers.
The cage spaced approximately 1m to 1.5m, the clamps are to be put every 1.5m to 2m.
Inside clear width 350mm
Rung Spacing : 300mm
Walk Through Tops made to order


ADVANTAGES

NON- CORROSIVE hence more safe than metal ladders
STRONG suitable for 500Kg load at any rung
ACID RESISTANCE good resistance to acids and corrosive chemicals available ( passes 100 days 10% Sulfuric Acid Resistance test)
Easy to assemble quick assembly components for ease of assembly at site
UV resistant Meets ASTM and IS tests for accelerated weathering, special coating available for 25 year UV life
Fire Retardant special fire resistance grade Meets ASTM -E84, and UL 94 V0 Flammability test

ERCON FIBRE GLASS CROSS ARMS

ERCON FIBRE GLASS CROSS ARMS
MADE FROM HIGH STRENGTH PULTRUDED PROFILES
NO BIRD FAULTS & NO CORROSION
U.V. RESISTANT
LIGHT WEIGHT
IDEAL for Coastal and HILLY Locations

MEET SPECIFICATIONS

•   ANSI-A14.5-92, Cl-7.10.1AND Cl-7.10.2
•   MEETS LOADS AS PER EN-131--140Kg
•   IS4571-1977-Load test and sway test

LIGHT WEIGHT AND SAFE FIBRE GLASS LADDERS

ERCON Fibre Glass Ladders are very safe for High Tension Electrical maintenance. ERCON CLIMB SAFE LADDERS are manufactured from high strength Pultruded FRP Side Channels produced on a fully automatic plant.
These channels have high insulating properties 25KV/inch, high mechanical strength. The ladders have serrated antiskid fiberglass Rungs/Steps; hence ERCON ladders are 100% electrically safe and better than ladders using Aluminum rungs.

VERSATILE

ERCON Fibre glass Lattice Masts are perfect for
Airport Frangible Lighting System
Wind Direction Indicator Mast
Wi-Fi - Wi-Max -Telecom towers


PROPERTIES & ADVANTAGES

FRANGIBLE: Meets ICAO part 6 Frangibility and Annex 14 norms
FEATHER LIGHT: Virtually NO LOAD ON BUILDINGS /ROOF TOPS
Strong as steel- withstands high wind pressures and Jet Blast
Self Standing: No Guy Wires- less space requirement
Low Foundation Cost
Electromagnetic Transparent
All Weather Resistant- coastal,desert or Snow
Easy and Quick to Install - Very easy to transport to Heights / Hilly regions
Low Energy Consumption
Fast deliveries
Looks Aesthetic and Elegant

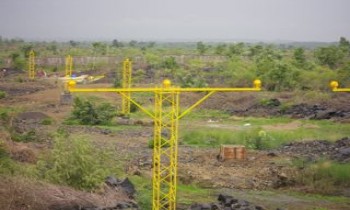

FRANGIBLE LIGHT MAST

AS APPROACH LIGHT NEAR AIRPORT

ERCON Fiber Glass Lighting Masts are light weight but structurally very strong in design. It is Frangible meeting Annex 14 & ICAO Part 6 Frangibility Criteria. They are available in various lengths and suitable for Airport Lighting or Telecom Antennas on top.

Due to its very light weight it requires no verification of Building structures required to install these towers. It comes in Height of 3-20 metres in prefabricated modular sections in 3m/5m /6m Lengths complete with assembly Inserts and couplers and base mounting for roof top or ground installation and can be just lifted by few men in place. Specially designed base structure is available for Roof Mount and for ground foundation mount designs. Hinged base Plate is also available for easy maintenance. ERCON is known for high quality Standards. It provides quality services from engineering and Design to Custom orders and prompt delivery. ERCON delivers more than products and supports, it delivers Results.

GLIDE PATH MAST DESIGN CRITERIA

ERCON Glide Path Masts have been developed to comply with the ICAO annex 14 Volume-I, for safe and precise aircraft landing and the most recent Frangibility stipulations Detailed in ICAO Aerodrome Design Manual Part6.

All ERCON Glide Path Masts are manufactured from glass fiber & special Polymeric Resin, Coated with a UV resistance PU coat that can be colored to any aviation specification. Each pole has a unique Frangibility by design and material construction system incorporated within the main mast which will break under the impact of an aircraft.

The Glide Path Antenna is attached to the mast by mean of a light weight mounting frame and can move in horizontal and vertical direction within standard range for antenna adjustment.


ADVANTAGES OF ERCON GLASSFIBER MAST

Maintenance free mast
UV resistance PU coat finish
Corrosion free
Temperature/Weather resistance
No electromagnetic interference
Full Scale Frangibility tested as per ICAO Part6 Frangibility, Aerodrome Design Manual.
Frangible Glide Path Mast
Glide Path Masts have been developed to comply with the ICAO annex 14 Volume-I, for safe and precise aircraft landing


GLIDE PATH MAST DETAIL

All Glide Path Mast are manufactured to meet ICAO requirement for size, material and color. Client Specific colors can be provided and all colors used are designed to give maximum contrast with their background.

RECOMMENDED GLIDE PATH MAST SIZE

Standard Mast Height is 15 to18 meters available 16.5 to 18 meters is also available.

COLOR (Standards)

Red & White (other color as per requirement can be supplied)

TECHNICAL SPECIFICATIONS

The maximum deflection of mast structure is below 140 mm at wind speed of 140km/hr.
The Mast structure survives at wind speed of 210km/hr
No permanent deformation of Mast structures as a result of Wind Load.
Full Scale test certificates and video available on request.

Another revolutionary new product from ercon parmanent-durable-tough Yellow line solution for all in-plant and outdoor apllications

PROPERTIES

Durable & Tough No Repainting Headches
Tapered Edges- No obstruction to pedestrian ant trolley movement
Pre-Drilled Holes- For fixing with Anchor Fastners.
Easy to Install And Fix- Less Consumptionof time in work areas
Pedestrain Safety- No Slips or Falls easy to walk over
Designed for Long Life- Less Maintenance
Contrasting Colour- Available in Yellow & White

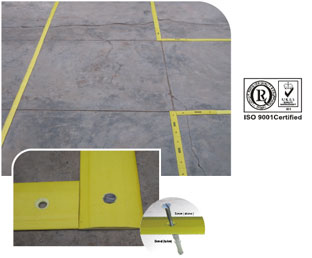

Ercon Yellow Line eliminates repeated painting of the yellow marking lines in the plant areas. This revolutionary new concept provides virtually permanent high visibility yellow line which replaces the painted lines in the areas where paints easily wears or just fades away. It comes in 50mm and 100mm width in 3mm standard lengths with pre-drilled holes for easy fixing with the wooden screw with plastic dowel inserts in the flooring .
Ercon yellow line is provided with safety tapered edges to prevent any trippling hazard. Virtually Indestructible fiber glass line marking for heavy wear and constantly high trafficked areas.

No more efforts required to prepare the surface, masking off and dealing with wet paint.

ERCON introduces high strength, Corrosion resistant and Feather-light GRP trench covers as a value replacement for RCC, Steel or Aluminum trench covers. Ideal for covering both Indoor as well as Outdoor Cable Trenches.

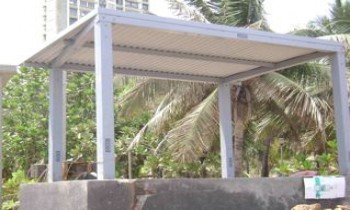

ERCON FRP Sections such as Rods, Flats, Angles, Channels, Beams, H-Sections, I-sections, Square and rectangular hollow tube sections, Round Tubes, Studs and Nuts are used in making Non -Corrosive Industrial structures such as Walkway Platforms, Staircase, Crossover Bridge ,Support etc. A range of FRP / GRP fiberglass Sections are available in Polyester and Vinylester Resins for various structural applications

FRP / GRP FIBERGLASS TOOL HANDLES

Sections in various Oval and Round Shapes and Sizes are available for Various Tool Handles for Agricultural Implements, Hardware Implements etc. Sizes and shapes as required can also be developed.

OTHER GRP PRODUCTS

SCAFFOLDING SYSTEM

From Ercon Pultruded GRP/FRP Pipes & Tubes

MOORING WHIPS

ERCON PULTRUDED Rods are also being used as Mooring Whips for anchoring boats to the coast.

ERCON FRP RE-BAR

Pultruded GRP Rebars is ideal for Reinforcement in Cast Resin Electroplating Tanks for Copper Smelters etc. Also being Electromagnetic Transparent they are ideal for reinforcement in Cement Concrete structures for housing Telecommunication Equipments, on the Bridge Decks and other heavy corrosive applications.

STANCHION

All Fibre Glass stanchion are used for moulding push buttons, instrument canopies etc.

ERCON FIBREGLASS DOOR FRAMES/JAMBS

ERCON Pultruded fiber glass door frames are made from latest generation of material having all the advantages over traditional wooden, Steel , Aluminium , PVC or hand moulded FRP frames available in the market. It is strong as steel Requiring no additional reinforcement like Aluminum or PVC. It comes with complete composite fixing arrangement for making the corners as well as for fixing the Hinges And the Hole passes.
Colors' : It is available in few select colors' and it is easily paintable to match the Interiors of your room and it can even be polished like wood by master polishers. Ideal for Bathrooms, Bedrooms, and Utility area or any outdoor exposed area as well.
Cost: Last but not least, it is cost competitive to all the other competitive materials.

Looks Aesthetic and Elegant
Strong as steel and wood
No Termite problem
No Expansion by moisture
hence doors close easily and frames do not loosen up like wood
water and chemical resistant
Weather Resistant
Fire Retardant PROPERTIES & ADVANTAGES
Easy and Quick to Install by Do It Yourself Kit
colors : available in variety of colors
paintable : easily paintable to match interiors
fast deliveries
