Description / Specification of Bench Polishing
We are involved in offering a wide range of Bench Polishing to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Bench Polishing. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
Description / Specification of Flexible Shaft Polishers
We are involved in offering a wide range of Flexible Shaft Polishers to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Flexible Shaft Polishers. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
For polishing of all kinds of Metallic Pipes & Rods from 10mm to 50 mm diameter. The job is fed forward by a three speed variable Cork feed wheel of 184mm dia x 76 mm which rotates the job at correct speed. The feed wheel has a ½ hp Motor. The larger contact wheel is of 304mm dia, 76mm width and 28.57 mm above. This is loaded with an Emery Belt, which serves for Polishing. The Machine is fitted with a foot pedal for releasing the job from Polishing.For polishing of all kinds of Metallic Pipes & Rods from 10mm to 50 mm diameter. The job is fed forward by a three speed variable Cork feed wheel of 184mm dia x 76 mm which rotates the job at correct speed. The feed wheel has a ½ hp Motor. The larger contact wheel is of 304mm dia, 76mm width and 28.57 mm above. This is loaded with an Emery Belt, which serves for Polishing. The Machine is fitted with a foot pedal for releasing the job from Polishing.
This consists of a Bowl or Tank shaped Unit to hold Polishing media (chips or balls), water & other Chemical compounds. This unit is mounted on a strong frame. The articles to be polished are vibrated at a suitable amplitude and frequency and roll over each other to achieve suitable deburring, descaling, radiusing, & finishing as required. This machine is far more effective & faster than conventional barrels. Suited for intricate & delicate components. Recommended for jewellery applications. Different sizes available.
This is an Octagonal M. S. Barrel mounted on C I frame coupled with stout tie bars. It is rotatable, and is powered by a 1 H.P. Geared motor. The standard unit is of 20-kg capacity and has size of 432 mm x 558 mm x 545 mm depth. Other sizes are also available. Lining of the Barrel with Rubber, PVC or Wood can be done as per requirement.
This is a Heavy Duty Hexagonal Barrel of M.S. coupled to M.S. Base Frame. It is driven by a 1 HP Geared Motor using V Belt. Popular size is 40 kgs with dimension 24†x 15†A/F. The Barrel can be lined with Rubber, Wood or PVC as required. Other sizes are also available.
Appropriate liquid is poured in the tank for removing specific contamination. Heating if desired also incorporated. The job is loaded on jigs. Fixtures, Wire, Baskets or any other convenient method and immersed in tank for prescribed time. Single stage Ultrasonic Cleaning system is useful with Neutral or Alkaline liquid. Acidic solution to be used with special arrangements.
This consists of two chambers such as ultrasonic chamber and vapour degreasing chambers. Degreasing solvent is poured in both the chambers and electrically heated. The temperature is arrested by thermostats. The job is loaded on basket of fixture and immersed in ultrasonic chamber for ultrasonic cleaning and then transferred to vapour degreasing chamber.
The equipment consists of HEATING ZONE, VAPOUR ZONE, AND CONDESING ZONE.
The main tank is fabricated from M.S. Plate, and is metallized with metal zinc inside, the outside surface of heating zone, and vapour zone is insulated with insulating materials covered with M.S. Sheets.
The heating zone is provided with bottom heaters to transfer the heat efficiently.
A quick opening main hole is provided at the bottom lid with drain valve.
The condensing zone is provided with water-cooling coils made of copper pipes with inlet. A water cooling Jacket is also provided on the outside to get the efficient condensation of the vapour. A condensate collecting trough is provided to catch the condensate, and deliver the same to the water separator.
We can fabricate Tanks from Polypropylene & PVC according to your desired size. These tanks would be provided with suitable reinforcement along the sides to prevent bulging. Common usage of Polypropylene / PVC Tanks is Pickling, Silver & Gold plating, Electroless Nickel etc. Polypropylene Tanks are also good for smaller capacity Modular Systems such as Electrophoretic Lacquering.
These Tanks can also be offered with higher thickness and with M. S. Frame for Nickel, Acid Copper.
We offer complete range of double welded metal tanks of any capacity. These tanks are suitable for Electroplating, Anodising, Phosphating, Electropolishing, Picking and other Processes.
These tanks can be fabricated from M.S. or Stainless Steel. They are painted externally with acid & alkali resistant Epoxy Paint.
We also offer lined Metal Tanks to suit your Application. Lining of semi hard Rubber, Lead, Antimonial Lead, Polypropylene, PVC, PPGL, etc can be done internally for various applications such as Nickel, Chrome, Sulphuric Acid, etc. Fiberglass lining can be done internally & externally.
These Barrels are designed for bulk or large volume plating, typically for hardware or such articles. These units are designed for quick and efficient handling of materials.
These Barrels comprise of a M.S. Tank lined with suitable lining material and fitted with Polypropylene perforated Barrel, bearings, side panels and gear rings. All these remain inside the Barrel.
The Barrel can be raised out of the Tank by a hand operated pinion sector mechanism. The plated parts are emptied out conveniently through a Funnel into a Bucket placed on a side rest. The Barrel is counter balanced to minimize the lifting effort. Cathode contacts are of flexible type, designed to give effective current distribution and to be easily removable for stripping.
Hanger Model EPB-H
This comprises of a Barrel of Polypropylene/Perspex of size 11 ½ “x 6†approx and is suited for a load of 3 to 5 kgs. The unit is ideally meant for usage with a Tank of size 2’ x 2’ x 2’.
The unit is powered with a 12 Volts D. C. Geared Motor Power is provided to the Motor from the Cathode Rod of the Tank by connecting the Terminals of the Motor.
These types of Barrels are used for plating small parts where standard Barrels are not possible, and Tanks are also not practical.
The Barrel is Octagonal in shape and of M.S. lined internally with rubber. It is rotatable and is fitted with a Geared Motor of A.C. Supply.
These can be used for Copper, Brass, Cadmium, Zinc, Tin, Silver & Nickel Plating.
These are highly efficient and robust Filter Units, suitable for most general plating solution with the exception of CHROME.
The Unit consists normally of a Motor driven polypropylene pump with a mechanical seal or a Magnetic Drive Sealless pump, connected to a Filter chamber made of Polypropylene or M.S. lined with PPGL and containing a Filter Stack. The Filter Stack comprises a S.S. 316 or P.P. central pipe, a set of P.P. Filter Discs with Filter Cloth and Filter paper. The Filter Stack is easily removable from the chamber and needs to be cleaned regularly. A pressure gauge is provided, which indicates when the stack requires cleaning.
The whole unit (excepting mini unit) is mounted on a trolley for easy movement. The unit is suitable for acid and alkaline solutions having temperature upto 70 degree centigrade.
Activated carbon or Filter aids can be used in these Filter Units. The filter unit is provided with Suction and Delivery hoses.
Description / Specification of Twin Chamber Filter Unit
We are involved in offering a wide range of Twin Chamber Filter Unit to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Twin Chamber Filter Unit. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
In this Unit, a Magnetic Sealless Pump of higher capacity is coupled with a Chamber of Polypropylene. The Filter Media consists of a Filter Stack comprising Polypropylene Discs, P. P. Filter Cloth & Filter Paper. The unit is mounted on a Trolley for convenience. The Unit can be suitably modified to increase / decrease the number of Discs. Pump capacity can also be suitably modified.
In this Unit, a Magnetic Sealless Pump of higher capacity is coupled with a Chamber of Polypropylene. The Filter Media consists of 4 nos of Filter Cartridge of 20” length. Unit is mounted on Trolley. Different combinations of Cartridge size & Qtys can be offered with suitable Pump capacity based on Customers requirement.
These units comprise a Filter chamber made of polypropylene, and a Magnetic drive Sealless Pump. The chamber is fitted with cartridge type Filter elements. The size of chamber and the number of cartridges as also the pump used depends on capacity desired. The following are normal ranges available.
These blowers consist of a dynamically balanced impeller, which revolves in as stator-cum compression chamber having very fine clearances between them. The impeller is fitted directly on to the motor. Both the suction and pressure openings are located on the outer periphery of the stator to reduce impedence to the air flow thereby developing vacuum and pressure.
Feature:
•
No lubrication is required since there is no friction and hence the air is absolutely oil free.
•
Practically nil maintenance cost.
•
Extremely compact unit and can be mounted inside the machines.
•
Silencer ensures low noise.
This is a rotary air unit, complete with air vessel, fitted with safety valve and water level indicator. It provides clean, water washed air for agitation and does not require oil for lubrication. It is kept cool and lubricated by the circulation of water. On account of this, danger of contamination of plating solution with atomised oil of air is avoided. The air receiver vessel is hot dip galvanised to resist against rusting.
A. C. INPUT
Rectifiers are designed to work off 415 V AC nominal 3 phases, 50Hz supply and are suitable for a range of 375V to 415-V. Units of very small capacities namely 8V/12V/16V and upto 100 Amps can also be supplied to work off the input voltage of 240V AC nominal 1 phase, 50 Hz supply.
D. C. OUTPUT
The D.C. output is continuously adjustable from 0 to full rated value, from no load to full rated current, over the input range described. All the 3 phase units are having a low ripple of approx. 5% and as such are suitable for any kind of metal finishing.
MAJOR COMPONENTS
The units are assembled with high quality materials, and the components are manufactured to relevant specifications as follows:
These Rectifiers are normally in the range of 10 Volts / 10 Amps or upwards till 10 Volts / 50 Amps output. These are single-phase models with Digital Meters. These are Air Cooled. These can be provided with Timers, CV, CC features. It is also common to have an Ampere Minute meter with a Totalizer.
These dryers are of solid construction with a strong & heavy base of Casting. The Body is of sheet metal. The Flywheel and the Perforated Basket are balanced to reduce vibrations. Heating is provided with Elements, which can be easily replaced. The lid is interlocked with the Foot Pedal, which cuts off power supply to the Motor & Heaters.
Description / Specification of Bottom Empying Dryer
We are involved in offering a wide range of Bottom Empying Dryer to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Bottom Empying Dryer. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
testing the quality of Electroplated deposits and of determining the effects of different variables over a wide current density range, temperature, bath composition, addition to the Plating solution or of purification treatment etc.,
The Apparatus consists of:
1) Perspex Chamber of 267 ml. Capacity.
2) Air Agitation pipe with Air Bubbler.
3) Built - in heater with Thermostat Controls.
4) DC supply by Lab Rectifier.
5) Polished M.S./ Brass Test Panels.
6) Anode pieces of Electrolyte.
7) Timer 0/60 Minutes (Manual)- (Optional
In the Salt Spray Apparatus Chamber articles are exposed to a mist of salt saturated air produced by spraying common salt solution into a closed cabinet. The articles are positioned so that they are exposed to the mist produced.
The Apparatus consists of:
1)An acrylic mist chambers that’s non-corroding.
2)A compressor for compressed air supply to chamber.
3)Atomizing nozzles for mist formation.
4)A specimen supporter.
5)Heater with temperature controller. (optional)
The presence of an acid radical such as sulphates in a Chromium Solution is a basic requirement, which makes deposition of Chromium possible. Sulphates act only as a Catalyst and are not consumed in the reaction. However, a loss is encountered due to drag out of solution, and throwing power is critically affected.
The Sulphate estimation kit provides the quickest and simplest method for estimation and control of Sulphates with accurate results. The kit is easy to operate. Directions are easy to follow. Solutions are clearly indicated. The Kit, as illustrated, is complete with:
Digital pH Meter is a simple direct Indication Instrument, which measures pH. pH is an important measurement in Electroplating
We offer:
Laboratory pH Meter:-
This is Table Top model with pH Electrode, Stand etc and 3.1/2†Digit Display. Resolution is 0.01.
Portable pH Meter:-
This is a pocket model with 0.1 Resolution and lower accuracy, but with convenient handling as it has built in electrode. Measurement is possible in process itself.
Digital type Ampere-hour meter is for electroplating battery forming, battery charging, chemical industries, R& D Laboratories. The main advantages are
a)Efficiency of plating batch can be computed.
b)Savings in expensive electrolyte, anode and energy.
c)Exact control of plating thickness
d)Improved and consistent quality of plating
e)Simplification of job-work costing.
f)Very quick payback.
These are Units with Digital Temperature Indicator cum Controller. They are mounted in a Acid / Alkali resistant PVC / Polypropylene Body with suitable gasket to prevent fumes inflow into the body. The Units are complete with a PT 100 type Sensor which can be installed in the Plating Vat using Titanium or Glass Tubing. The Units are easy to install and maintain.
1) Red Compositions
This is used for quick cutting and for fineness in Polishing.
2) Green Composition
This is used for finishing of Stainless Steel and for achieving better Chrome finish on Chrome Plated items.
3) S.S. White Composition
As the name suggests, it is normally used for cutting and polishing of Stainless Steel, particularly Cutlery and Utensils. Also used for finishing dull chrome deposits.
4) Emery Composition
Black This is used for finishing of ferrous components. This composition helps to remove scratches and for final finish of Iron and Steel items prior to Nickel Plating.
5) Rouge
This is used for finishing of Brass Articles and also for finishing of Gold, Silver items.

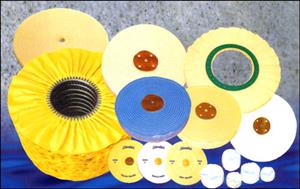

Description / Specification of Polishing Mops
We are involved in offering a wide range of Polishing Mops to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Polishing Mops. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
Description / Specification of Robotic Dipping Tank
We are involved in offering a wide range of Robotic Dipping Tank to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Robotic Dipping Tank. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
Description / Specification of Washing Machine
We are involved in offering a wide range of Washing Machine to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Washing Machine. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
Description / Specification of Oven
We are involved in offering a wide range of Oven to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Oven. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
Description / Specification of Cutlery
We are involved in offering a wide range of Cutlery to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.
We introduce ourselves as an eminent trader and supplier of an extensive array of Cutlery. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:
Sturdy design
Highly durable
Application specific design
