[TRIO MODEL TENSILE TESTER SUITABLE FOR FIBC (YARN/FABRIC/SAFETY BELT)]

This trio model suitable for FIBC and equivalent application.
Machine having a facility of three load cells.
All the load cells are separate and permanently fitted. Load cell range 50kgf for Tape/Yarn, 500kgf for Fabric, 3000kgf for Safety belt.
Suitable standards are as per IS, ASTM, ISO or other equivalent standard.
Mechanical wise type grips provided with the machines. Special grips or Pneumatic grips also provided with the machine as per customers' requirement.
(kindly specified at the time of placing order), for safety belt mechanical roller type grip provide.
Variable Speed range 50 to 350mm/min.
DSH's most success user friendly windows based software connectivity facility.

[UV CHAMBER]

Machine design and construction as per IS:7903 only (No ASTM method incorporate)
Machine having facility for condensation and UV cycles.
UV B tube lights are used for the UV cycles
DSH'S indigenous microprocessor system with complete auto test cycles.
Construction of machine is inside stainless steel and out side mild steel with powder coating.
Complete stainless steel body also possible on demand.
At the same Time 10 nos Sample Can Be Conditioning.
Power supply: 230volts ac with proper earth connection.

Digital burst tester suitable for corrugated box, fabric, laminations
Machine as per IS and ASTM D-3786
Machine maximum capacity will be up to 60bars. (machine capacity selection according to the application)
Digital pressure indicator LCD based with least count of 0.01bar.
Fluid displacement into chamber with motorized.
Last test result is stored.
Firmly secure clamping.
No need for calibration with help of aluminum foil because of digital model.
Long lasting diaphragm with proper standard.

[MUFFLE FURNACE FOR FILLER]

Machine is suitable to find out filler content of calcium.
Maximum temperature range up to 950°c  or 1200°c.
Silica crucible, glass desiccators and other test conduct accessories
Machine having a facility with electrical burner.
power supply single phase.

Machine is used to conditioning of the samples at specified temperature as well as specified humidity.
Humidity range 50% to 95%.
Temperature range 20°c to 45°c
Suitable standards are IS, ASTM or other equivalent standards.
Machine suitable for Pipes, woven fabrics, woods, flexible pouch for food grade
Humidity indication and Temperature indication digital
Standard size of chamber is :18”x14”x22”inches other customized sizes also available
Machine having facility of boiler and condensation.
Wheel base machine for easy movement
Full length of glass door for inspection of samples.

Machine is suitable to find out denier of the textile material.
Machine having a facility of motorized system.
Machine will be stopped automatically at the settable length.
Reel having a diameter of 1meter.
Length counting digitally.
Machine is powder coated and rotating parts are highly polished chrome plated Power supply single phase.
At the same time 4lease can wrap.

[HOT AIR OVEN]

Oven chamber size: As per requirement.
12"x12"x12inches, 14"x14"x14inches, 18"x18"x18inches, 24"x24"x24inches, 36"x36"x36inches or customized size as per requirements.
Temperature ranges up to 200°c. Least count 0.1.(Higher temperature range on requires)
Temperature accuracy ±0.5°c.
Temperature controlling via PID controller and also in built auto-tune facility.
Oven design construction to minimize heat losses.
Body construction out side MS and inside SS.
Fan circulating and stirring facility to maintained uniform temperature into oven.

Machine suitable for Tensile testing
Suitable standard IS:2508, ASTM D-882, ASTM D-1895, ISO or other equivalent standard
Universal machine having testing facilities of TENSILE, ELONGATION,SEAL STRENGH,
PEEL STRENGH(45°,90° & 180°), BOND STRENGTH, CO-EEFICIENT OF FRICTION(COF) Suitable machine capacity up to 100kgf
Load accuracy 2gms or better.
Computer interfacing facility with new version of DSH'S most advance and easy to operate software.
Report generating and test method generating customized or according to the reference standards.
Fixtures: wide range of DSH's fixtures suitable as per your application.
Suitable for LDPE, BOPP, STRECHFILM, LLDPE, GEOMEMRANCE and other applications.

Machine on based of pneumatic operating system.
Temperature zone : two
Temperature is controlled via PID based Auto tune temperature controller
Temperature range: ambient to 200°c (Extra on request at extra cost).
Temperature least count 0.1°c with accuracy better than ±1°c.
Pencil type air heaters are fitted on the both temperature zone.
Heating jaws: One jaw is fixed and another jaw is operated with help of pneumatic system.
Jaw width 25 & 15 mm & length 100 mm.
Machine is table top compact model suitable for laboratory environment.
Power requirement: 220volt AC with proper earth + 15Amps.
Other requirement: Moisture free compressed air ¼” connection with pressure range 4-6kg/cm².

Scientifically designed to provide excellent vacuum & temperature performance.
High reliability & low leakage rate.
Toughened glass door for viewing.
0 to 760 mm of Hg Vacuum.
Temp. Range: Ambient to 1300°C.

Cabinet working size: 25”x20”x15” inch. Or as per requirements
Different light source fitted into the cabinet
Digital Hour meter fitted on to the panel with automatic and manual mode for light selection.
Power supply: single phase with proper earth connection Table top model.

• Machine suitable for find out Impact properties of materials.
• Suitable standards are IS: 2508, ASTM D-1709, ISO 7765.
• Machine having a specimen clamping with help of pneumatic system.
• Machine supplies with Darts & weights set accordingly reference standards.
• Height also adjustment according to the standards or film thickness.
• New modified Dart release mechanism load carrying capacity up to 3kgs.
• Machine fully powder coated.
• All weights and rods are highly polished SS or Aluminum.
• Two size of darts are supplied with three different Heights

Machine suitable for COF (SLIP) value of your finished materials.
Suitable standards are IS: 2508, ASTM D-1895, ISO or other equivalent standards.
Direct results of STATIC COF as well as KINTEC COF with help of software support.
Machine load accuracy 1gms or better. Extension Least count 0.01mm
Vibration free friction easy to operate design.
Test required standard accessories are part of supply.

Description / Specification of Opacity Tester

We are involved in offering a wide range of Opacity Tester to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Opacity Tester. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

• Machine suitable up to Maximum 200 mm Dia. X 300 mm length Sample.
• Digital CS tester suitable for Paper core crushing application.
• Maximum working capacity up to 500Kgf. Load indication digital
• Pressure is developed with help of pneumatic systems.
• Last result (Max. Load) will be display on indicator.
• Power supply: Single Phase 230Vac, 50Hz.
• BSP moisture free air connection required at customer end.
• Machine having a extension measurement facility also provided.

Machine having different models with different pressure capacity.
All the models are work as short term as well as long term.
DSH having a Digital model and Analogue models.
All our models are air less systems; no pneumatic pumps are used for pressure development.
Pressure range up to 50bars, 100bars and 200bars. (as per customer's requirements) Our pressure tester having single station, three stations and up to eight stations.

Machine suitable as per IS:4984, ASTM D-1238, ISO or other equivalent standard.
Machine having a temperature controller and timer facility.
Machine supplied with standard tool kit and test required loads.
Additional loads are also providing as per customer's request.
Machine having maximum temperature range up to 400°c.
Temperature accuracy ±0.5°c or better.
Highly polished barrel, die and other accessories for better accuracy and performance.
Power supply: single phase with earth, table top model
Note: customer required 0.1mg accuracy weighing balance at your end

The instrument is made accordance with IS 2530,BS 2782 Part – 8, ASTM 3015.
This instrument is used to find out uniform dispersion of Carbon Black in PE Products.
Projection screen Diameter. 4 or 6”.
Magnifications 100 X, 200 X is available with instrument.
Thermostatically operated Hot Plate is also provided with the instrument.
Power supply: single phase with earth
CCD camera unit with software facility also available on demand.

• Machine is useful to making sheet for density, dumbbell cutting or other application
• DSH having a two model one is manual and another is semi automatic.
• Maximum capacity up to 20tonnes.
• Hydraulic system with temperature controller fitted on to the both patterns.
• Temperature range up to250°c with ±0.5°c.
• Cooling system also provided.
• In case of semi automatic model complete test cycle is schynchronise via microprocessor
• One piece of mold provide with the machine standard 3mm thickness.
• END CAPS
• DIGITAL DENSITY
• DUMBBELL CUTTING PRESS AND PUNCHES
• 20TONNES TENSILE FOR COLUMN PIPES

Machine design and develop as per ASTM 1693.
Equipment comes with digitally controller water bath with circulating facility.
Bath temperature is up to 100°c with 0.1°c L.c.
With PID based digital control with in built timer facility to count the time.
Stirring facility is inbuilt for uniform temperature.
Machine comes with all required accessories.
Accessories: Specimen holder / Bending clamp / Transfer tool / Blanking die Nicking die / Glass test tubes / Egypol solution – 500ml approx

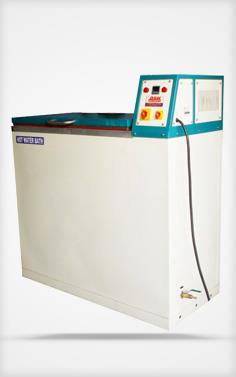

Water bath is suitable for condition purpose during pressurized condition Construction of bath inside stainless steel and outside mild steel.
Bath having a facility for uniform temperature and circulation.
Bath sizes are changeble as per customer's requirements or as per customer's finished goods material i.e pipes.
Digital temperature is fitted on to the machine.
All electrical panels are ISI mark and major components compliance with CE certifications.
DSH's specially designed heaters are used, heaters design and construction according to the bath size
Baths are design as per HOT WATER, COLD WATER, HOT& COLD WATER conditioning.

Machine is suitable for making dumbbell samples of tensile testing.
High speed anvil cutter is fitted for finishing of the samples
Vacuum system is incorporated for dust free environment.
All size of templates is available for the sample preparation.
Maximum 25mm thickness sample or higher thickness samples also possible on request.

Machine suitable for reversion test of pipes and finished goods
Bath sizes are as per your requirements.
Stirring facility available for uniform temperature.
Construction of bath is outside MS with powder coating and inside SS
ISI or CE mark electrical panel and components.

Machine as per ASTM D-256
Analogue type model suitable for IZOD-CHARPY testing.
Pendulum impact type hammer fitted to find out energy of breaking material.
Machine maximum capacity up to 15joules.
Motorized notch cutter also provide with the machine for notching of the samples.

• Machine having a analogue dial gauge, digital dial gauge or computer interfacing model
• Maximum no of stations up to 3stations.
• Machine according to IS: 4985, ASTM-1525,ASTM-648,ISO or other equivalent standard.
• ADigital Temperature controller with rate of rise free programmable as per standard requirement.
• Oil bath made from stainless steel and machine outer body from Mild steel with powder coating and immerse type heater fitted is provided.
• Computer interfacing facility with new version of DSH'S most advance and easy to operate software in case of software interfacing model.
• High power cooling system provide with all models.
