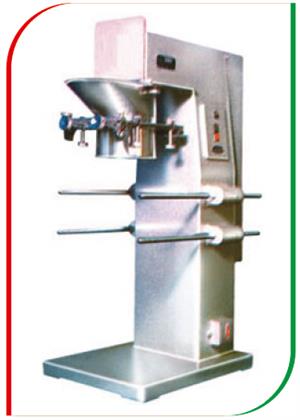

Oscillating Granulator

• STANDARD MODEL, HOPPER CAPACITY 34 LTRS. THE BODY OF THE MACHINE IS "L" SHAPED STRUCTURE SCREEN AREA 12.6" x 14.5"
• DRUM SIZE 5.4" DIA x 14.4" LENGTH
• OUTPUT 30 TO 200 Kgs/hr (APP. FOR DAMP. MATERIALS)
• 200 TO 500 Kgs/hr (APP FOR DRY MATERIALS) OUTPUT DEPENDS ON THE CHARACTERISTIC OF PARTICLE PRODUCT AND THE REDUCTIONS REQUIRED IN SIZE.
• POWER SUPPLY - 2HP, 1440 RPM 440 VOLTS 3 PHASE 50 CYCLES A.C. NET WEIGHT 250 Kgs. APPROX
• GROSS WEIGH 400 Kgs APPROX
• OVERALL DIMENSION - 32" x 18" x 49" (H)
• COMPACT & STURDY UNIT
• CGMP MODEL WITH DOCUMENTATION (IQ, DQ, PQ, OQ) - AS OPTION
