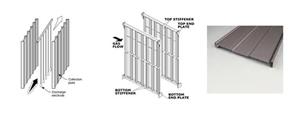

Collecting plate are important for efficiency and long-term reliable operation. collecting electrode incorporates our traditional Optimum Precipitation Zone Electrode design that provides quiescent zones to aid in particulate collection and to reduce re-entrainment during rapping. This assembly has also been found to be very dynamically responsive during rapping, allowing collected materials to be dislodged without excessive force. The collecting plates are periodically rapped by mechanical rappers to dislodge dust, which then drop into hopper below. It takes between 0.01 and 0.1 second for dust particles to acquire a change in the corona region. It is capable to remove particale size .01-10 microne ane clean efficeiency nearly 90%. Its available in different grade like IS152 grade D.

The discharge electrodes, which operate at high voltage, provide the source of electrical charge by creating a corona discharge. The discharge electrode design, its relation to the collecting plate, and the nature of the particulate and gas flow, influence the amount of corona discharge that can be applied without excessive sparking. %. Its available in different grade like IS152 grade D.

ESP Insulators for electrostatic precipitator is majorly used for high-voltage insulation and sealing of the hanging rods for the overhanging frame of the corona electrode, which is passing through the housing of the electrical field. Outer & inner surfaces of the bushing are covered with brown or white glaze, and two end surfaces being ground. They can work at temperature up to 250deg.C with working voltage classes from 72kv to 110kv, and compression failing load not less than 500kn. The inside and outside surface of porcelain casing is brushed with a white glaze or a brown glaze. 85% alumna insulators are extremely dense and will not absorb liquids or gases. They are more resistance to attack by aggressive particulates and gases.

Rappers are utilized to dislodge material from the collecting surfaces, discharge electrodes and gas distribution plates. Improper rapping can lead to spark-over and a reduction in power levels, high resistance grounds and dead short conditions, reentrainment of collected material, damage to ESP internal components and distortion of gas flow. Coils are wound from class (160) copper wire. The Migi is capable of delivering strong shearing forces to remove even the most tenacious of dusts from collecting curtains and rigid mast designed high voltage systems.

A thermostat may be a control unit for a heating or cooling system or a component part of a heater or air conditioner. Thermostats can be constructed in many ways and may use a variety of sensors to measure the temperature. The output of the sensor then controls the heating or cooling apparatus.

The thermostat does this by switching heating or cooling devices on or off, or regulating the flow of a heat transfer fluid as needed, to maintain the correct temperature.

Types

• Rectangular
• Circular
• Round
• Sizes & methods
• Sizes upto 2000mm dia, length & width.

applications of perforated sheet in cloths dryers, noise abatement components for jet engine nacelles, acoustical panels, covers for electronic and telecommunications equipment, protective guards, filtration components, hammer mill screens, conveyor flights. We can perforate up to 1250mm wide coils and 8.00mm thick in steel, aluminum, stainless, most alloys, plastics and P.V.C.

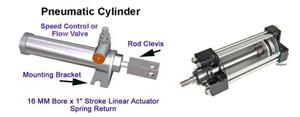

Description / Specification of Pneumatic Cylinder

We are involved in offering a wide range of Pneumatic Cylinder to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Pneumatic Cylinder. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

Our company is highly popular in the domain of manufacture, supply and trade of Hopper Heater. These Hopper Heater are manufactured using premium quality components. These Hopper Heater require low maintenance and are highly durable. Further these Hopper Heater are available in various designs, specifications and shapes. These Hopper Heater have excellent performance level and are highly used in varied industries. The supply voltage of the panel is 3 phase 415 v 50 / 60 hz. Collecting of fine particles below 10 micro meter (pm10 ) in electro-static precipitators has not been very efficient with conventional system. A new high frequency tr set was developed with a pulse duration below 50 micro-second to used it with existing precipitators the current capability had to be in the ka range.

The offered sets are used to supply high voltage power supply to electrostatic precipitation. These sets helps in supplying a smooth and ripple free high voltage into esp field using small internal capacitance of the field. These sets are manufactured with the help of high grade raw material and advanced methodology . Our offered sets are manufactured with the help good grade raw material and sophisticated technology These sets are widely used in transformers for supplying high voltage power to esp.

The system developed for MIGISCAN ESP controller for gravity operated plunger Rapper has the following block modules using embedded Processor as per client specification a. High power thyristor based (R & Y) MIGI rapper controller b. Menu driven software for complete automation setup c. MIGI rapper selection using high powered contractors d. Real time generation for real time RAPPER firing application e. Load current measurement & current feedback analysis for error table generation f. Rapper selection indication using rows & columns LED in front panel. g. Sum alarm circuitry for annunciation purpose h. Intelligent communication using RS485 MOD BUS protocol for external data transfer i. Optical isolation for all input & output data handling j. Interactive visual display for set & running parameters using liquid crystal display. k. Din rail setup arrangement for control outputs & feed back inputs & Communication o/p l. Transformer isolation for mother board circuitry & the rest of the circuitry.

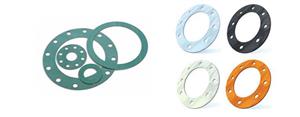

Acclaimed for high corrosion resistance, Asbestos Gaskets is offered by our firm. Made adopting premium quality ingredients and latest technology, these are extensively applicable for valves, pipeline flanges, engine gaskets, industry pumps-etc. Available in varied specifications, sizes and grades, it is professionally certified on platforms.

The thermoelectric voltage resulting from the temperature difference from one end of the wire to the other is actually the sum of all the voltage differences along the wire from end to end.

Thermocouples can be made from a variety of metals and cover a temperature range 200 oC to 2,600 oC.

Offered in varied technical specifications as per the application requirements of our clients, these connectors are manufactured using superior quality raw material and employing contemporary technology. In addition, our quality examiner conducts a series of test on this range in order to eradicate any kind of defect in it.

Features:

• Rugged construction
•
• Sturdiness
•
• Efficient working
