Low Back Pressure Modular Belt
| Material | Rubber |
| Belt Width | 40 – 100 mm |
| Belt Thickness | 5 – 10 mm |
| Features | Low back pressure |
| Brand | MOVEX ITALY |
Low Back Pressure modular belts have mini rollers embedded on top surface. This provides for low back pressure, and is useful in applications where accumulation may be common – e.g. in carton/box conveying.
Perforated Modular Belts
| Price per Unit | Meter |
| Material | PP, POM, PE |
| Belt Width | 50 mm – 1500 mm |
| Features | PERFORATIONS |
| Application Area | EASY WASHING,VACCUUM,AIR SPRAYING |
| Working Temperature | AS PER REQMT |
| Length Of Belt | AS PER REQMT |
| Brand | MOVEX,ITALY & MODUTECH,TURKEY |
Perforated (Flush Grid) Modular Belts have perforations. These are helpful in easier washing / cleaning and also in air spraying / vaccuum applications.
Raised R. I. B. Modular Belts
| Material | PP, PPX |
| Belt Width | 60-120 Inch |
| Belt Thickness | 2 – 5 mm |
| Features | Heat Resistant |
| Application Area | Beverages Packaging, Heating / Cooling Chambers |
| Brand | MOVEX ITALY |
| Color | Grey |
Movex-Italy brand Raised RIB Modular Belts.
These are used in beverage packaging applications.
Rubber Top Modular Belts
Minimum Order Quantity: 1 Meter
| Price per Unit | Meter |
| Material | POM / PP with Rubber top |
| Belt Width | 50 mm – 1000 mm |
| Features | Rubber grip top surface |
| Application Area | High friction / Inclined conveying |
| Length Of Belt | as per requirement |
| Average Permanent Elongation | Nil |
| Rubber Material Grade | Italy – high quality |
| Brand | Movex (Italy) |
| Color | Blue / Green |
Rubber top modular belts provide high-friction top surface for special applications such as:
1) Inclined conveying
2) Better grip to prevent toppling and slippage
Additional Information:
- Delivery Time: 2-3 days
- Packaging Details: as required
Sideflexing Modular Belts
Minimum Order Quantity: 1 Meter
| Price per Unit | Meter |
| Pitch | 1 INCH,1.25 INCH,and others as available |
| Chain Material | PP, POM |
| Roller Diameter | 100-400 mm |
| Load Capacity | 100-500 kg |
| Is It Abrasion Resistance | Abrasion Resistance |
| Color | Blue, White, Green |
| Brand | MOVEX,ITALY & MODUTECH,TURKEY |
Side-flexing modular for conveying application that need turning at various angles.

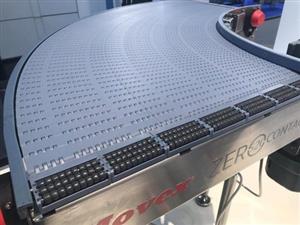

Zero Contact 90 Degree Modular Belt
| Chain Material | Plastic |
| Capacity | 1-50 kg per feet |
| Material | POM |
| Driven Type | Electric |
| Pitch | VARYING AS THIS IS ZERO CONTACT |
| Color | Blue, Black etc |
| Brand | MOVEX ITALY |
We provide MOVEX brand – Zero Contact 90 Degree modular belt & conveyor.
This is a unique concept, in which modular belt is constructed without any gaps in the link modules. The rotation is achieved by increasing width of modules depending on distance from centre of rotation.
Very useful for newspaper, magazines, boxes conveying.
M. C. C. Rexnord Modular Belts
| Pitch | 15 mm, 1” |
| Material | POM (Acetal), PP |
| Belt Width | 50 mm – 1000 mm |
| Brand | MCC Rexnord |
| Color | Blue, White, Green |
BINDAL BELTING provides plastic modular belts of Rexnord (MCC, Holland). These are available in flat-top / perforated construction and for straight / side-flexing running. Various pitch profiles are available.
Additional Information:
- Production Capacity: ready stock
- Delivery Time: ready stock
- Packaging Details: as required.
