BILZ vibration isolation (anti-vibration) pad materials are highly developed, designed to solve problems caused in many industrial sectors by vibrations and structure borne noise. Made from a precise combination of nitrile rubber, cork particles and cross linked polyester fibers, these high grade compound materials possesses excellent physical and mechanical properties.

One major advantage of these new compound materials are their resistance to modern cooling lubricants; the mountings can be used in oil sumps without any loss of their physical properties. Particularly worth mentioning are the superb “compression set” values. These are extremely important, for example, if modern machine tools are to be mounted in isolation while ensuring long term geometric position. 8 different types of pads provide the technically optimal solution to almost any vibration problem. The primary aim in the development of these vibration materials was to provide specific solution for a wide range of machinery for e.g. lathes, milling machines and grinding machines, as well as presses and feed press.

Leveling elements, Type Series BNSH
Range of application: BILZ leveling elements BNS are specially suited for the positioning of presses, automatic stamping machines automatic die casting machines etc
Examples: BNSH 120/50 means: equipped with type 50.
Application: Medium efficiency of isolation. BNSH 120/32 means: equipped with type B32.
Application: For highly effective isolation. In particular used on upper floors.

BILZ Precision Leveling Wedges are manufactured in three different models; free standing (PK Series), bolt-on to the machine (PKA eries), bolt-through to the floor, foundation (PKD Series). This design permits the highest precision leveling range, to within 0.0004" (0.01mm). Our self-locking design prevents creep from the installed position. Large support surfaces provide optimum foundation support and rigidity. Any of the BILZ Isolation materials can be bonded to the and/or bottom of the levelingwedge to provide the required vibration isolation.Machine leveling with Bilz leveling wedges is very fast and efficient, especially when compared to other machine levelers or leveling feet. The full weight of the machine can be applied directly to the leveling wedge and the leveling wedge can be adjusted to level the machine. This allows you to reduce the time needed for rented equipment such as portable cranes and fork lifts. Once the machine is set onto the leveling wedges, initial adjustments of the leveling wedges can be carried out with a torque wrench to assure that equal loading is applied to each leveling wedge. A precision machinist level can then be used to finely adjust each leveling wedge to accurately level themachine to within 0.0004" (0.01mm).

FAEBI® Product Description
Rubber air spring for highly effective isolation of machinery and subassemblies against shock and oscillation. The bell shaped component is made of high grade elastomer. The construction allows a highly effective isolation without the disadvantage of excessive horizontal deflection. It is impossible for the element to break down as a result of overloading or a sudden drop in pressure. To reduce vertical dampening, the component is available with additional attenuation, see FAEBI®-HD below. The base plate is equipped with an anti-slip pad so there is no need to anchor the machine to the floor. Note: For outdoor use (e.g. isolation of a roof top air condition unit) the FAEBI® can be supplied in a stainless steel and EPDM elastomer version.

MEMBRANE AIR SPRINGS
Wiith deep natural frequency & adjustable dampening (pat.) for vibration isolation of measuring & testing machines, optical and electronic equipment, laser machines, fine machining plant, vehicle & motor performance testers etc.

BiAir®
Product Description
The Air Spring Isolator BiAir® consists of either a steel or cast aluminum body whose air volume is enclosed by a thin-walled, flexible and pressure-resistant rolling diaphragm. The piston is seated on this diaphragm & is pushed into the air volume.

This design causes highly effective vibration isolation. In order to obtain as high a dampening effect as possible, the air space is split into two chambers (load and dampening volume) that are connected by an air tube. The amount of dampening can be easily changed by the adjustable valve located on the outside of the air spring. As the load on the air spring changes, air is forced through the bypass valve creating friction. This friction creates up to an 18% dampening effect. Additional safety valves protect the rolling diaphragm from getting damaged by over inflation.

Optimal active vibration isolation performance without any amplification at resonance.

Excellent level accuracy (+ 10 microns) in both the vertical and horizontal plane.

Minimal deflection and settling time after an acceleration or deceleration of a moving mass within the machine, shorter settling times equals greater machine throughput.

Very efficient real time control.

PLC, CAN-Bus, one Controller and one High Speed electro-pneumatic servo valve for each degree of freedom.

Each Controller consists of a microprocessor & integrated, high resolution sensors for position, air pressure & acceleration.

Easy-to-use, intelligent WinSNI-Software for setting up & optimizing the Active vibration isolation system AIS™ and for providing system diagnostics.

Two different modes of operation can be selected by simply using a digital I/O. Scanning mode (during sensitive machine operations) and loading mode (during moving mass within the machine).

Feed forward signal is not required from the machine controller simplifying setup.

No disturbing heat generation, magnetic variations or high electrical power consumption as by electromagnetic actuators and linear motors.

Product description
VITAP® - Vibration Isolated Table Top Platforms. These lightweight platforms consist of a robust, powder coated metal enclosure with either three or four integrated low natural frequency BILZ rubber air springs FAEBI® or the even lower natural frequency BILZ membrane air springs BiAir®. Platforms are available with or without a leveling system; automatic or manual leveling systems are available. Standard platforms are supplied with a granite top which provides a polished surface with high mass & stiffness.

Application / Usage
These platforms are designed for a wide range of applications with loads from 1kg to 150kg. These include visual devices, light microscopes, microscopes with CCD camera, inspection microscopes, small surface and roundness testers, lab and measurement rooms as well as semi clean rooms. They are also well suited for portable use.

VITAP®-F
Efficient BILZ - FAEBI® rubber air springs with non-return valve.

In recent years, ever higher requirements of test stands and test systems for the automobile industry have led to the need for improved performance of vibration isolation systems. BILZ air-springs with level control systems are ideally suited for this demanding application.

 BILZ services:
interpretation and supply of the vibration isolation system
supply and installation of cast-iron plates to customer's request
installations & commissioning of the vibration isolation system
During the vibration insulation of test stands and aggregates with high dyna

BILZ insulating plates are ideally suited for vibration suppression of foundations and base plates

[Stabilize Machines - Isolated Machine Foundations India] [Isolated Machine Foundation Solutions] The main purpose of the foundation is to stabilize the machine as well as to increase the moment of inertia. The foundation thus positively influences machine vibration by reducing the amplitude of oscillation. It is wrong, however, to assume that any foundation large enough would eliminate all vibration problems. It is important that as much information as possible be supplied regarding the machine to be isolated, this will include machine size and weights, any dynamic features of its operation, location including ground type, condition where optimal performance is required and a vibration analysis of the machine and site conditions. A correct isolation between machine foundation and the surrounding area will result in trouble free operation. As a result of years of experience we have the necessary experience in this field. At your request we can offer all other related services including measuring of vibrations, planning and construction design.

Description / Specification of Vibration Measurement And Analysis

We are involved in offering a wide range of Vibration Measurement And Analysis to our most valued clients. Our range of these are widely appreciated by our clients which are situated all round the nation. We offer our range of it at most affordable prices.

We introduce ourselves as an eminent trader and supplier of an extensive array of  Vibration Measurement And Analysis. Prior to dispatch, our quality controllers run numerous tests on the entire range on various parameters of quality and durability. The offered equipment is manufactured using superior quality components with the aid of sophisticated techniques at the vendors' end. Moreover, our precious clients can purchase it in different technical specifications at reasonable price from us within promised time frame.
Features:

Sturdy design
Highly durable
Application specific design

AMT Machine Fixator is a one stop solution for precise yet cost efficient installation of heavy machinery and equipments.

AMT Machine Fixators are available in two basic designs: bolt-through and bolt-on. The "bolt-through"design has a clearance hole for an anchor bolt to securely anchor machines to the floor or foundation. The "bolt-on" design comes with fasteners and is designed for free-standing installations. The "bolt-on" design also is available with a anti-skid rubber base version for vibration isolation.

AMT Machine Fixators are based on double wedge principle. This involves the use of two wedges to provide leveling, rather than one. Both wedges move towards or away from the loading centre symmetrically. Equalizing these forces around the center results in an absolute rigid and stable anchoring system. As there is equal load distribution through two lifting wedges, the force required to raise or lower a machine is halved, resulting in effortless and precision leveling.

AMT Series N neoprene mounts allow excellent attenuation of medium to high frequency vibration and noise generated from a wide range of motor driven machines particularly axial and centrifugal fans.

Series N mounts are used to isolate a wide range of equipment and can be bolted to equipment mounting holes with the supplied cap screw and washer. However it is not necessary to bolt these mountings to the floor on most installations. They can be used under flat bases that have no bolt holes in much the same manner as rubber pads. The mounting may be inverted so that the rectangular rubber covered steel base plate provides support over a large area.

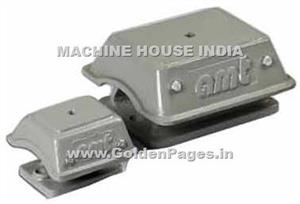

AMT C series cushy foot mounts employ the well proven inclined rubber element design to achieve much higher deflections compared to simple rubber in compression devices and therefore superior isolation of low frequency vibration.

These mounts consists of two rubber sandwich pieces housed in specially designed robust iron casting. The mountings are protected against oil, physical & mechanical damages. AMT Cushy Foot Mounts give insulation against transverse, vertical and longitudinal stiffness, vibration & reduces transmission of vibrations, structure borne noise & shock from a wide range of rotating and reciprocating machineries. These mounts have very low natural frequencies and possess good lateral stability.
