Non Metallic Pumps

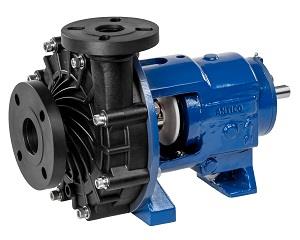

NZ Series long-coupled thermoplastic mechanical seal process pump provides the most economical, combinatorial design which simplifies maintenance, reduces inventory, is able to give a near constant head for a wide flow range. NZ pumps are injection moulded, horizontal, side discharge, back pull-out, volute casing type, single stage, end suction centrifugal pumps. MOC: GFPP | CFRPVDF
TECHNICAL DATA
| Operating Frequency | 50 Hz | 60 Hz |
| Capacity [Q] up to | 40 m3 /hr (176 US gpm) | 220 US gpm (50 m2 /hr) |
| Head [H] up to | 38 m (125 ft) | 176 ft (54 m) |
| Motor Power [P] up to | 15 kW (20 hp) | 25 hp (18.5 kW) |
| Viscosity up to | 150 mPas (cP) | |
| Suction Lift | 8 m (26 ft) with priming chamber* | |
| Maximum Working Pressure | 10 bar (145 psi) | |
| Maximum Specific Gravity [SG] | 1.8 - 3 | |
| Minimum Continuous Flow [MCF] | 2.5 m3 /hr (11 US gpm) | |
| Maximum Temperature | PP-H : 82°C (180°F), GFRPP : 90°C (194°F), PVDF : 104°C (220°F), ETFE : 121°C (250°F) | |
| Suction & Delivery Connection | ANSI B16.5 - Class 150, DIN 2501, BS4504 - PN16, BSP or NPT* | |
| Shaft Seal | Single (TB/RA) & Double (DROTT) Mechanical Seals | |
| Bearings | Rolling Element Bearings | |
| Lubrication | Grease / Oil | |
| Motor Compatibility | IS 1231, IEC 72-1, NEMA* | |
*Available On Request
