Features:

• High Purity Demineralized Water
•  Two Column Principle Cation - Anion
• Co-Current & Counter Current Systems
• Fully Automatic & Manual Units
• Circulation loop to unwanted regeneration
•  Feed Water Cartridge or Bag Filtration
• Availability for Low to High Consumption
• Skid Mounted, Compact Design
• Continous Quality Monitoring
• Isolated or In-Built Regeneration Tank Skid

Principle: The unit contains a mixture of cation & anion resin through which water passes from top to bottom allows
exchange of both types of ions from water to the resin thereby reducing the salt content & conductivity.
Regeneration: The regeneration takes place after cation & anion resins separation with Acid & Caustic lye & are air mixed for
water production.
Automation: The valves are pneumatic actuated with PLC Panel integrated with Conductivity controller to initiate the
regeneration & all other operations automatic. Choice between Volume, Conductivity or Timing selection is available
Competitive: A Mixed Bed unit is having high capacity for polishing of demineralized water, producing the high quality water
at a very low cost per litre of water for medium quantity of water consumption.

No regeneration takes place results in the greater Convenience since
storage & handling of Acid and Caustic Flakes or lye is avoided. The unit
frame can be constructed individual or in combination with the two bed
demineralizaed water unit.

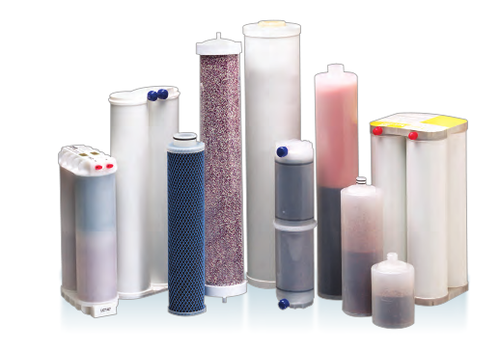

We supply Purolite ion exchange cartridges who are at the forefront in ion exchange resin technology and manufactures
several hundred varieties of resins. As a result, we have carefully selected the best performing product or combination of
products that allow us to optimize cartridge performance. The end result is that Purolite provides a family of products that
are engineered to meet the strictest quality requirements of today's most demanding applications.

3 Separation Systems is water treatment plant manufacturing organization dedicated to offer customers the superior
commercial, industrial and medical reverse osmosis systems. Our goal is to provide the most advanced system with proven
components, a better engineered and tailor made for each & individual client. Our experience enables us to manufacture
major items in-house to ensure system reliability and a proven product you can trust.

SAND FILTER:
Sand filtration is one of the oldest wastewater treatment technologies known. If properly designed, constructed, operated
and maintained, a sand filter produces a very high quality effluent. Sand filters are beds of granular material, or sand,
drained from underneath so that pretreated water and wastewater can be treated, collected and distributed to the land
application system.
CARBON FILTER:
Carbon filters uses Granular activated charcoal removes Colours, Bad Odours, Dissolved Organic impurities and other
chemicals that are dissolved in water passing through a filter containing GAC by trapping the chemical in the GAC. However,
other chemicals, like sodium or nitrate, are not attracted to the carbon and are not removed. Eventually, the ability of the
GAC to bind and remove chemicals is used up and new, or regenerated, GAC is needed.

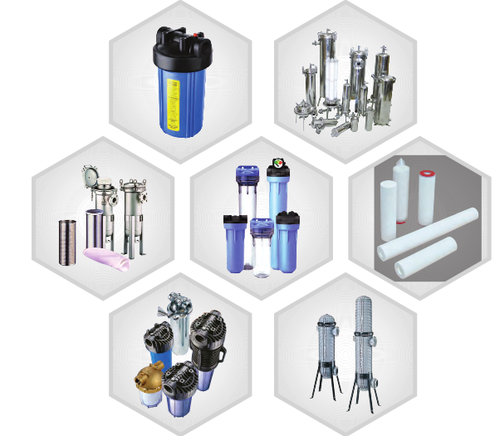

A device made of housing and a removable cartridge
(element) for fluid filtration. Elements can be cleanable and
reusable or disposable.
Cartridges is a medium due to which filtration happens &
Cartridge Filter Housing is a structure in which cartridge
gets placed. Both Comes in different types.

When water contains a significant amount of calcium and
magnesium, it is called hard water. Hard water is known to clog
pipes and to complicate soap and detergent dissolving in water.
Water softeners are specific ion exchangers that are designed to
remove ions, which are positively charged. Softeners mainly
remove calcium (Ca2+) and magnesium (Mg2+) ions. Calcium
and magnesium are often referred to as hardness minerals'.
Softeners are sometimes even applied to remove iron. The
softening devices are able to remove up to five milligrams per
liter (5 mg/L) of dissolved iron.
